Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

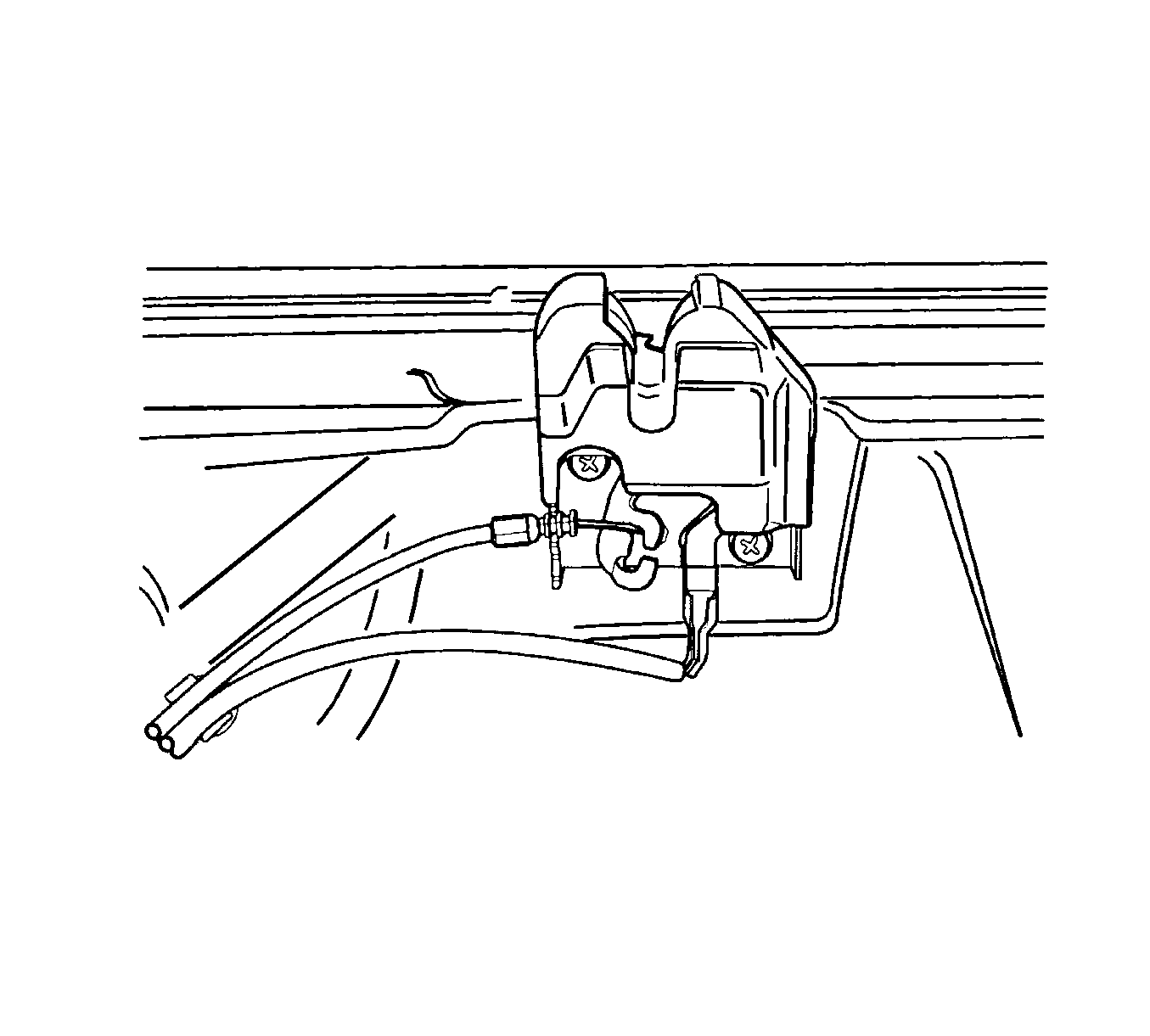

    Fig 1: View of Cable From Lock
    GM1252089Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the screws and the luggage compartment lock.
  3. Disconnect the electrical connector.
  4. Disconnect the lock rod.
  5. Disconnect the cable from the lock.
