Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

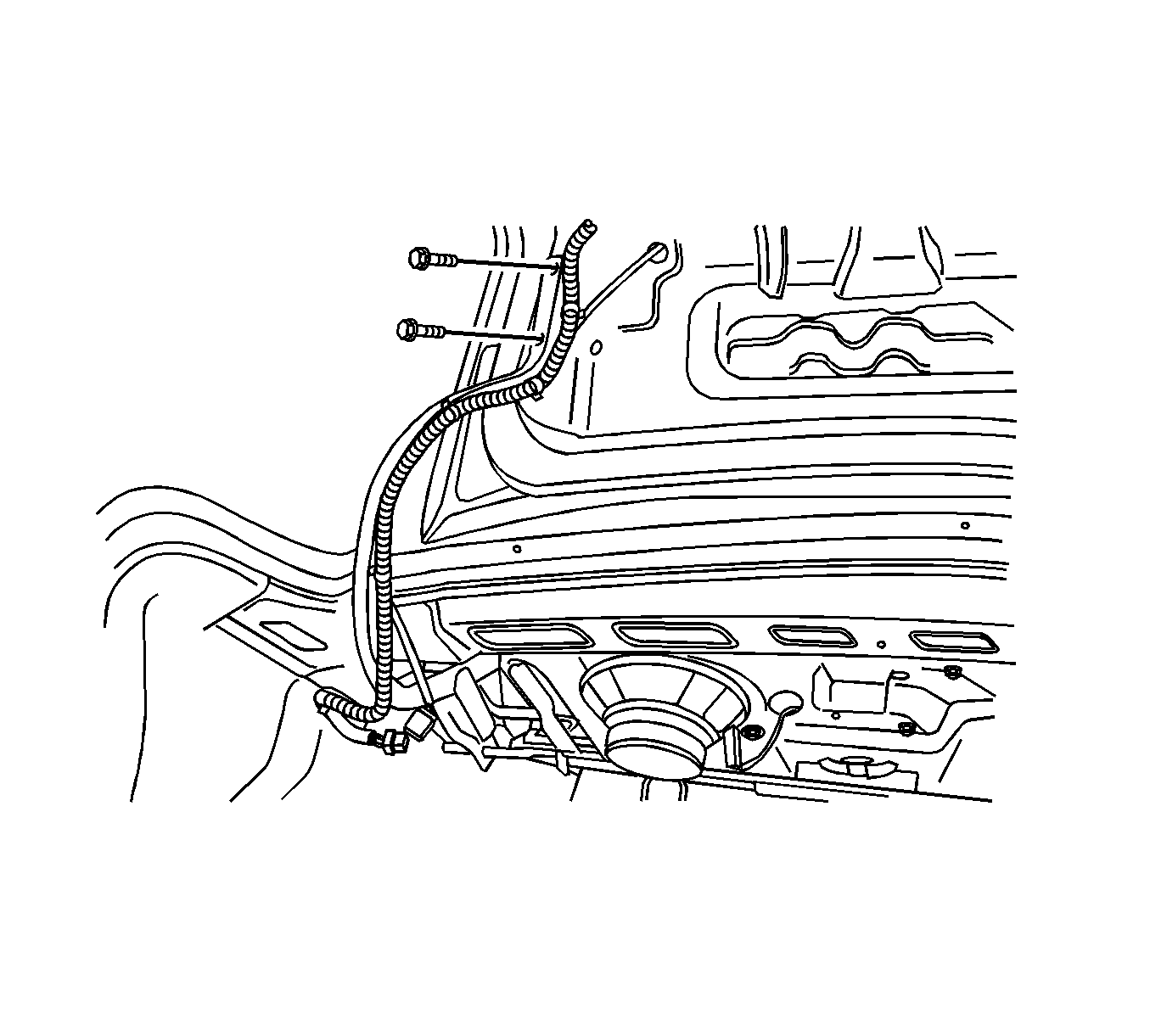

    Fig 1: View of Bolts and Rear Deck Lid
    GM1252081Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector.
  3. Disconnect the electrical harness from the rear deck lid hinge arm.
  4. Remove the bolts and the rear deck lid.
