Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

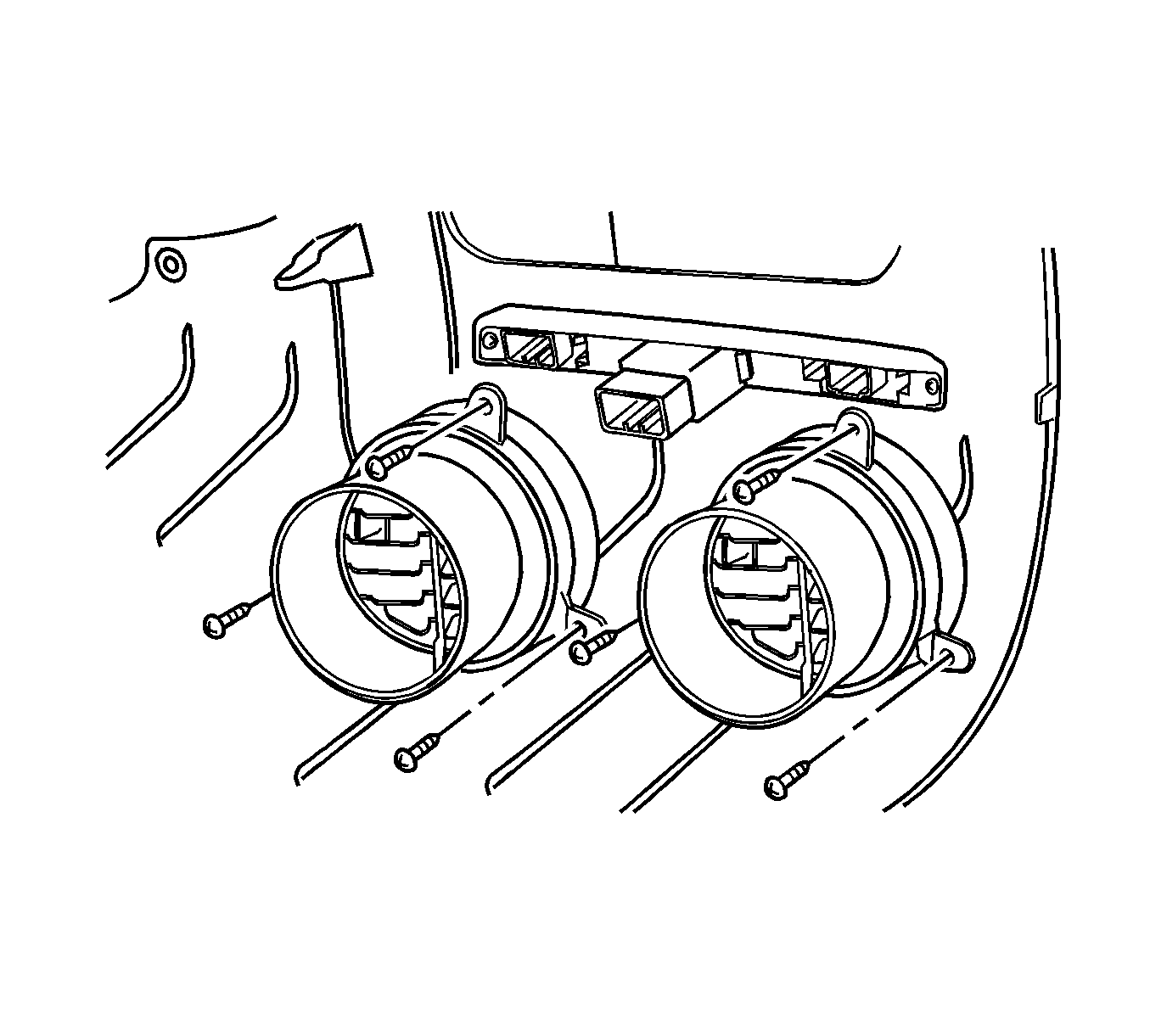

    Fig 1: Air Deflectors & Screws
    GM1248448Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the air deflectors with the screws.

    Tighten:  Tighten the air deflector screws to 2 N.m (18 lb in).

  2. Install the instrument panel center upper cover. Refer to Instrument Panel Center Trim Panel Replacement (Hatchback) .
  3. Connect the negative battery cable.
