Clutch Rotor and/or Bearing Removal (SP10 Compressor): Removal

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

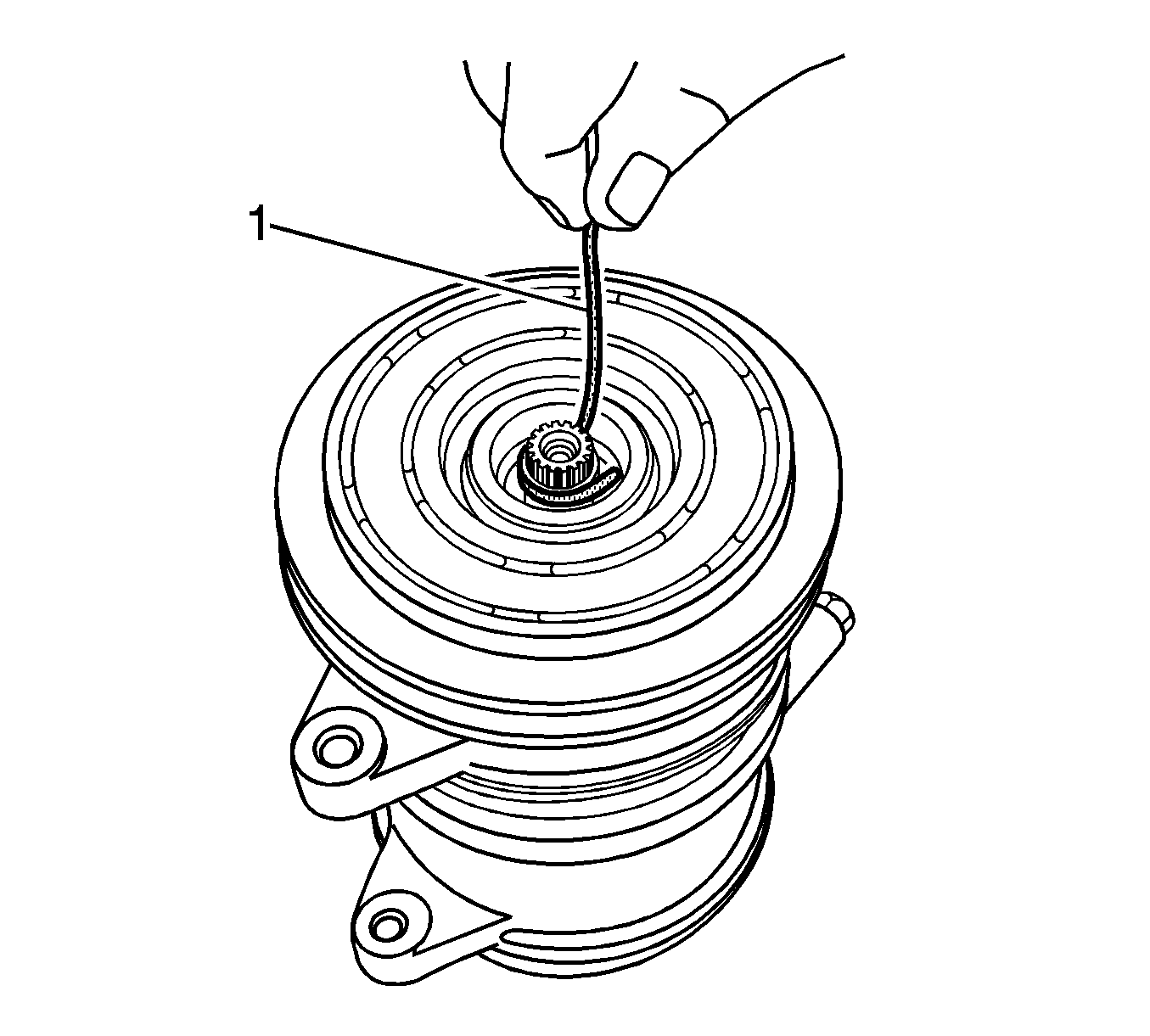

    Fig 1: O-Ring Remover
    GM1887000Courtesy of GENERAL MOTORS CORP.
  1. Remove the clutch and drive assembly. Refer to Compressor Clutch Plate and Hub Assembly Removal (V5 Compressor)  or Compressor Clutch Plate and Hub Assembly Removal (SP10 Compressor) .
  2. Remove the shims using the J 9553-01  O-ring remover. See Special Tools .
    3. Fig 2: Snap Ring Pliers
    GM1887003Courtesy of GENERAL MOTORS CORP.
  3. Remove the pulley ring retainer using the snap ring pliers (1).
  4. Pull the pulley groove with both hands until the pulley and bearing assembly is free.
