Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

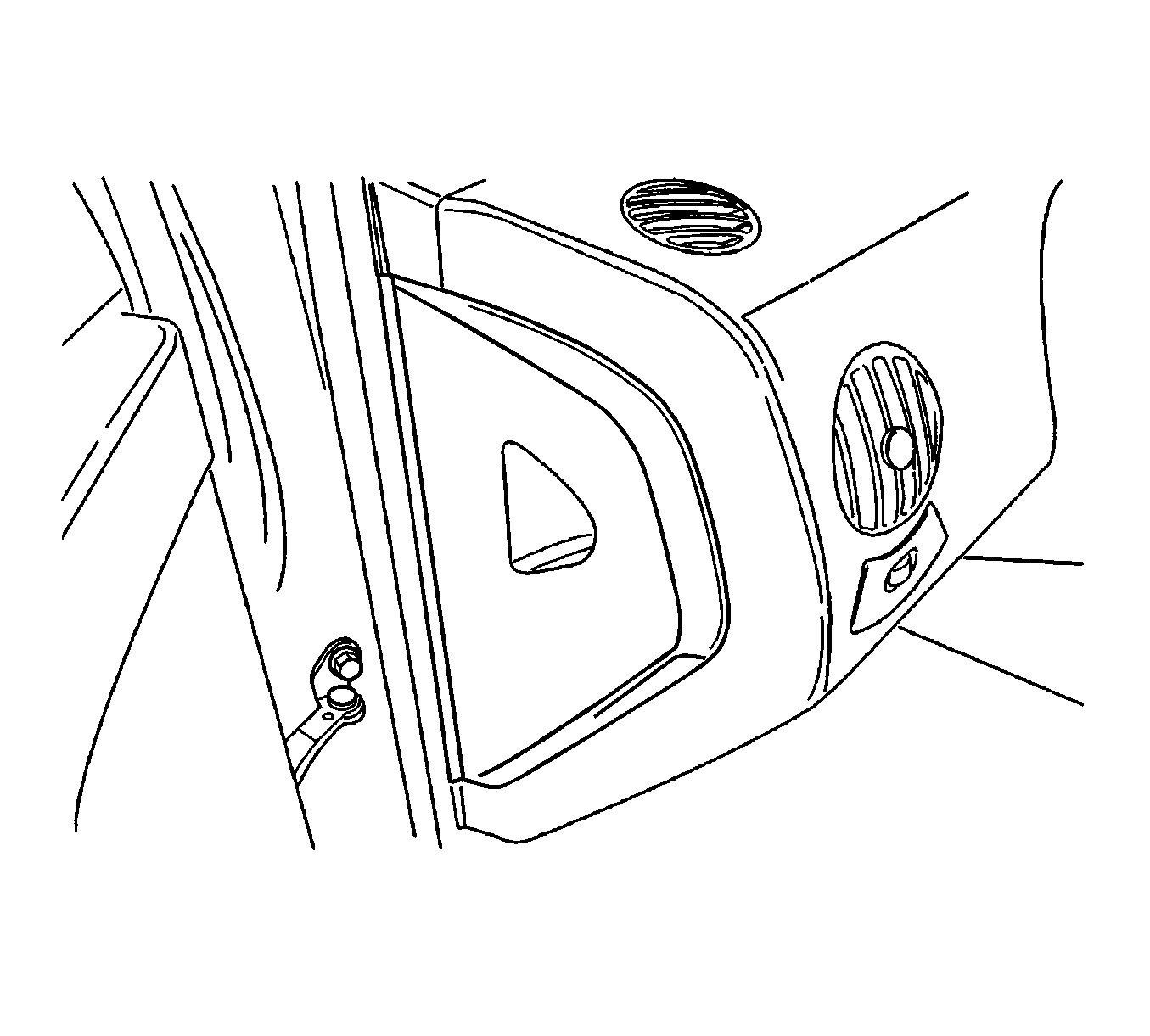

    Fig 1: Instrument Panel Fuse Cover
    GM1251912Courtesy of GENERAL MOTORS CORP.
  1. Align the relay contacts with the relay terminal slots.
  2. Push the relay firmly into the base. The relay must be seated and flushed with the base edge.
  3. Replace the instrument panel access panel.
  4. Replace the remote mirror/lighting control panel.
  5. Connect the negative battery cable.
