Air Conditioning Clutch Coil Removal (SP10 Compressor)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Snap Ring Pliers
    GM1887043Courtesy of GENERAL MOTORS CORP.
  1. Remove the clutch and drive assembly. Refer to Compressor Clutch Plate and Hub Assembly Removal (V5 Compressor)  or Compressor Clutch Plate and Hub Assembly Removal (SP10 Compressor) .
  2. Remove the pulley and bearing assembly. Refer to Clutch Rotor and/or Bearing Removal (V5 Compressor)  or Clutch Rotor and/or Bearing Removal (SP10 Compressor) .
  3. Remove the coil retainer using the snap ring pliers (1).

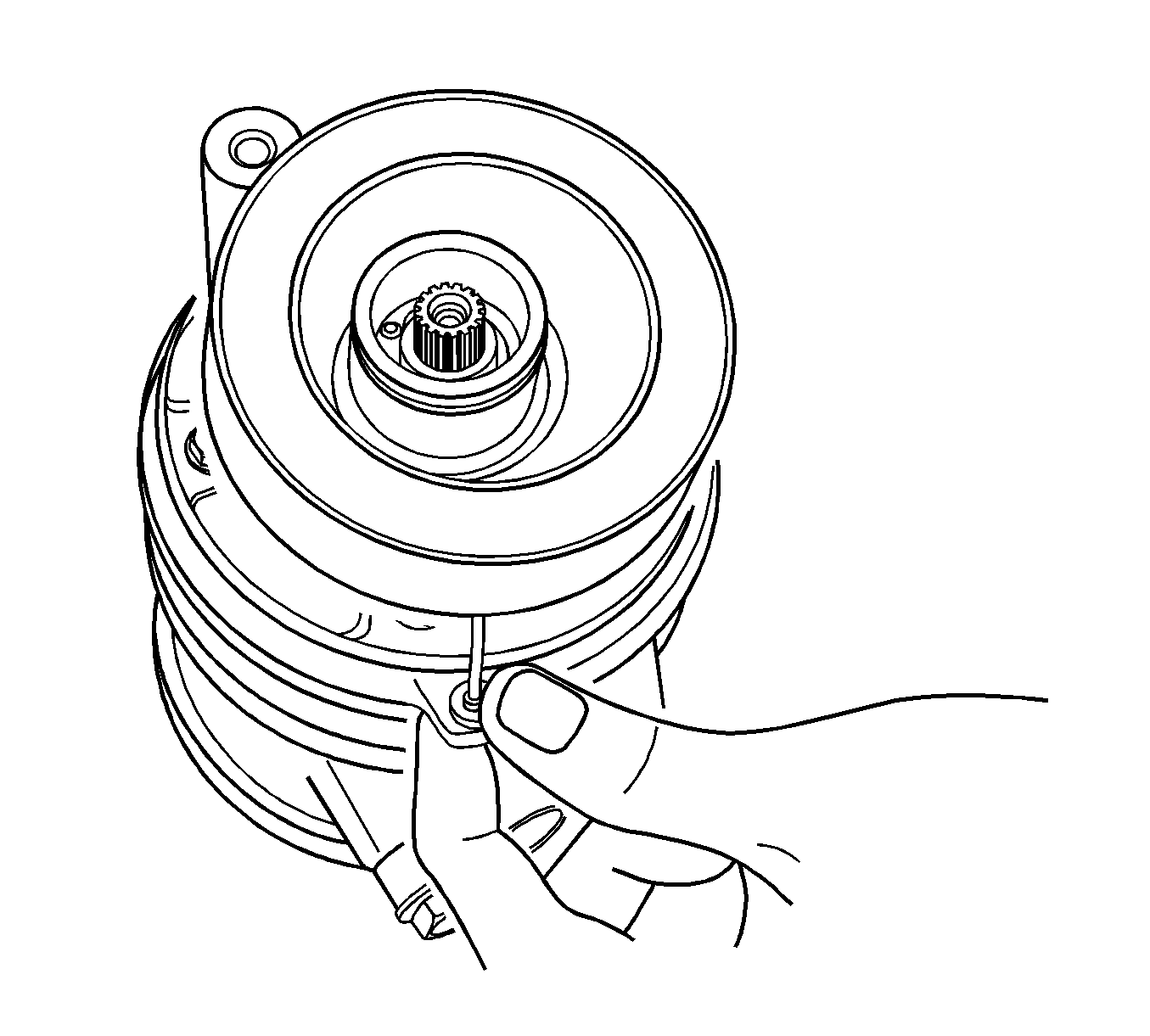

    4. Fig 2: Coil And Housing Assembly
    GM1887047Courtesy of GENERAL MOTORS CORP.
  4. Remove the coil and housing assembly.
