Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

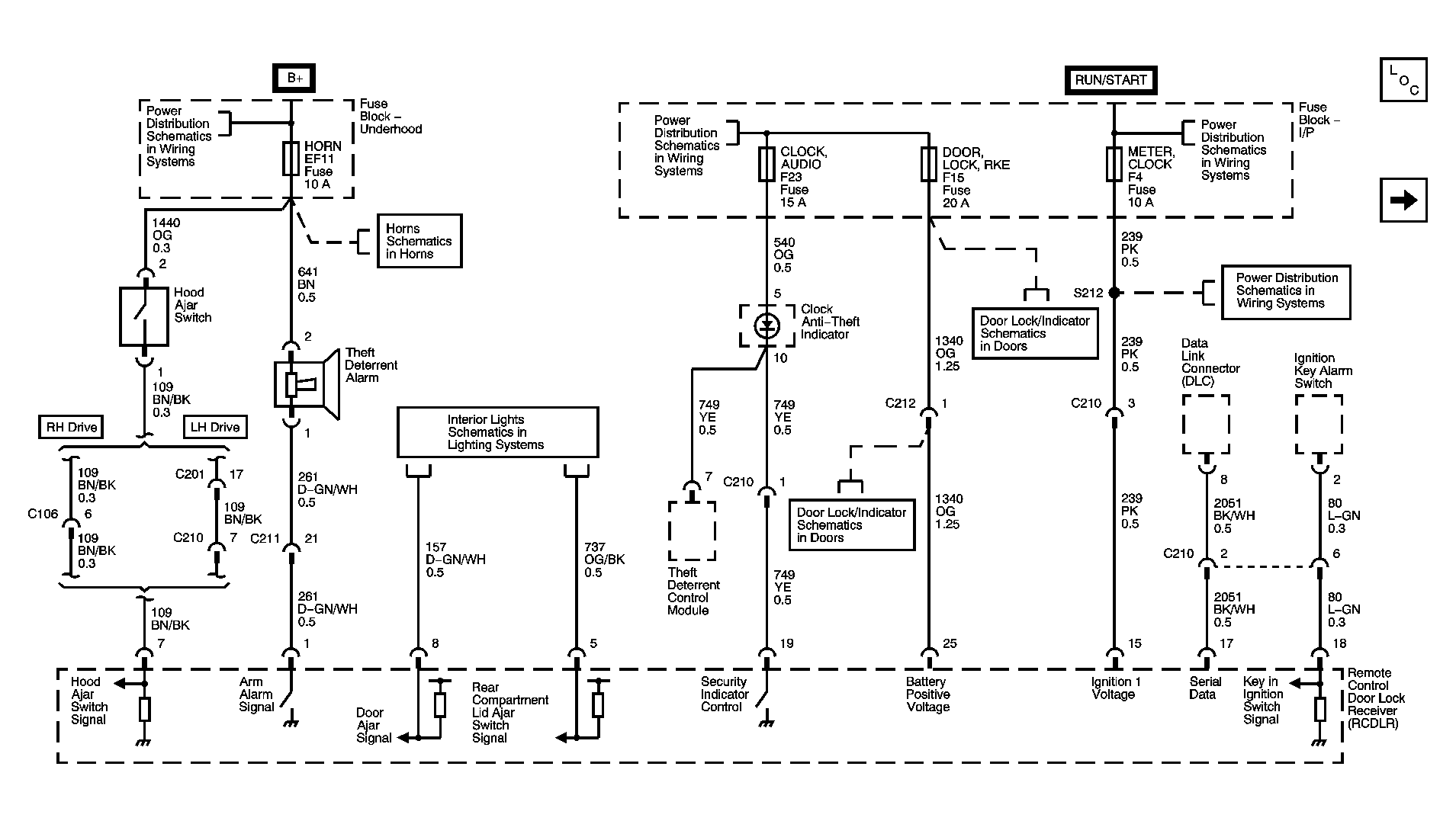

Fig 1: Content Theft Deterrent and Remote Keyless Entry Power and Ground Schematics

Courtesy of GENERAL MOTORS CORP.

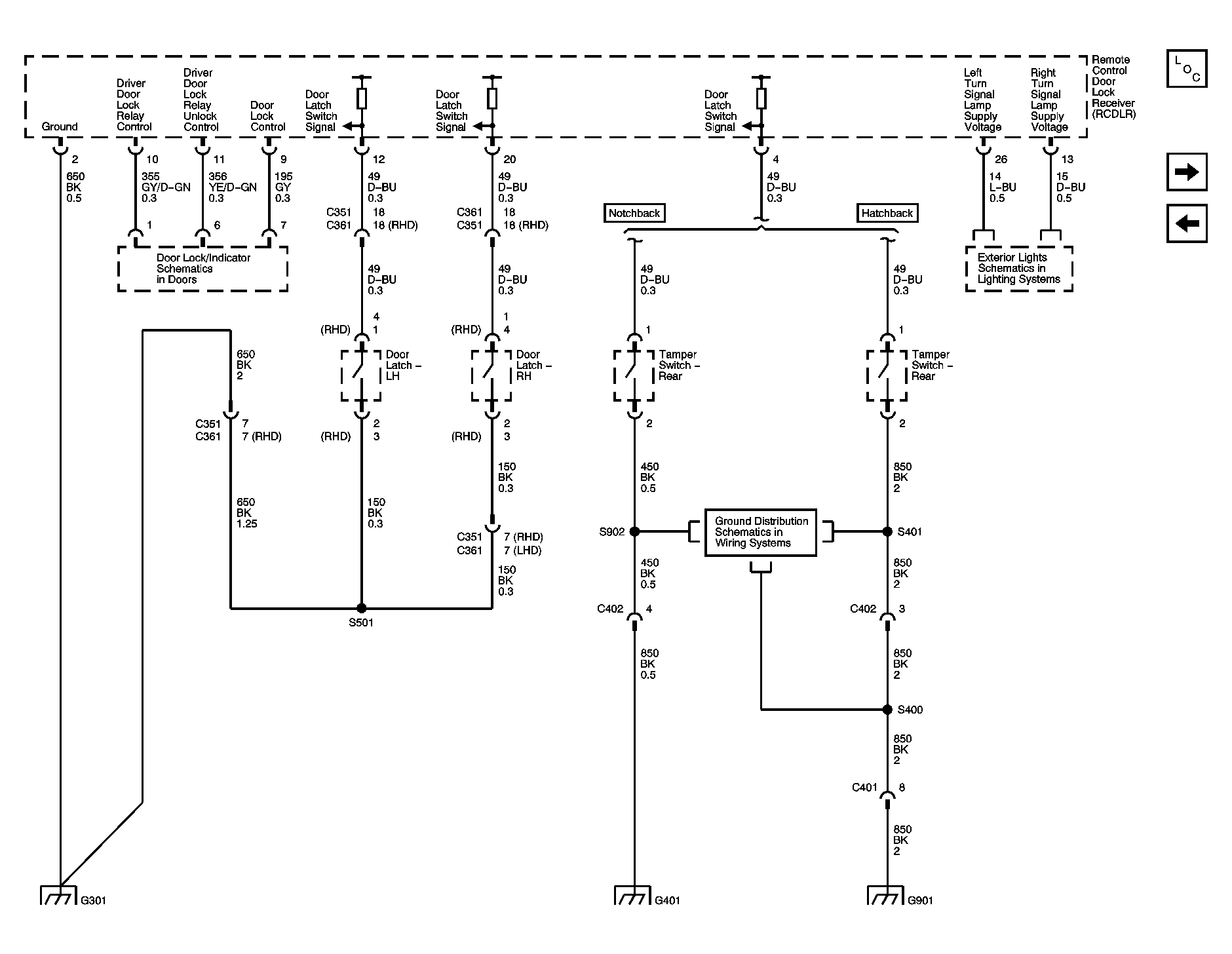

Fig 2: Door Latches and Ajar Switches Schematics

Courtesy of GENERAL MOTORS CORP.

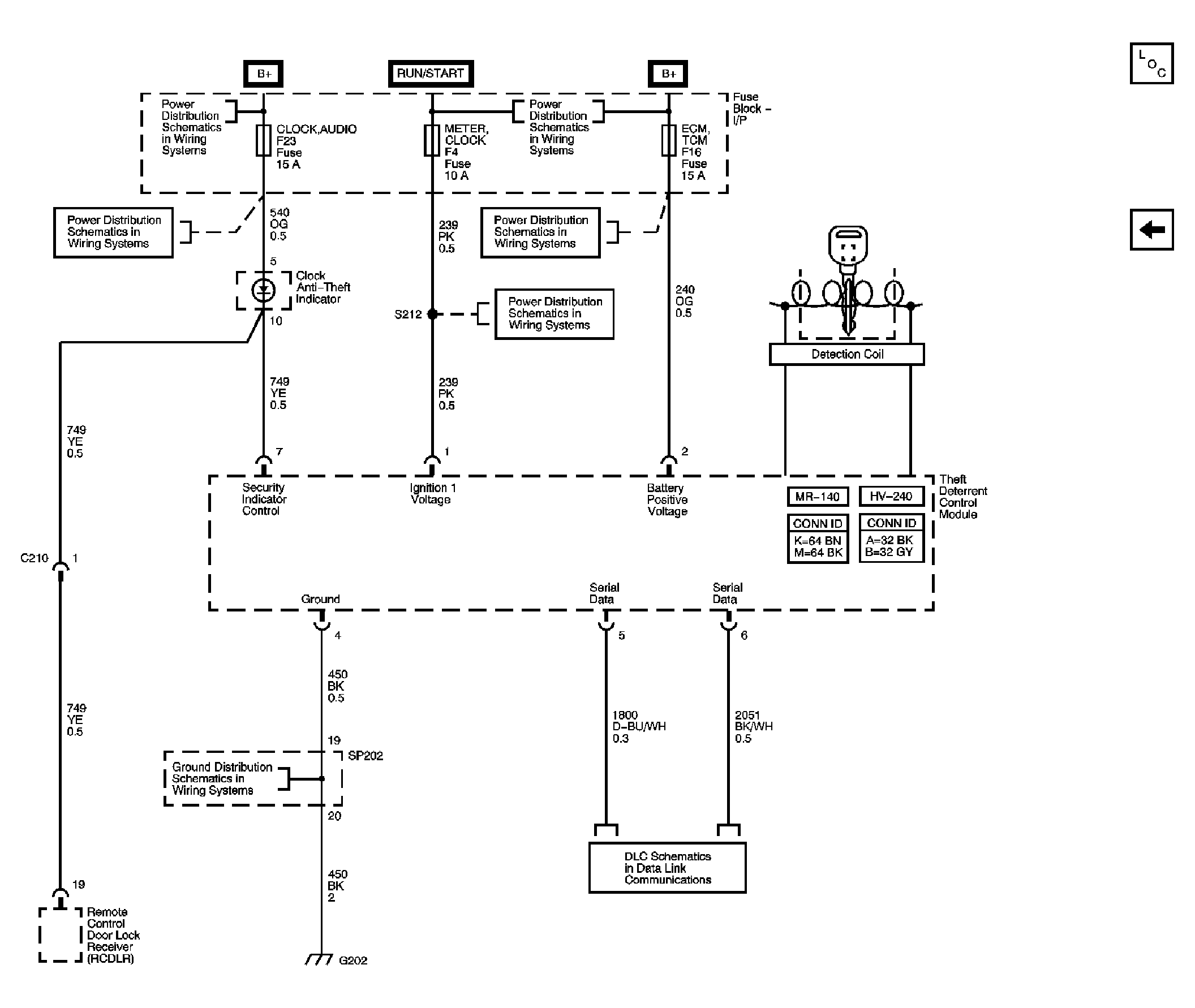

Fig 3: Vehicle Theft Deterrent (Immobilizer) Schematics

Courtesy of GENERAL MOTORS CORP.
