Outside Mirror Schematics

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

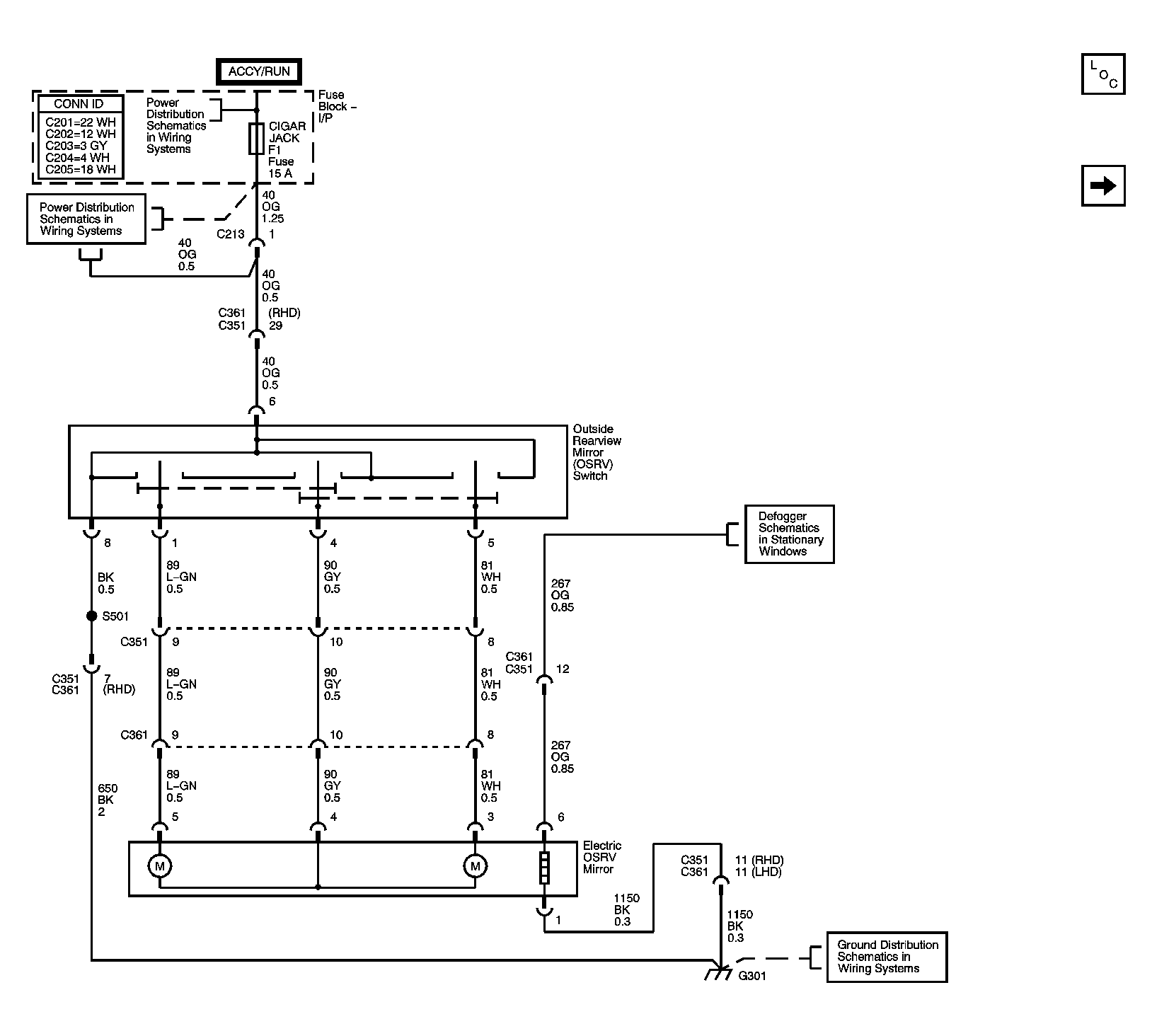

Fig 1: Power Mirrors - Passenger Only DBK Schematics

Courtesy of GENERAL MOTORS CORP.

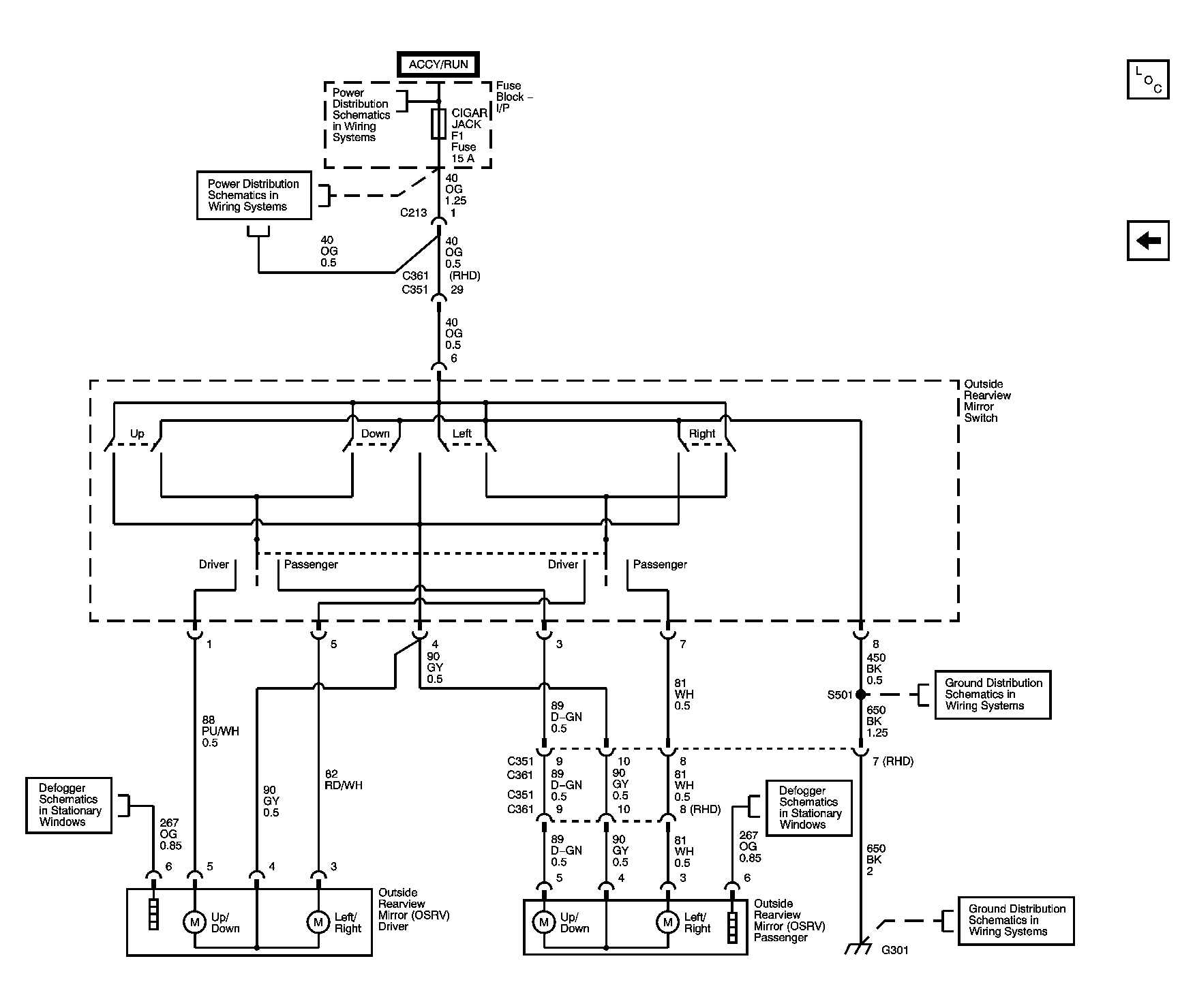

Fig 2: Power Mirrors - Dual Schematics

Courtesy of GENERAL MOTORS CORP.
