Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

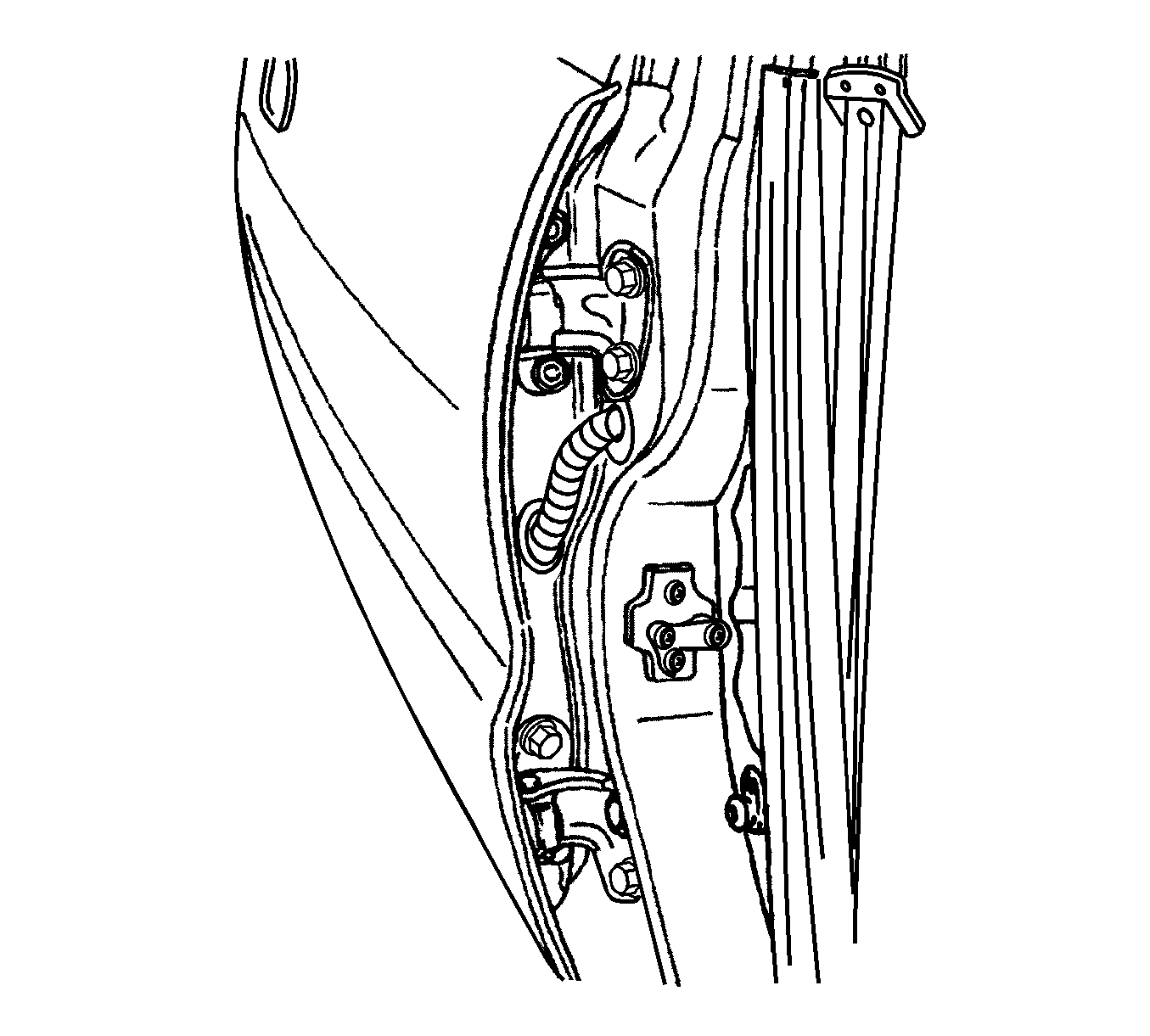

Fig 1: View of Rear Door and Bolts
GM1248291Courtesy of GENERAL MOTORS CORP.

With the aid of another technician, remove the bolts and the hinge from the door and the body.
