Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

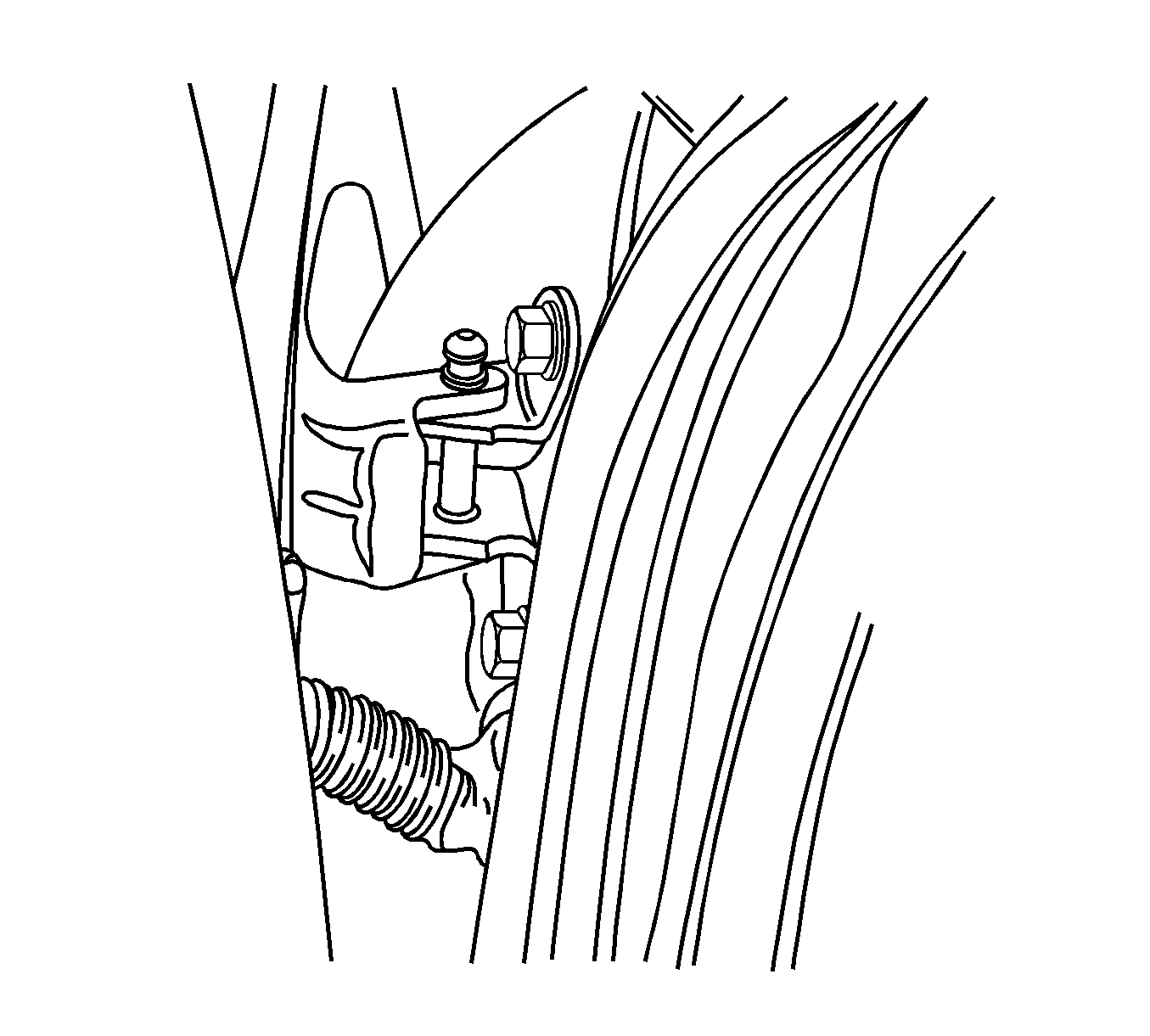

    Fig 1: View of Front Door and Bolts
    GM1248289Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the door hold open link. Refer to Door Check Link Replacement .
  3. Remove the body-to-door rubber grommet and the electrical wires.
  4. With the aid of another technician, remove the bolts and the front door.

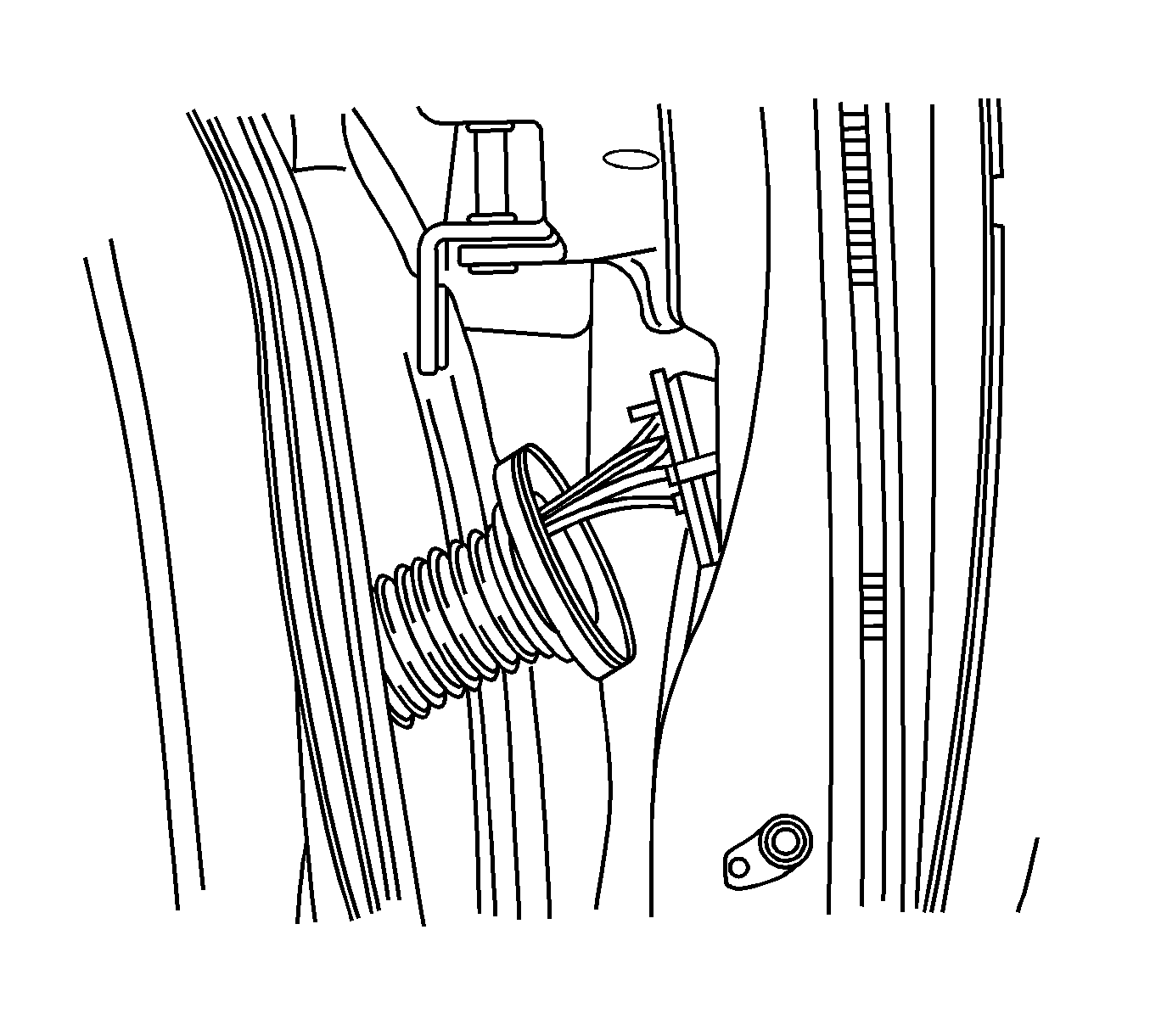

    5. Fig 2: View of Body-To-Door Rubber Grommet and Electrical Connector
    GM1248290Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the body-to-door rubber grommet and the electrical connector.
