Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

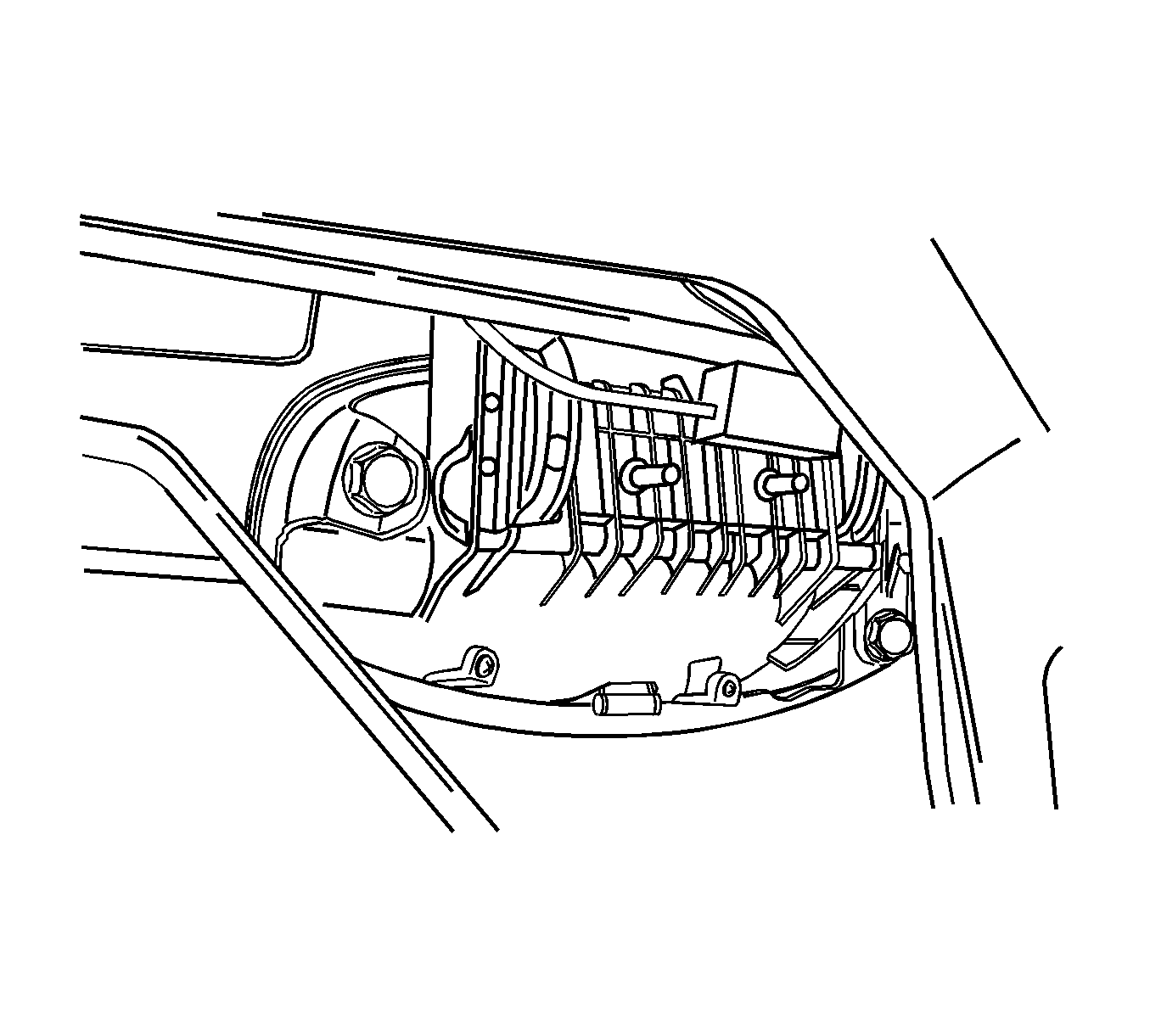

    Fig 1: View of Door Handle and Lock Rods
    GM1248282Courtesy of GENERAL MOTORS CORP.
  1. Remove the door seal trim. Refer to Water Deflector Replacement - Door .
  2. Disconnect the outside door handle and the lock rods.
  3. Remove the bolts and the door handle.
