1st-2nd Gear Shift Shaft Assembly

WARNING: This page is about a different car, the 2008 Pontiac Wave. However, it is still accessible from the selected car via links, so may be relevant.

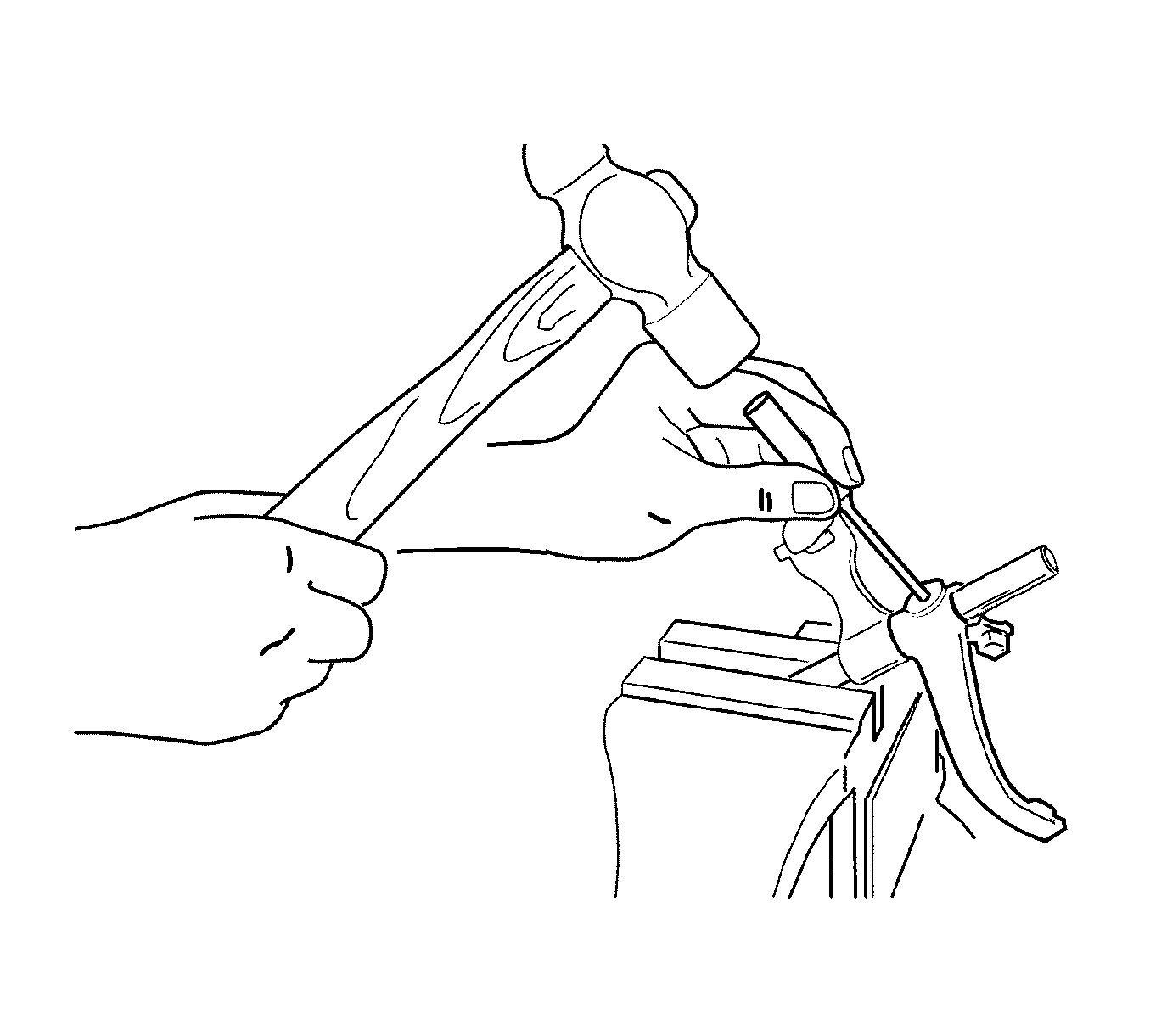

    Fig 1: Removing 1st-2nd Gear Fork Pin Using A Pin Punch & A Hammer
    GM1224157Courtesy of GENERAL MOTORS CORP.
  1. Remove the 1st-2nd gear shift shaft assembly.
  2. Remove the gear unit. Refer to Transmission Disassemble .
  3. Remove the each shift shaft assembly from the gear unit.
  4. Fix the shift shaft assembly to a vise with protector.
  5. Remove the 1st-2nd gear fork pin using a pin punch and a hammer.
  6. Remove the 1st-2nd gear shift fork.
    7. Fig 2: 1st-2nd Gear Shift Yoke & Pin
    GM1241246Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Mark the place and direction of shift fork and yoke to install easily before removing them.
  7. Remove the 1st-2nd gear shift yoke pin using a pin punch and a hammer (1).
  8. Remove the 1st-2nd gear shift yoke (3).
