Input Shaft Disassemble: Disassemble

WARNING: This page is about a different car, the 2008 Pontiac Wave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Input Shaft Right Side Bearing & DT 46494
    GM1223745Courtesy of GENERAL MOTORS CORP.
  1. Remove the gear unit.
  2. Position the bearing to the DT 46494  (2). See Special Tools .
  3. Remove the input shaft right side bearing (1) with press.
  4. Remove the input shaft fifth gear spacer, the left side bearing and the 4th gear.

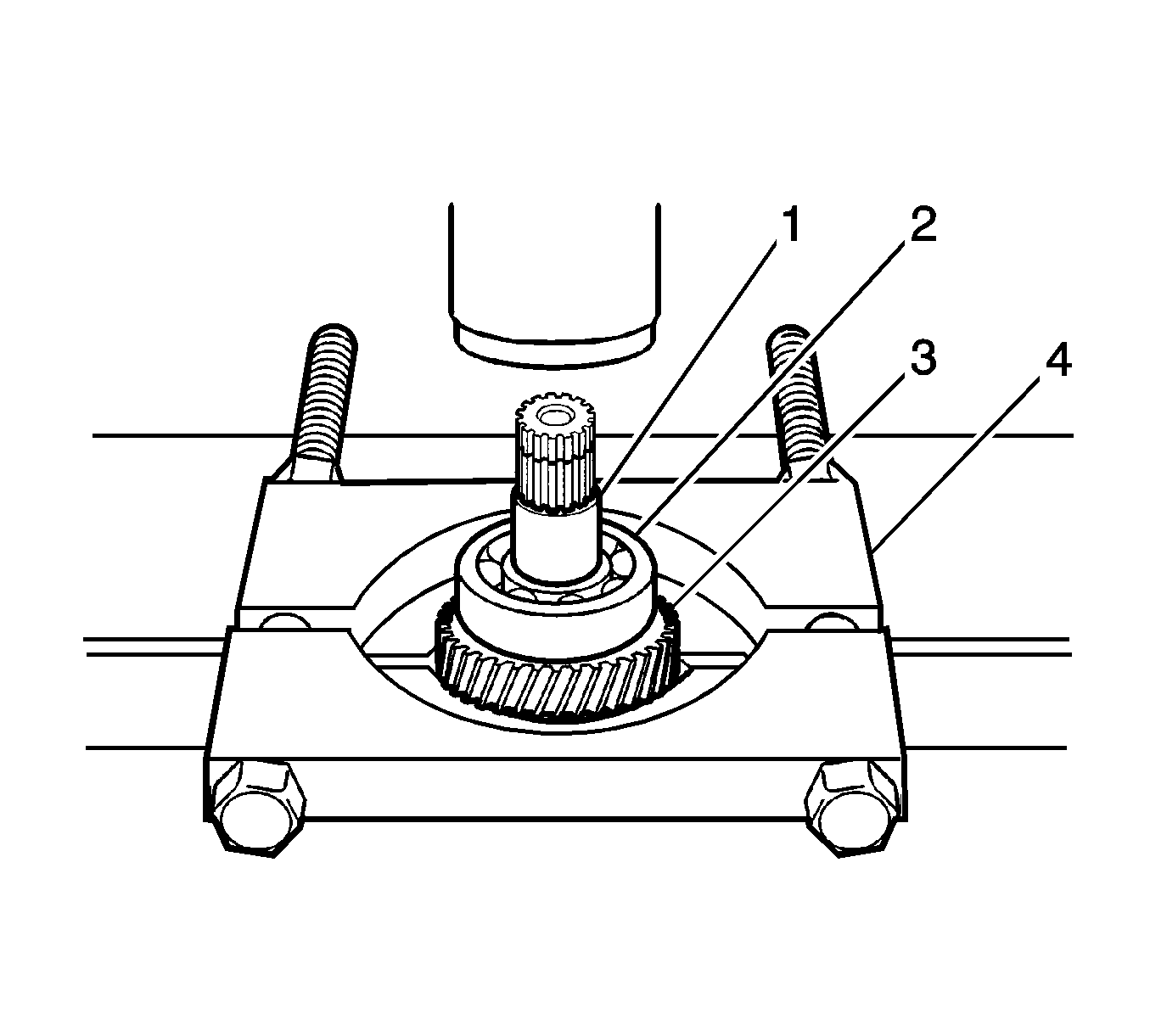

    5. Fig 2: 4th-5th Gear, Spacer & DT 46494
    GM1223763Courtesy of GENERAL MOTORS CORP.
  5. Position the 4th gear to the DT 46494  (4). See Special Tools .
  6. Remove the 5th gear spacer (1).
  7. Remove the left side bearing (2).
  8. Remove the 4th gear (3).

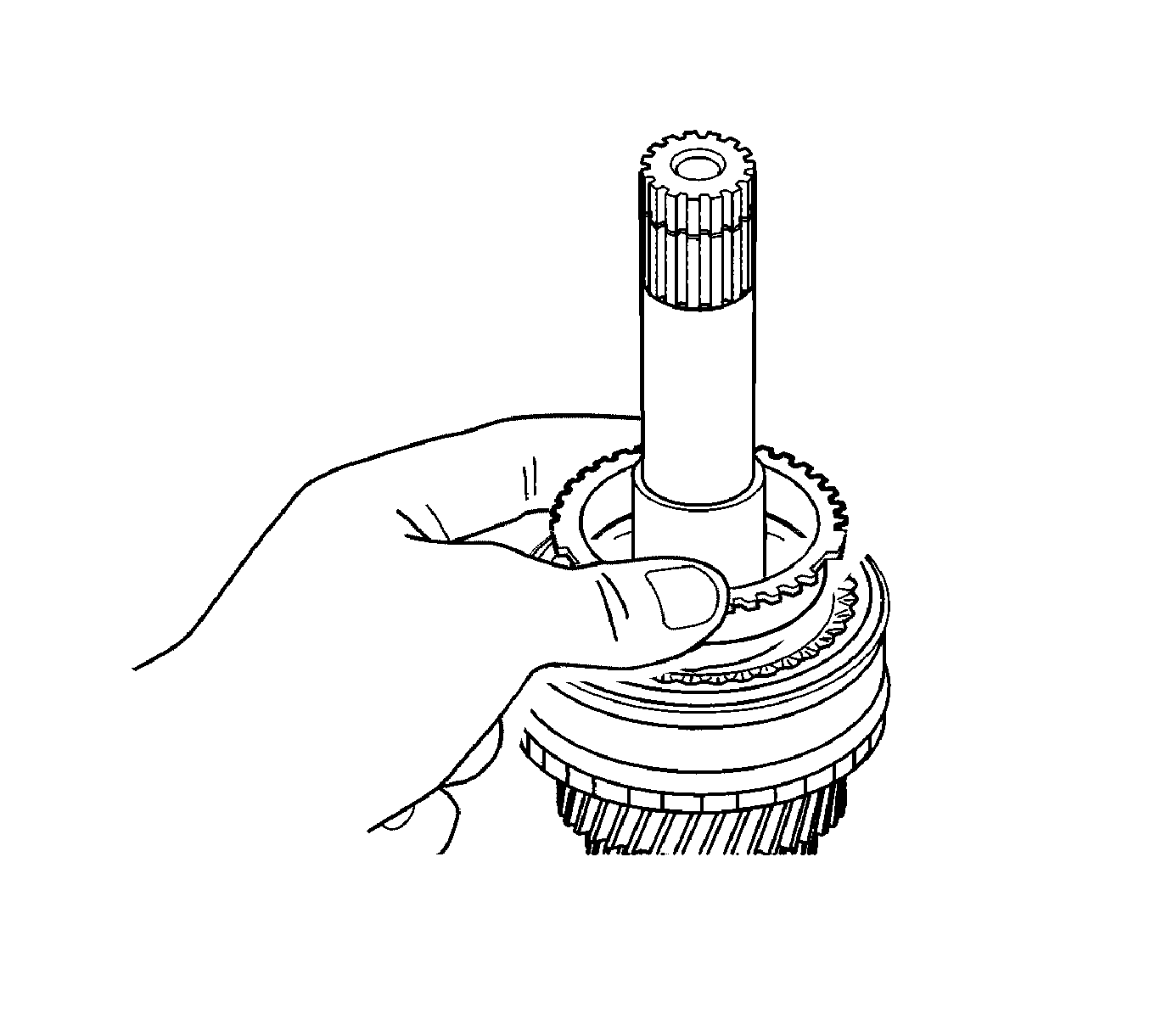

    9. Fig 3: 4th Gear Synchronizer Ring & Wave Spring
    GM1223757Courtesy of GENERAL MOTORS CORP.
  9. Remove the 4th gear bearing.
  10. Remove the 4th gear synchronizer ring and wave spring.

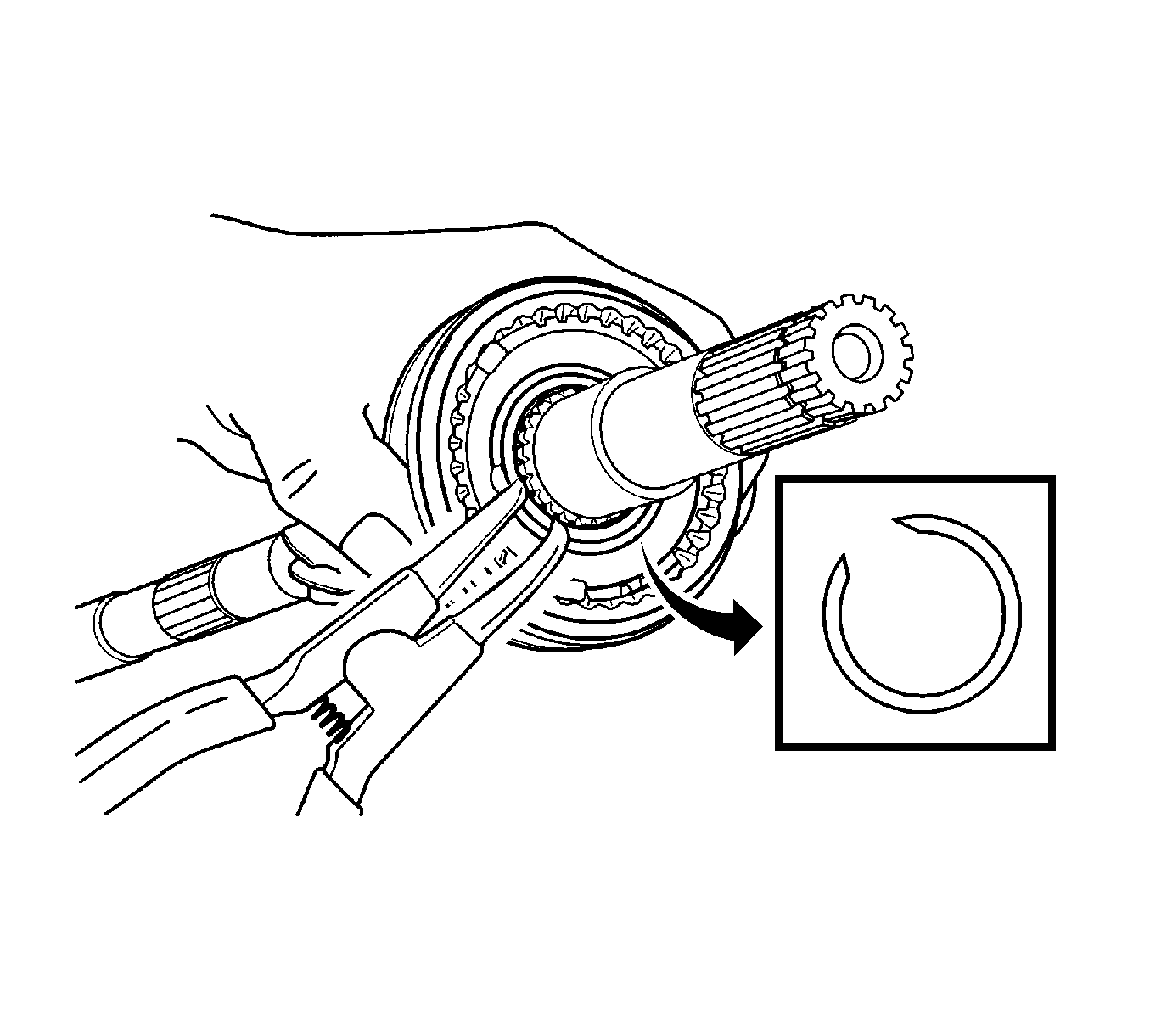

    11. Fig 4: 3rd-4th Synchronizer Circlip
    GM1223752Courtesy of GENERAL MOTORS CORP.
  11. Remove the 3rd-4th synchronizer circlip.

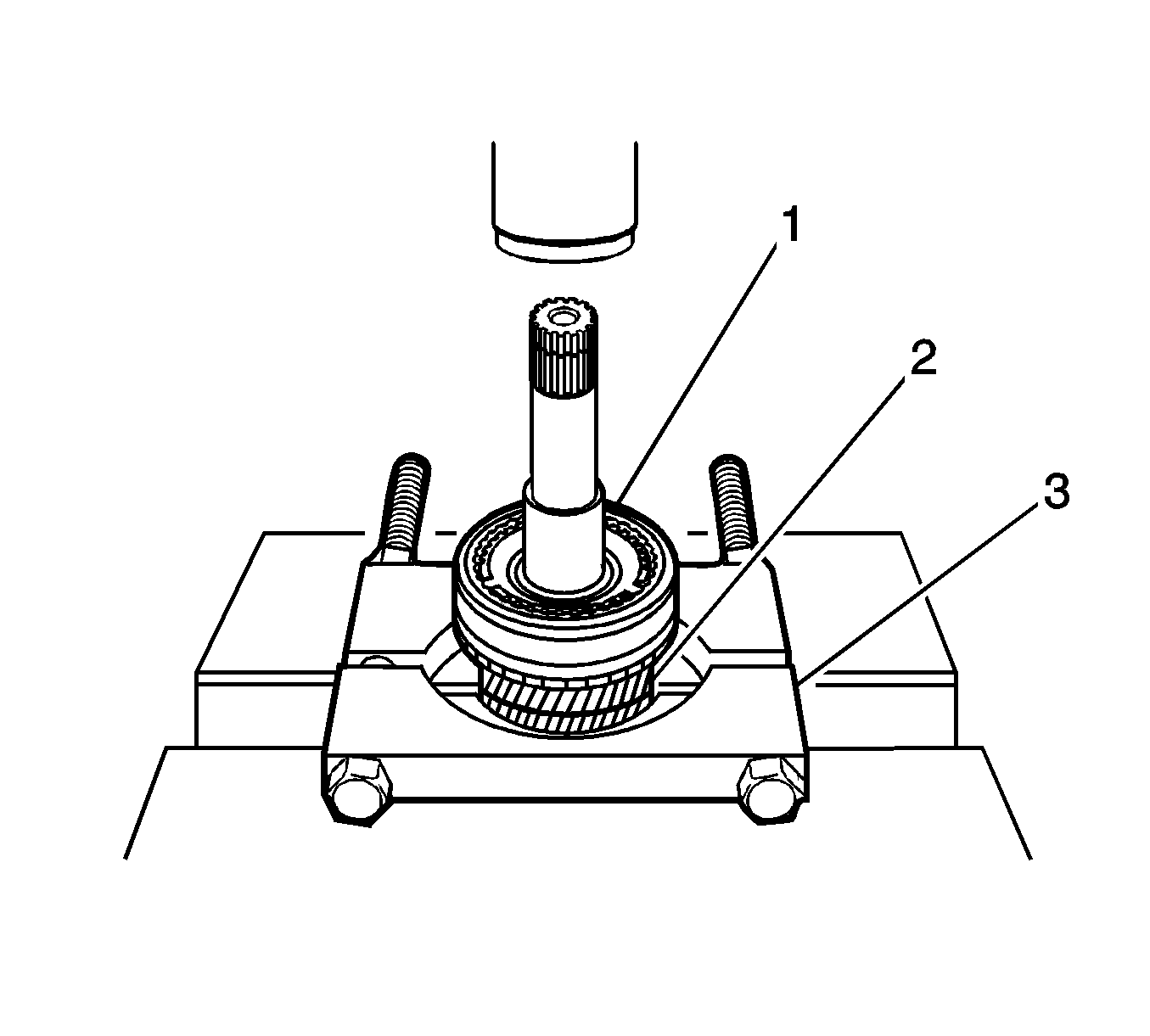

    12. Fig 5: 3rd-4th Synchronizer Hub Assembly, Ring & DT 46494
    GM1223742Courtesy of GENERAL MOTORS CORP.
  12. Position the 3rd gear to the DT 46494  (3). See Special Tools .
  13. Remove the 3rd-4th synchronizer hub assembly (1).
  14. Remove the 3rd gear and synchronizer ring (2).

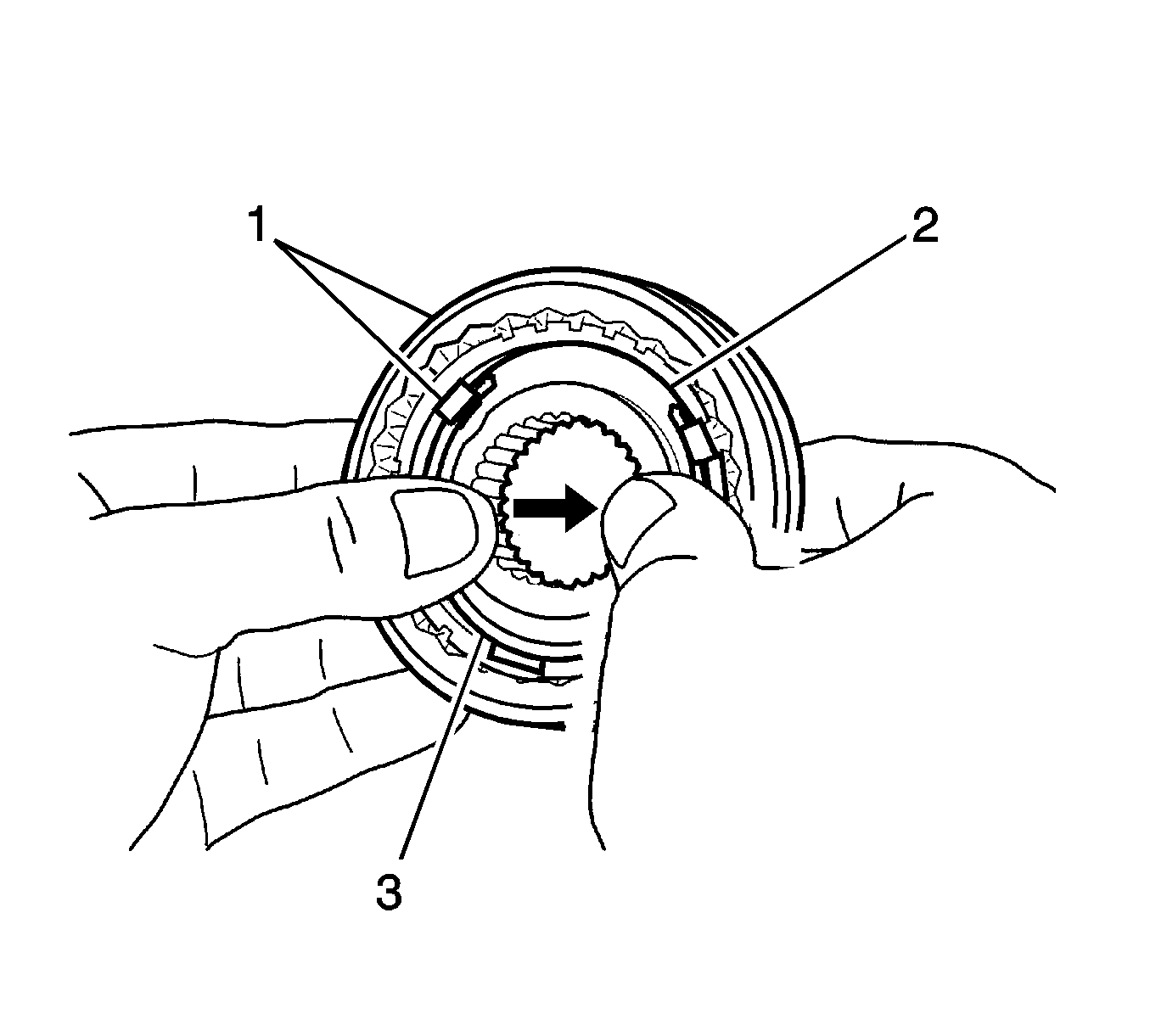

    15. Fig 6: Synchronizer Hub Assembly, Springs, Sleeve & Key
    GM1223777Courtesy of GENERAL MOTORS CORP.
  15. Remove the 3rd-4th synchronizer hub assembly (1).
  16. Remove the synchronizer sleeve and the key (3).
  17. Remove the synchronizer springs (2).
    18. Fig 7: Input Shaft 3rd Gear Bearing
    GM1223785Courtesy of GENERAL MOTORS CORP.
  18. Remove the input shaft 3rd gear bearing (1).
