Disassembly Procedure

WARNING: This page is about a different car, the 2008 Pontiac Wave. However, it is still accessible from the selected car via links, so may be relevant.

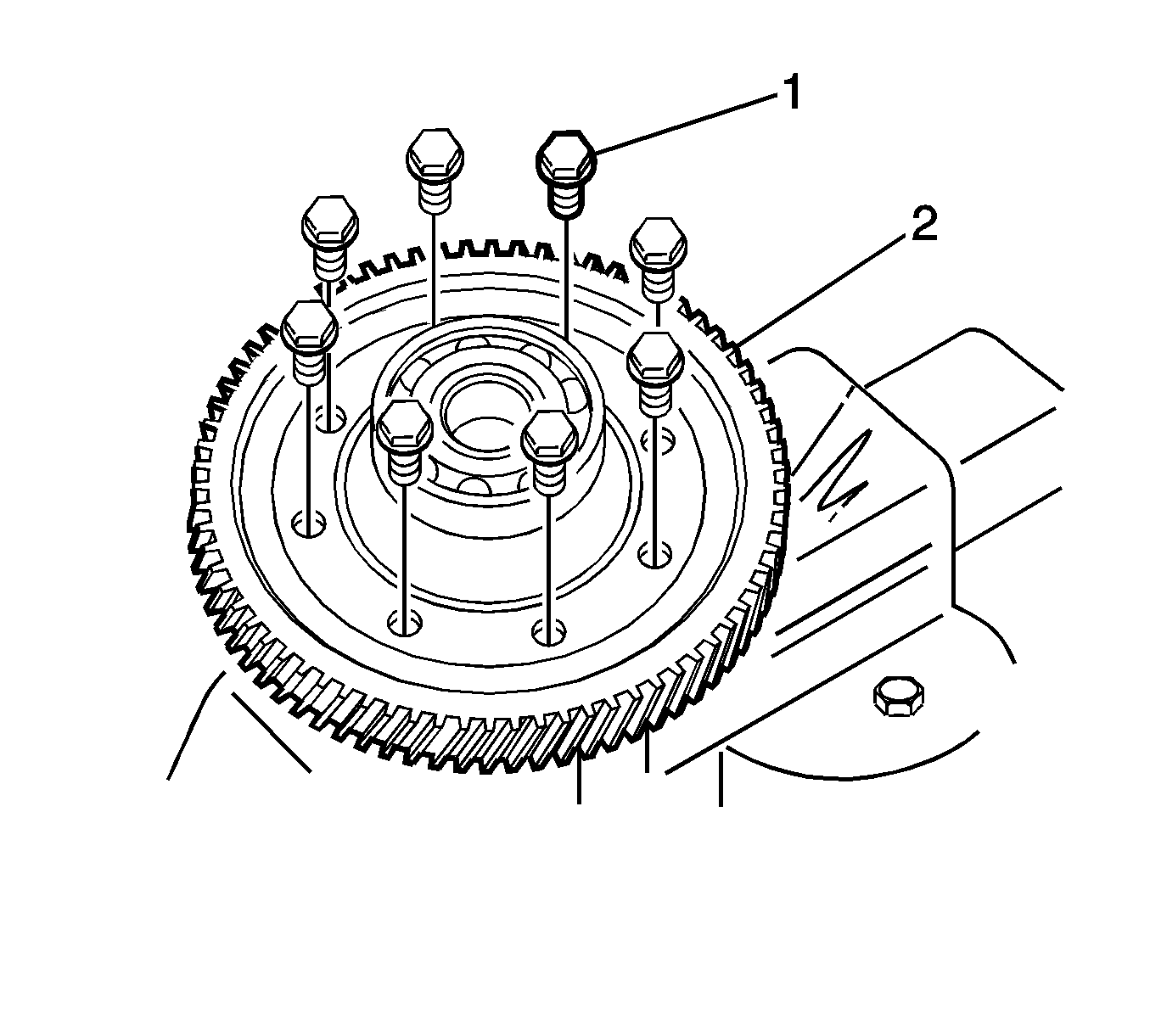

    Fig 1: Differential Ring Bolts & Ring Gear
    GM1224160Courtesy of GENERAL MOTORS CORP.
  1. Remove the differential assembly. Refer to Transmission Disassemble .
  2. Fix the differential assembly to a vise with protector.
  3. Remove the differential ring bolts (1).
  4. Remove the ring gear (2).

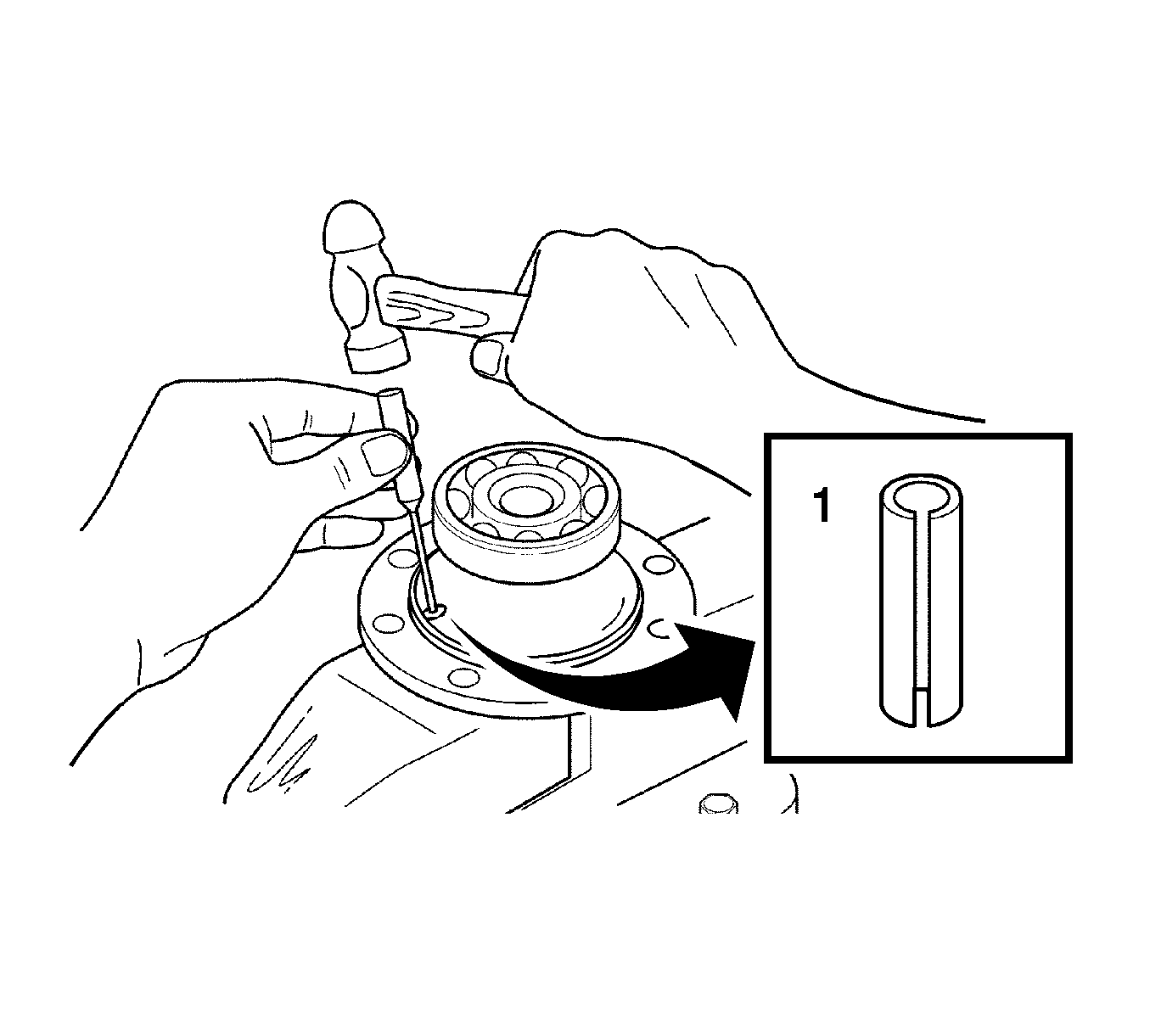

    5. Fig 2: Removing Pinion Gear Pin Using A Pin Punch & A Hammer
    GM1224133Courtesy of GENERAL MOTORS CORP.
  5. Remove the pinion gear pin (1) using a pin punch and a hammer.

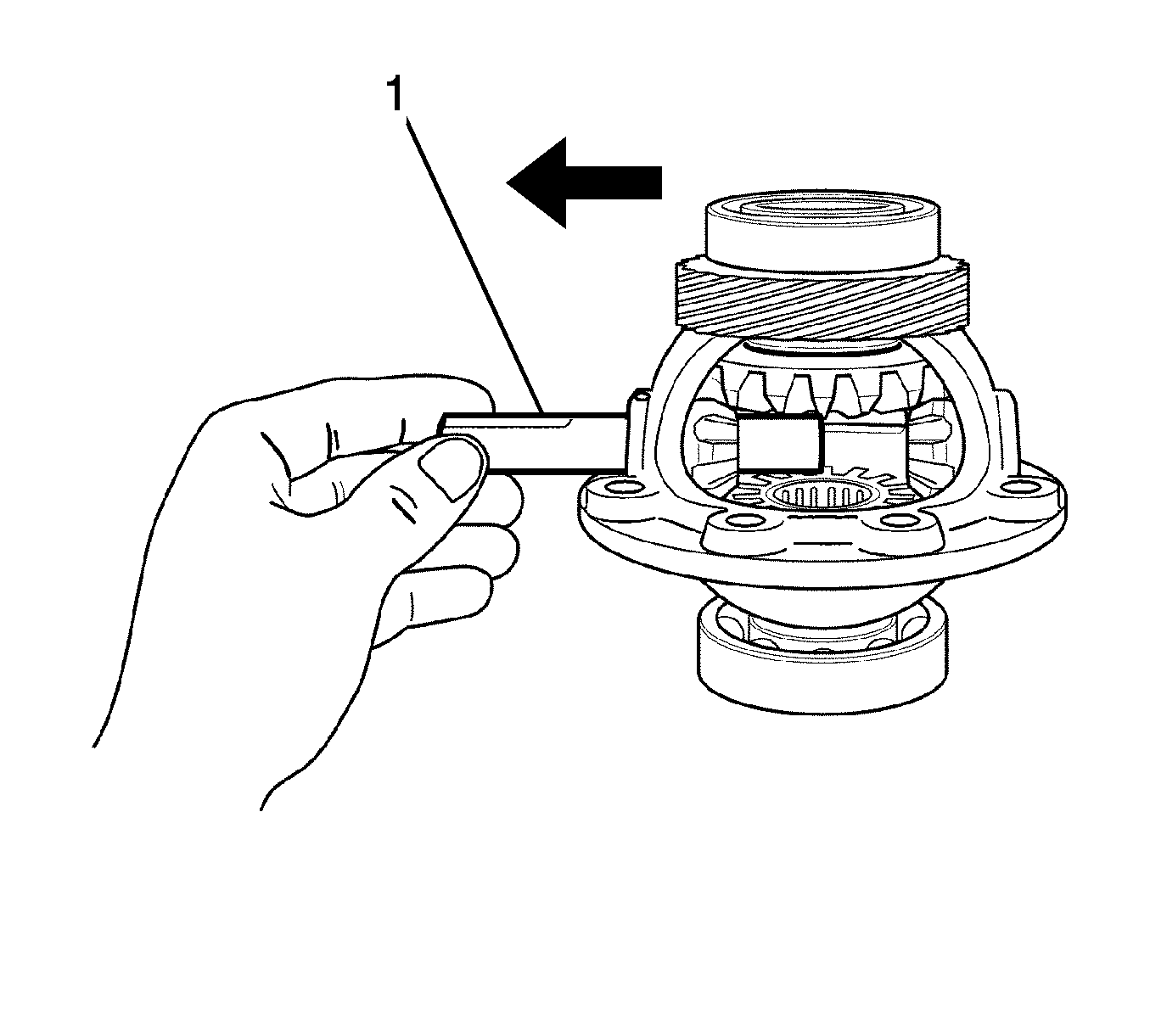

    6. Fig 3: Pinion Gear Shaft & Case
    GM1224147Courtesy of GENERAL MOTORS CORP.
  6. Remove the pinion gear shaft from the case (1).

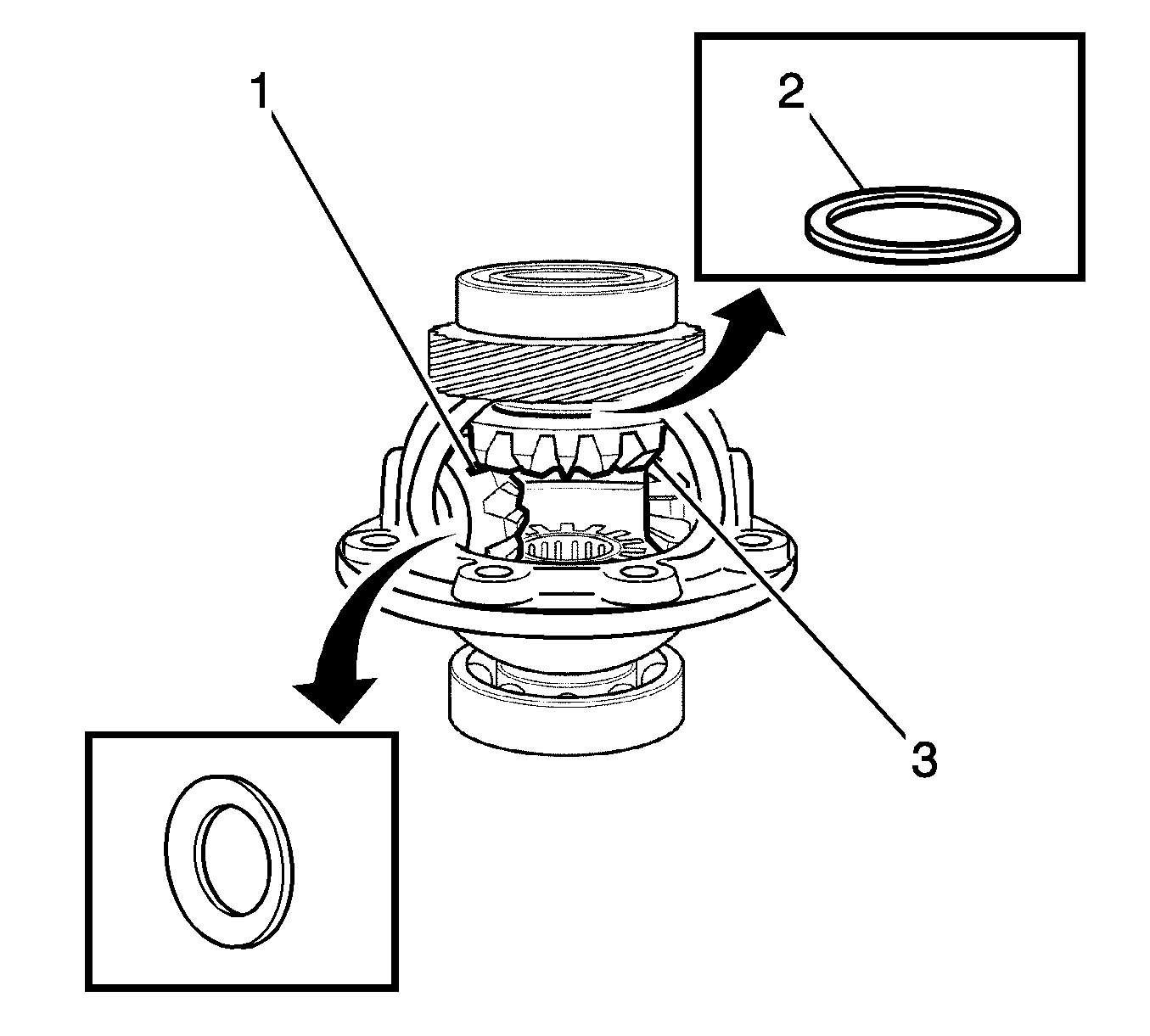

    7. Fig 4: Pinion Gears, Washers & Side Gears
    GM1224155Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Remove the pinion gear and the washer by rotating the side gear.
  7. Remove the pinion gears and the washers (1).
  8. Remove the side gears (3).
  9. Remove the adjust shims from the side gears (2).

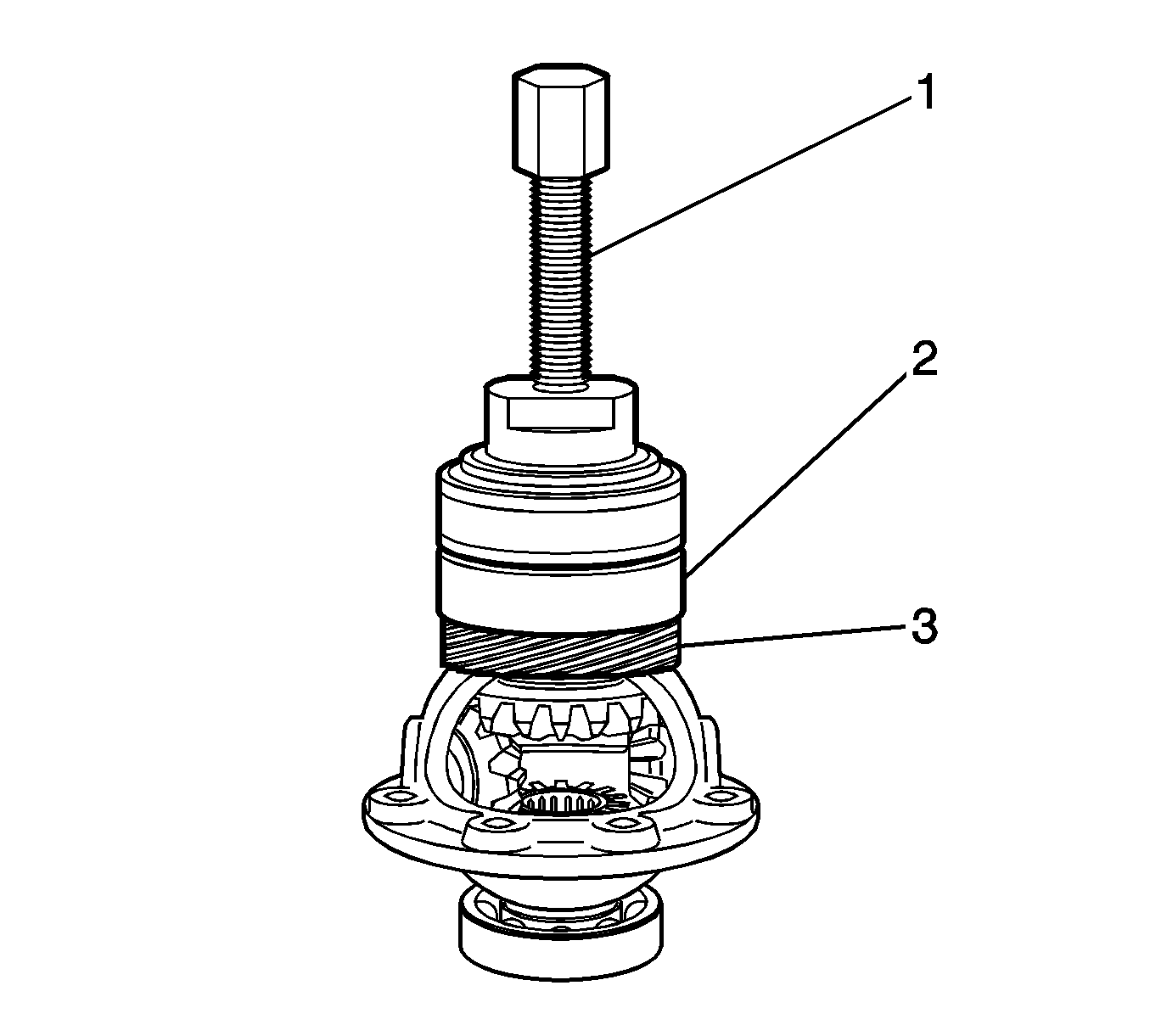

    10. Fig 5: Differential Right Side, DW220-020A-01 & DW220-020A-02
    GM1224139Courtesy of GENERAL MOTORS CORP.
  10. Remove the differential right side bearing using theDW220-020A-01  (1) and the DW220-020A-02  (2). See Special Tools .
  11. Remove the speedometer drive gear (3).
    12. Fig 6: Differential Left Side, DW220-020A-01 & DW220-020A-03
    GM1224132Courtesy of GENERAL MOTORS CORP.
  12. Remove the differential left side bearing using theDW220-020A-01  (1) and the DW220-020A-03  (2). See Special Tools .
