Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

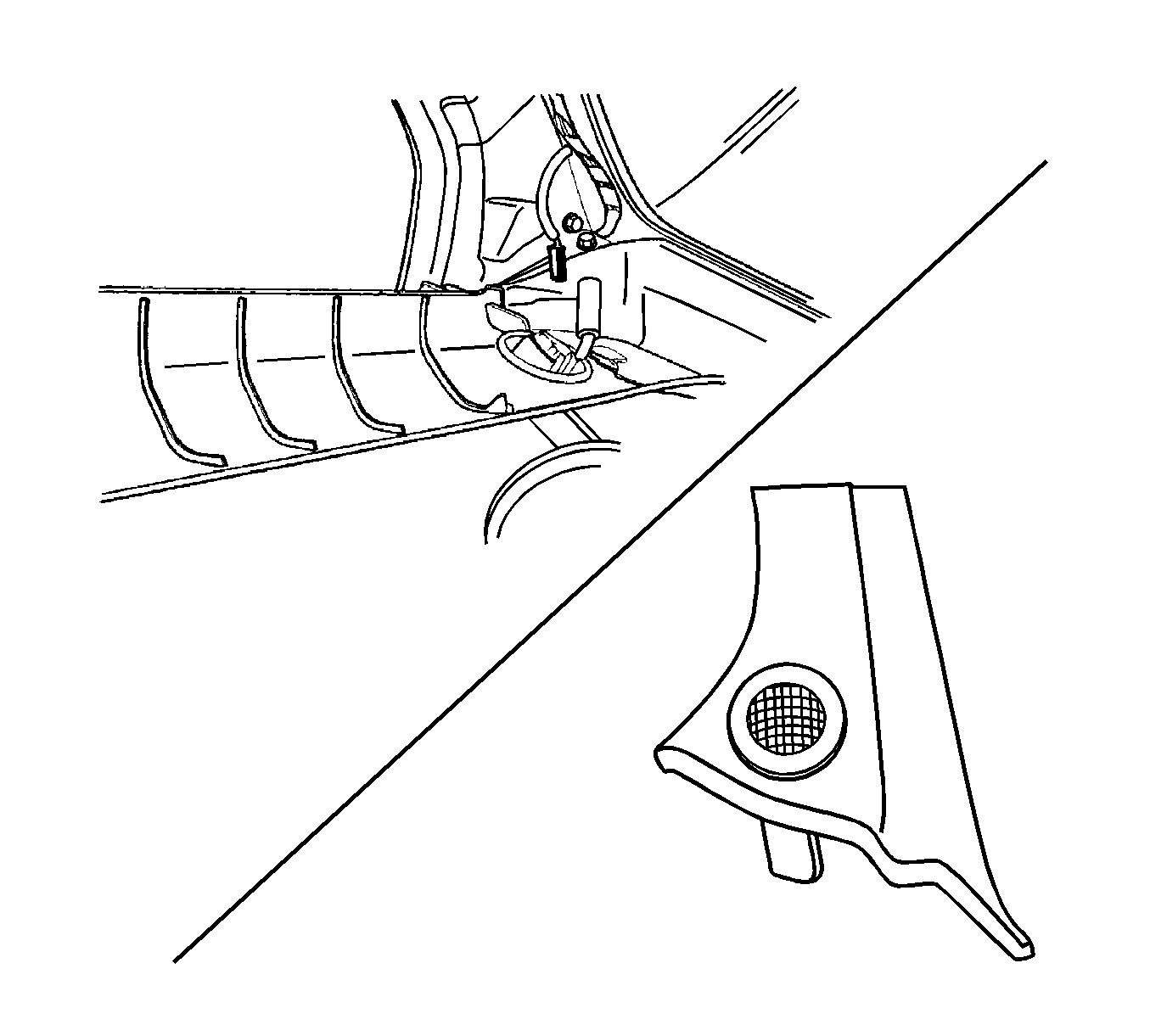

    Fig 1: View of Tweeter
    GM1248472Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Pry off the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  3. Disconnect the electrical connector.
  4. Remove the tweeter.
