Installation Procedure

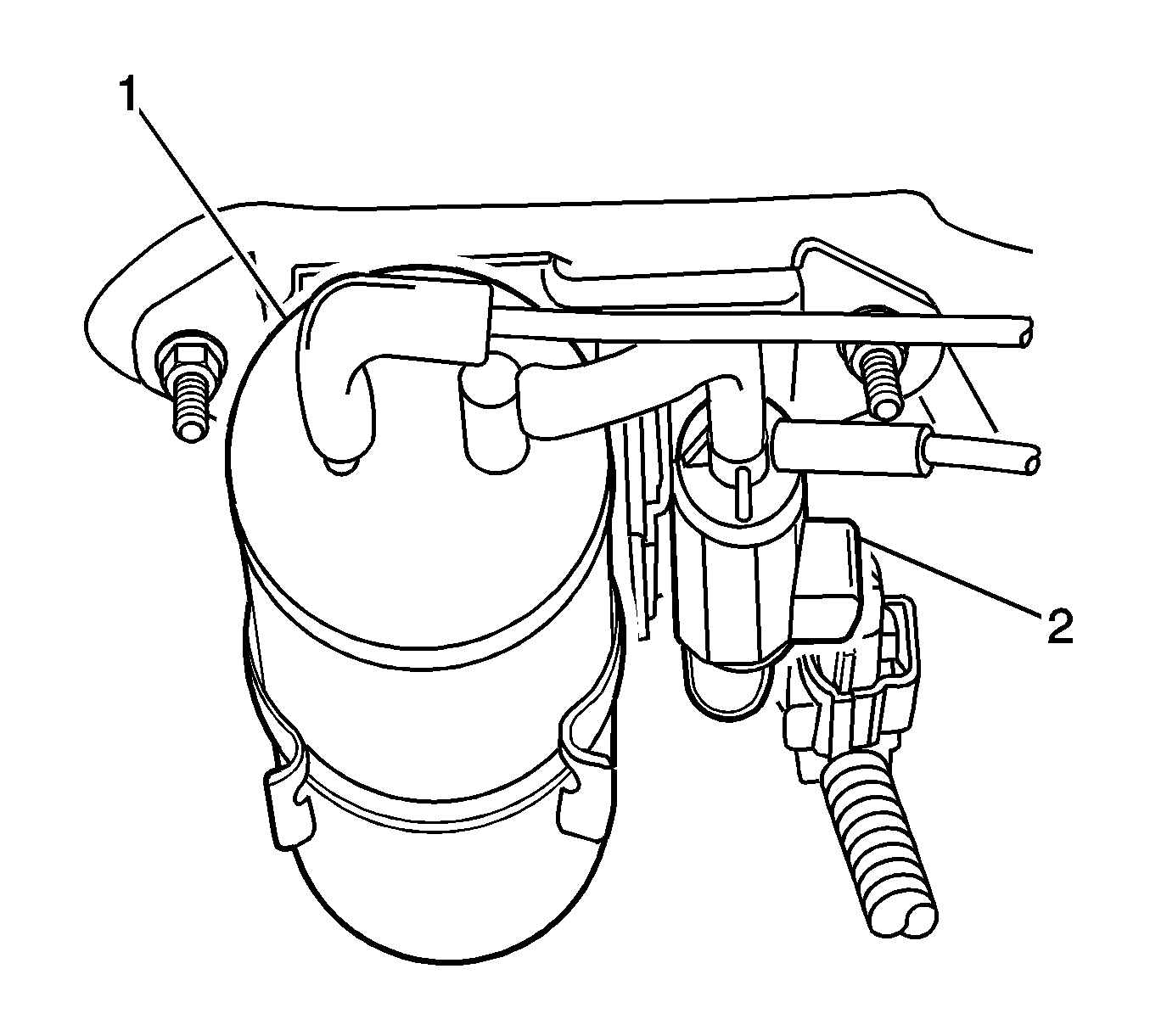

    Fig 1: Identifying Intake Manifold Tuning Valve Solenoid
    GM1464836Courtesy of GENERAL MOTORS CORP.
  1. Install the IMT valve reservoir (1).
  2. Install the vacuum hoses to the IMT valve reservoir (1).
