Installation Procedure

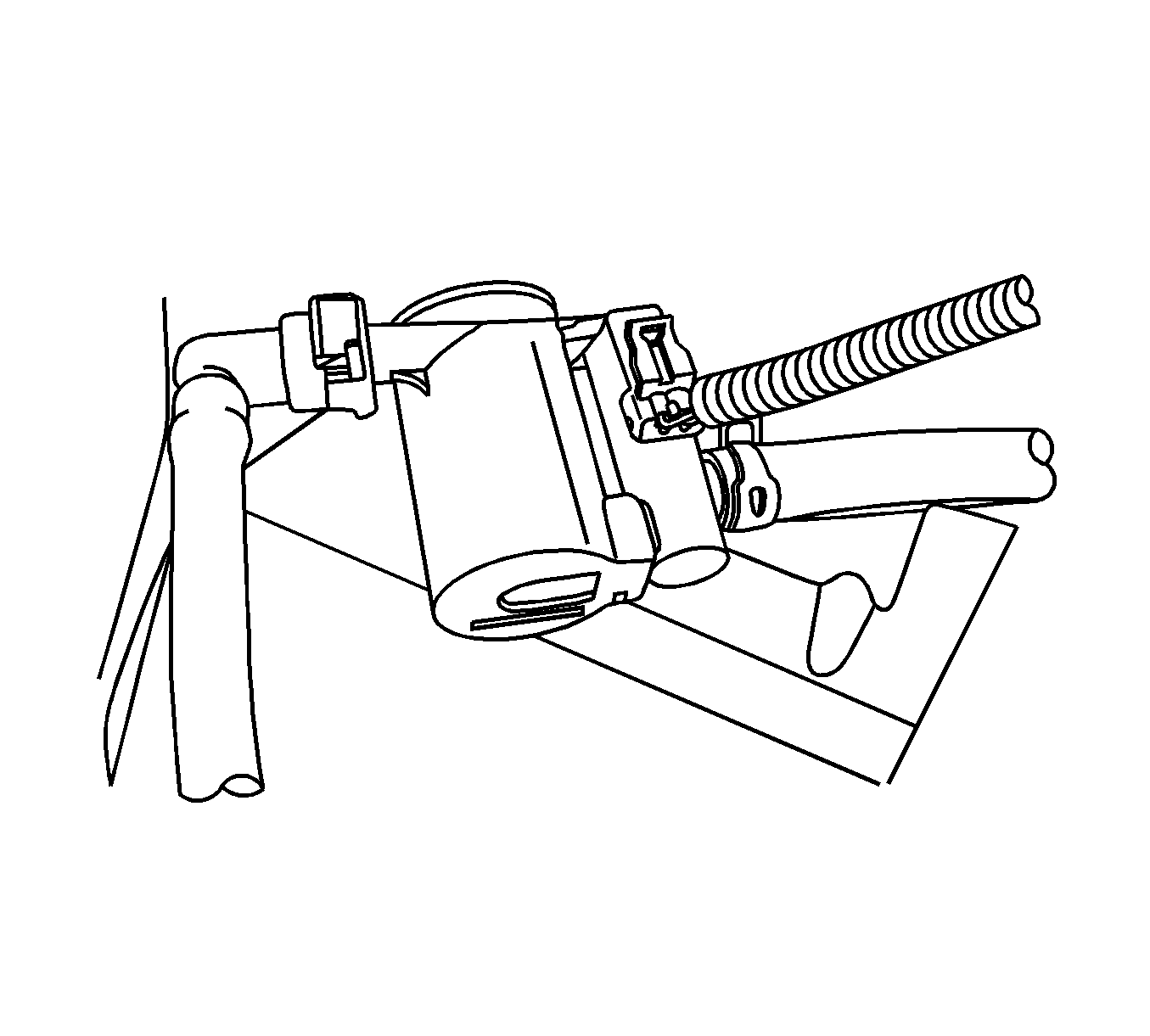

    Fig 1: Removing And Installing EVAP Canister Vent Solenoid Valve
    GM1528398Courtesy of GENERAL MOTORS CORP.
  1. Connect the EVAP canister vent solenoid valve hoses.
  2. Install the EVAP canister vent solenoid valve hose clip.
  3. Connect the EVAP canister vent solenoid valve electrical connector.

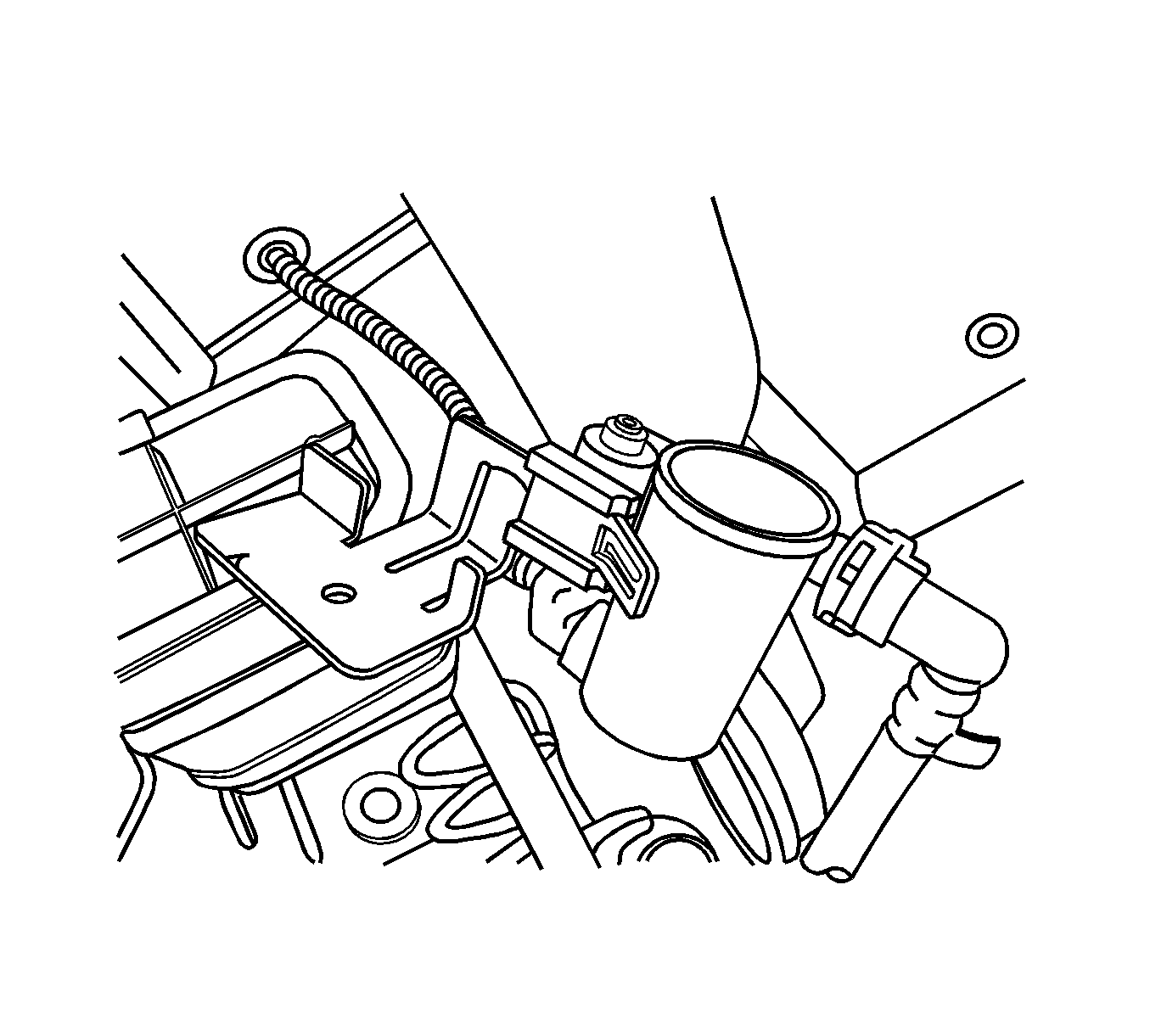

    4. Fig 2: Removing And Installing EVAP Canister Vent Solenoid Valve Bracket
    GM1528395Courtesy of GENERAL MOTORS CORP.
  4. Install the EVAP canister vent solenoid valve bracket to the EVAP canister vent solenoid valve.

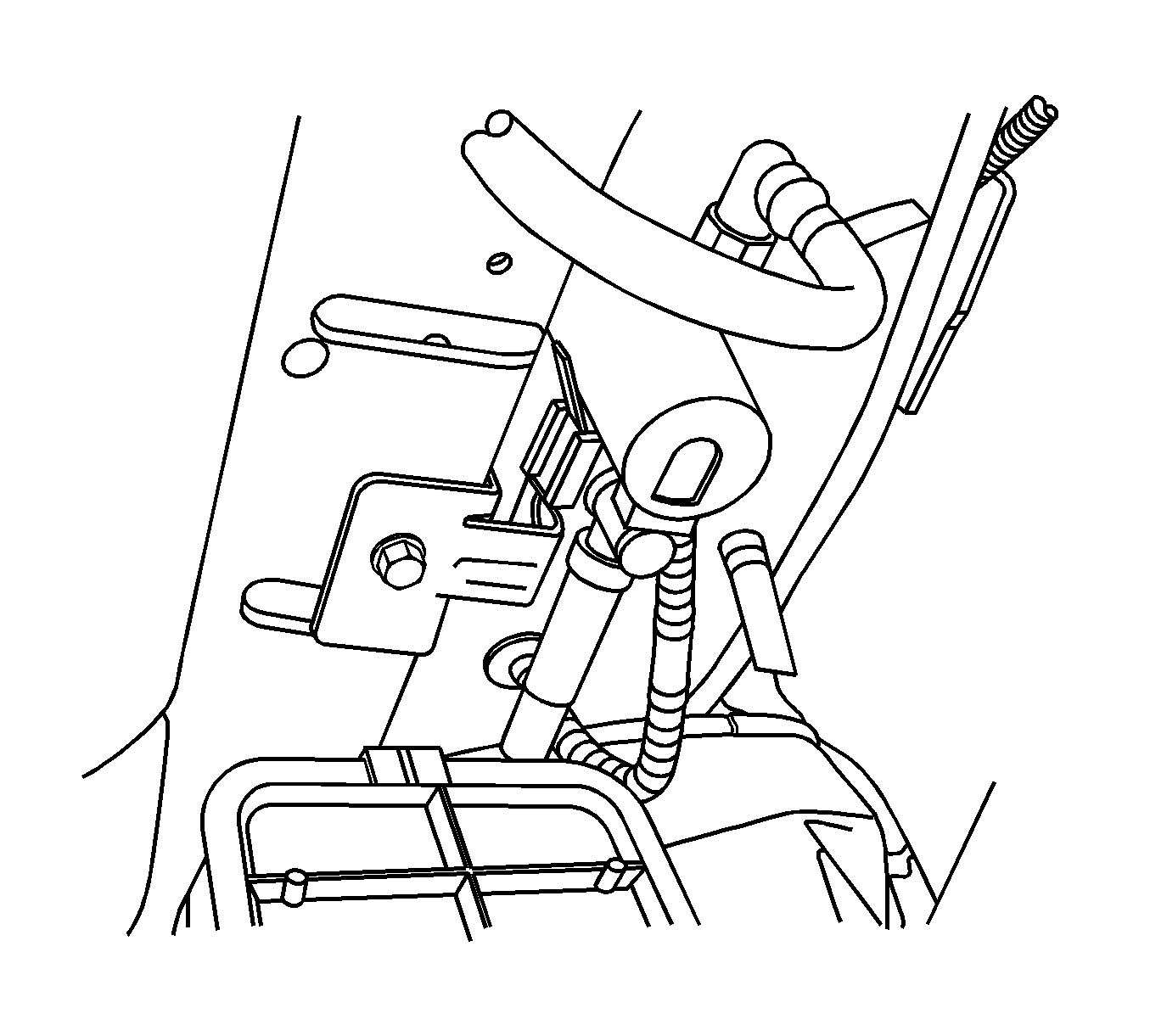

    5. Fig 3: View Of EVAP Canister Vent Solenoid Valve Bracket And Bolt
    GM1528391Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the bolt to the EVAP canister vent solenoid valve bracket.

    Tighten:  Tighten the EVAP canister vent solenoid valve bracket bolt to 4 N.m (35 lb in).

  6. Lower the vehicle.
  7. Connect the negative battery cable, if disconnected.
