Installation Procedure

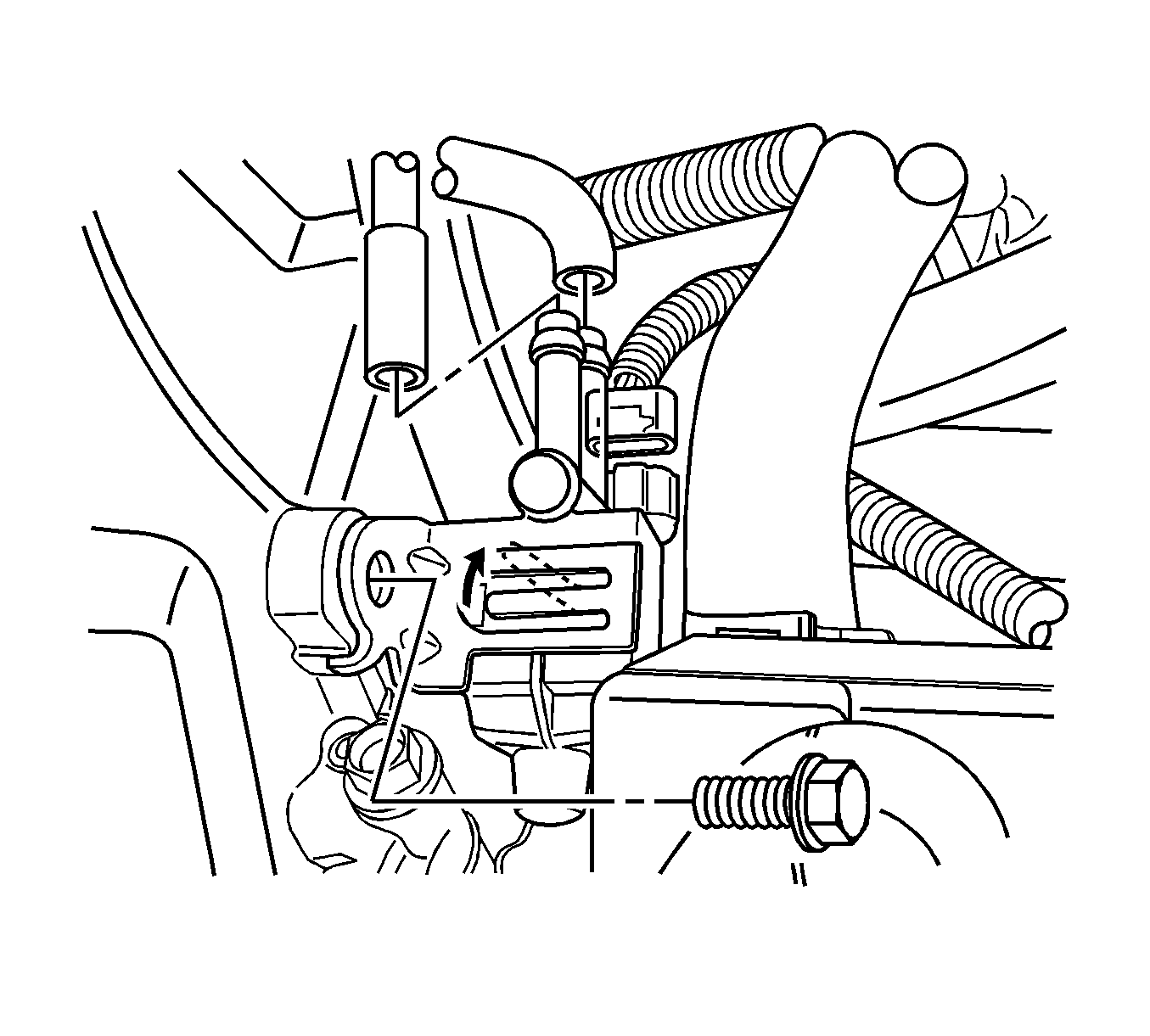

    Fig 1: EVAP Canister Purge Solenoid Bracket
    GM1256165Courtesy of GENERAL MOTORS CORP.
  1. Attach the EVAP canister purge solenoid to the mounting bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the EVAP canister purge solenoid and the mounting bracket to the intake manifold with the bracket bolt.

    Tighten:  Tighten the EVAP canister purge solenoid bracket bolt to 5 N.m (44 lb in).

  3. Connect the vacuum hoses to the EVAP canister purge solenoid.
  4. Connect the EVAP canister purge solenoid connector.
  5. Connect the negative battery cable.
