Removal Procedure

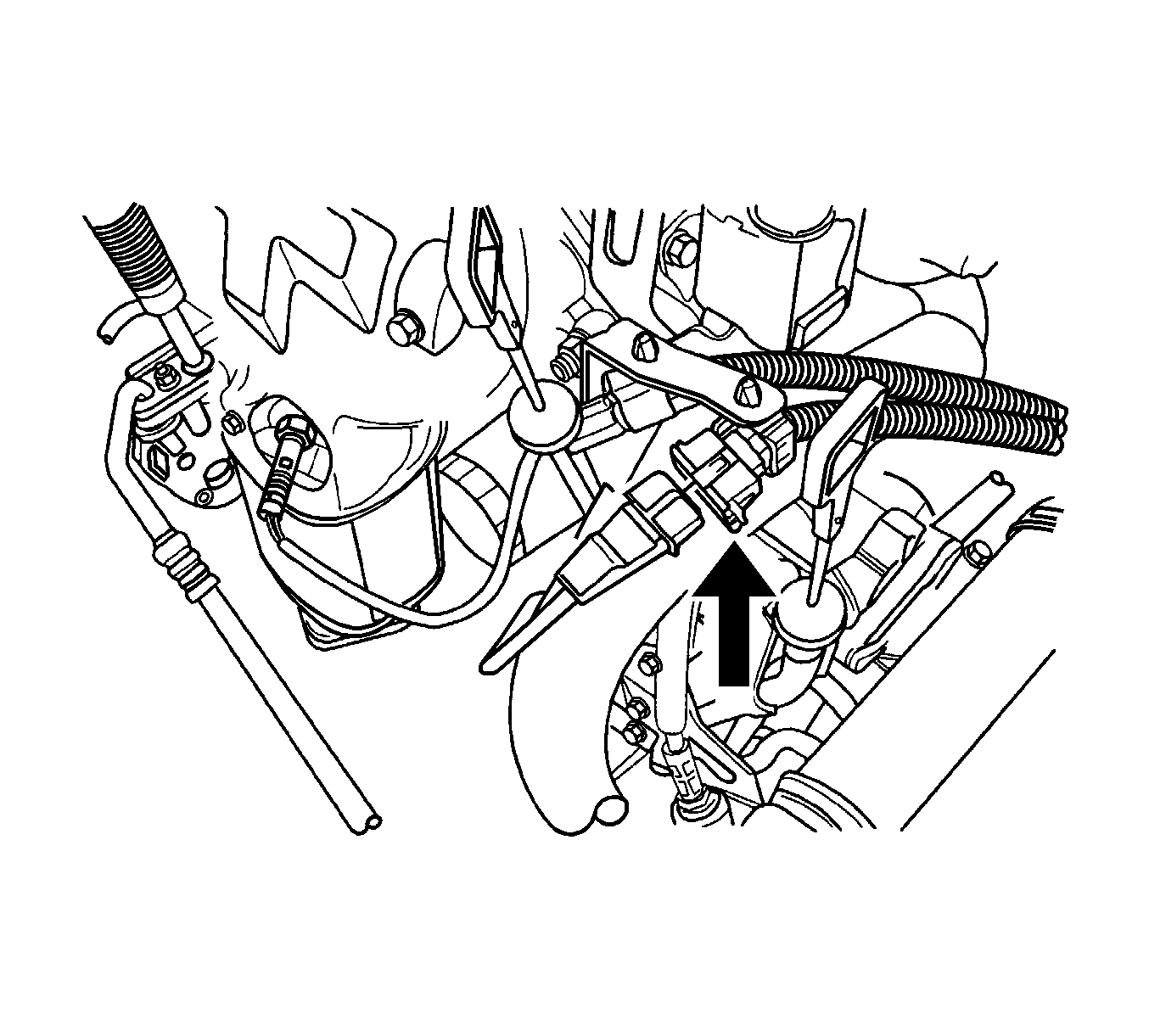

    Fig 1: Disconnecting And Connecting Crankshaft Position Sensor
    GM1289478Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the crankshaft position (CKP) sensor electrical connector.

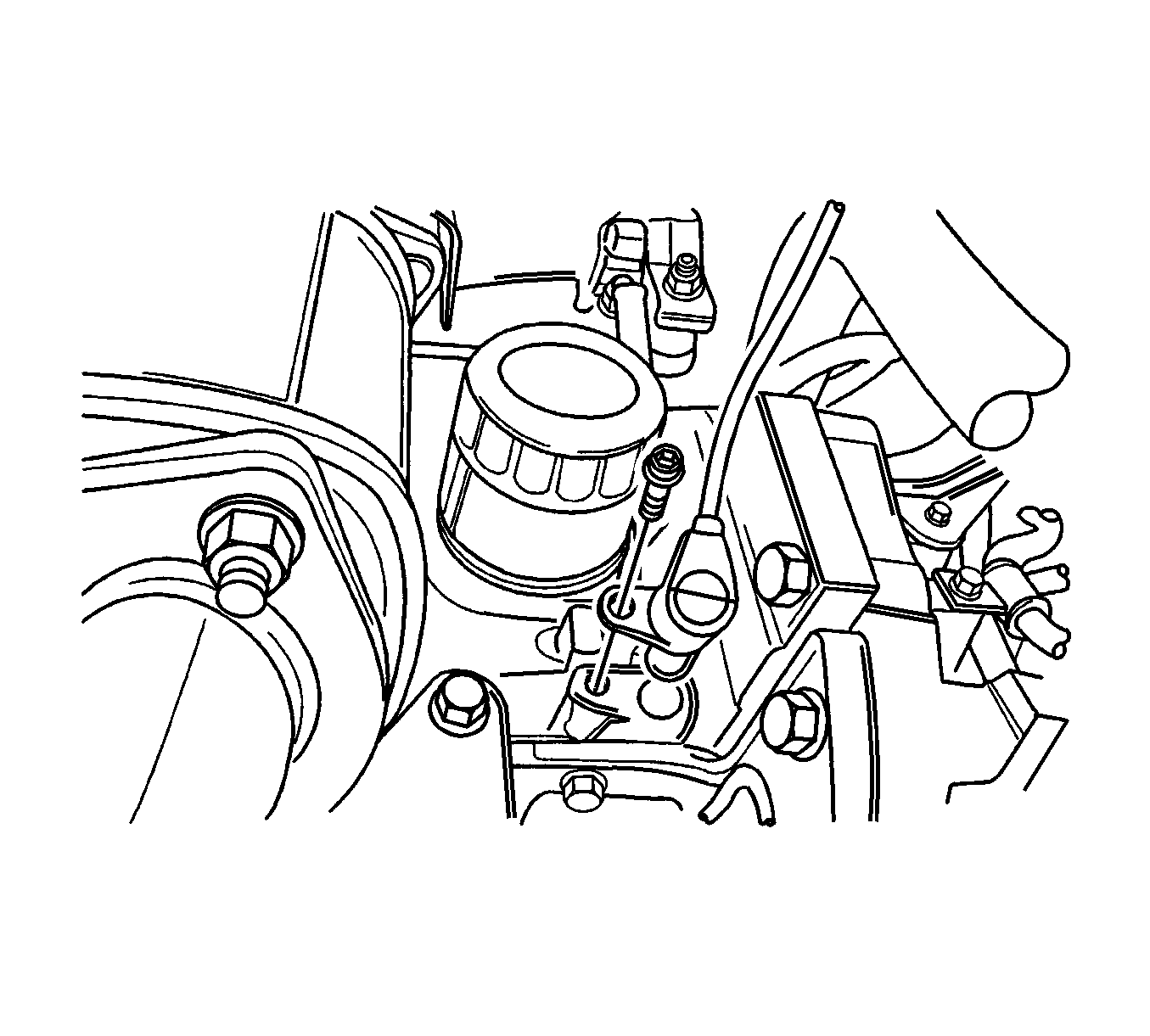

    3. Fig 2: Removing And Installing CKP Sensor And Bolt
    GM1289479Courtesy of GENERAL MOTORS CORP.
  3. Remove the CKP sensor bolt.
  4. Remove the CKP sensor.
