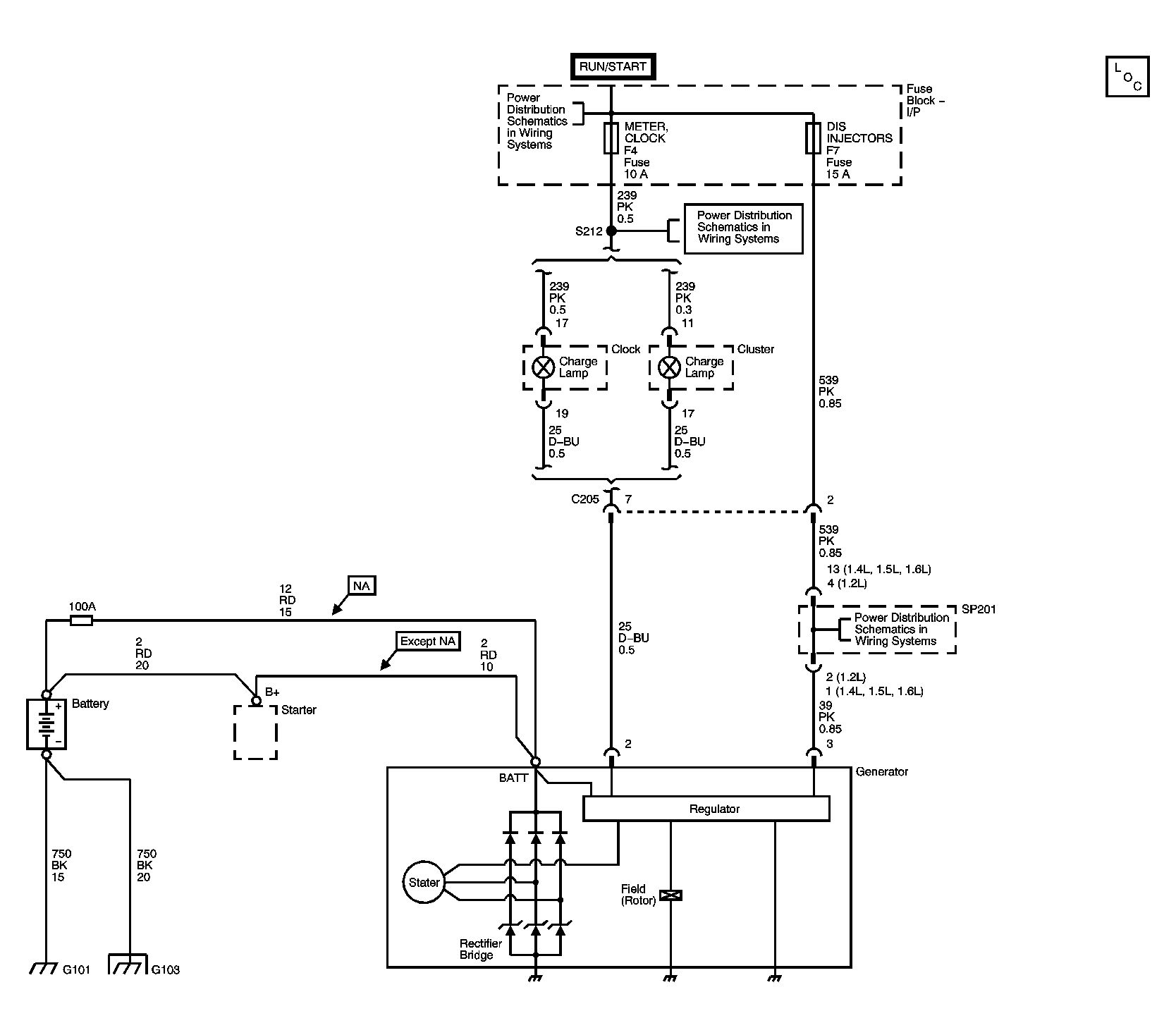

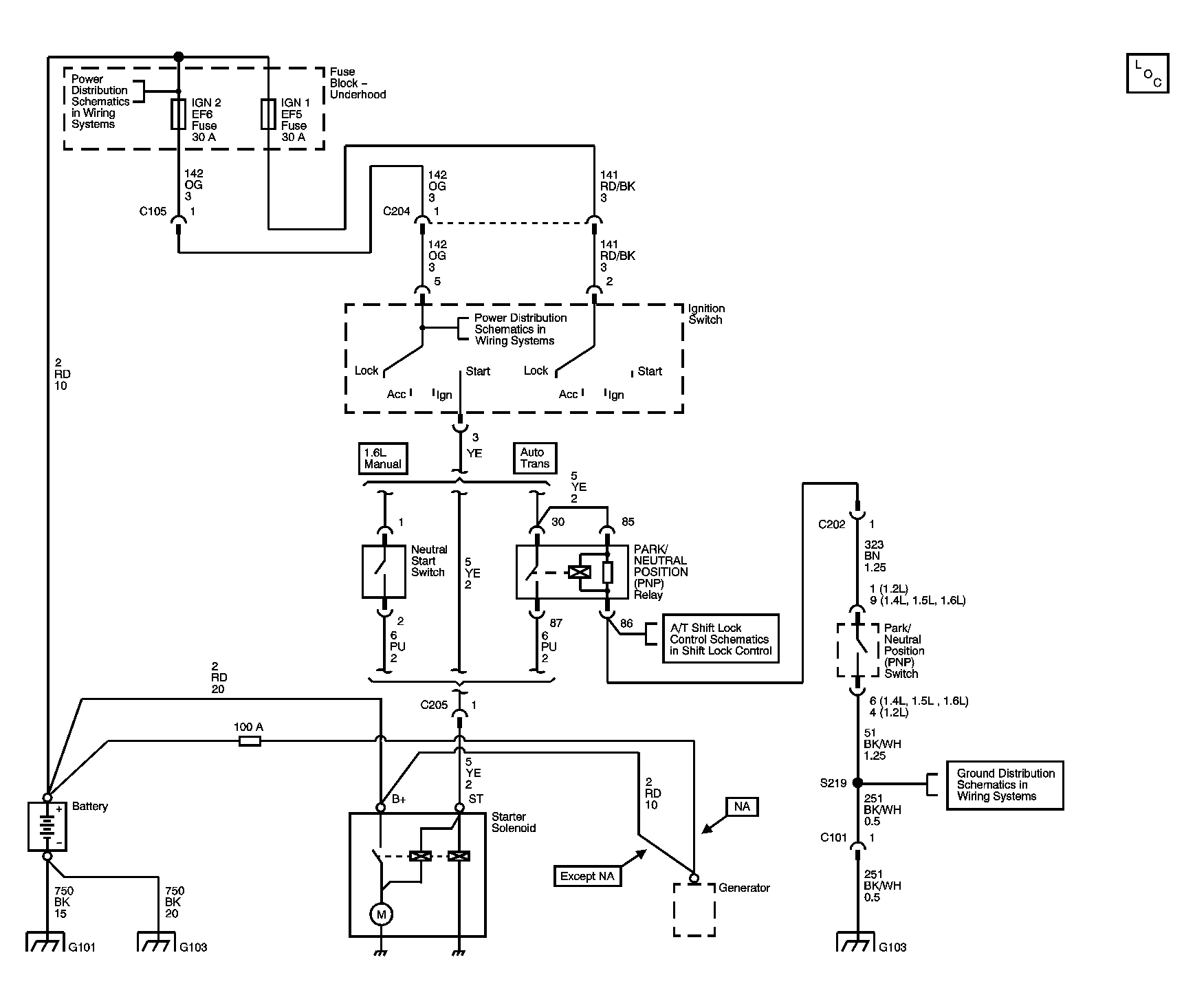

Home >> Chevrolet >> 2005 >> Aveo Base, 4D Hatchback >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
