Valve Grind

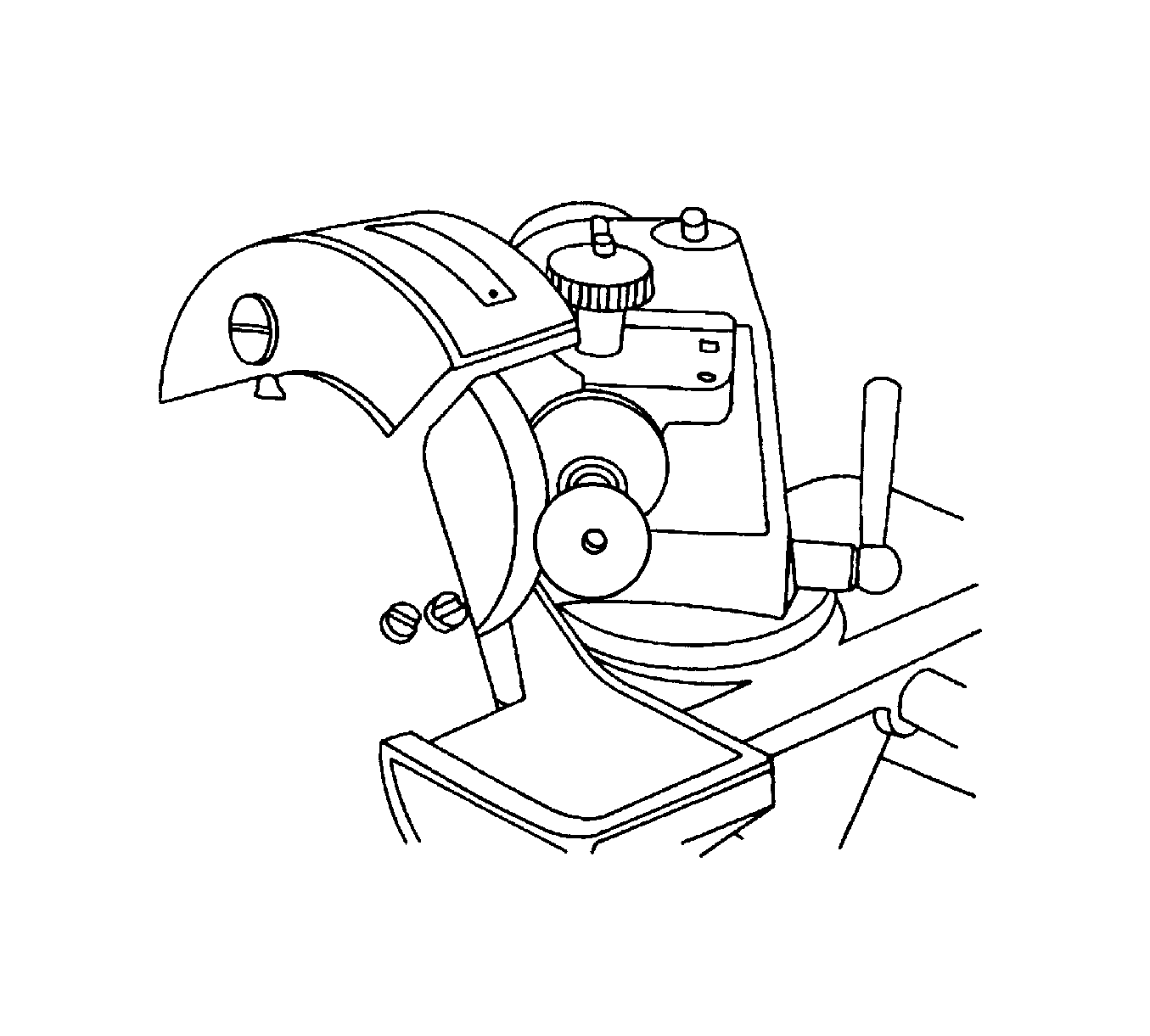

    Fig 1: Refacing Valve
    GM1241775Courtesy of GENERAL MOTORS CORP.
  1. Ensure there are no crater line burns on the valve cone.
  2. The valve may be reground only 2 times. Do not grind the valve stem end.
  3. The angle at the valve face is 45 degrees.
  4. Inspect the assembly height of the intake valves and the exhaust valves.
