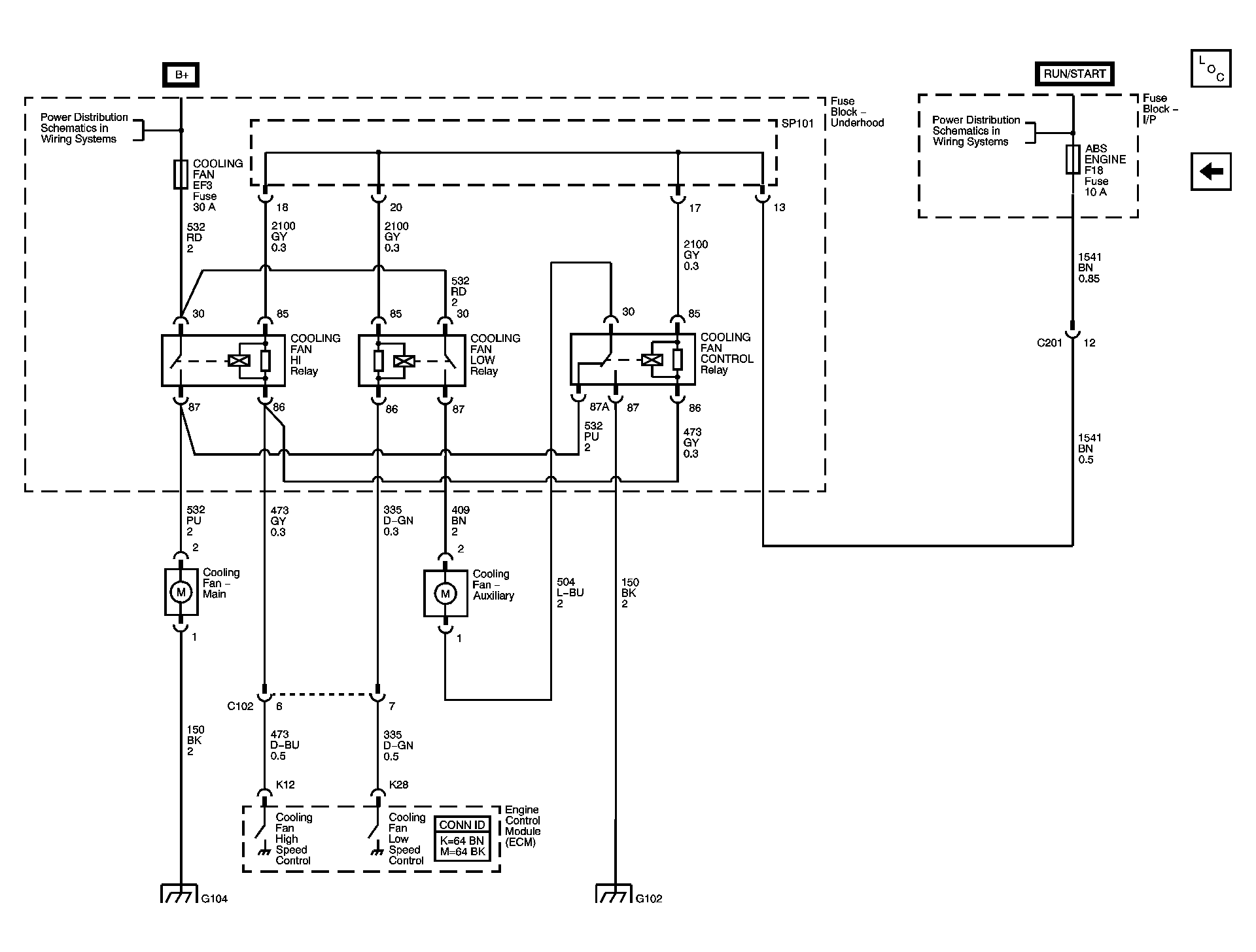

Home >> Chevrolet >> 2005 >> Aveo Base, 4D Hatchback >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic and Routing Diagrams >> Engine Cooling Schematics
