Installation Procedure

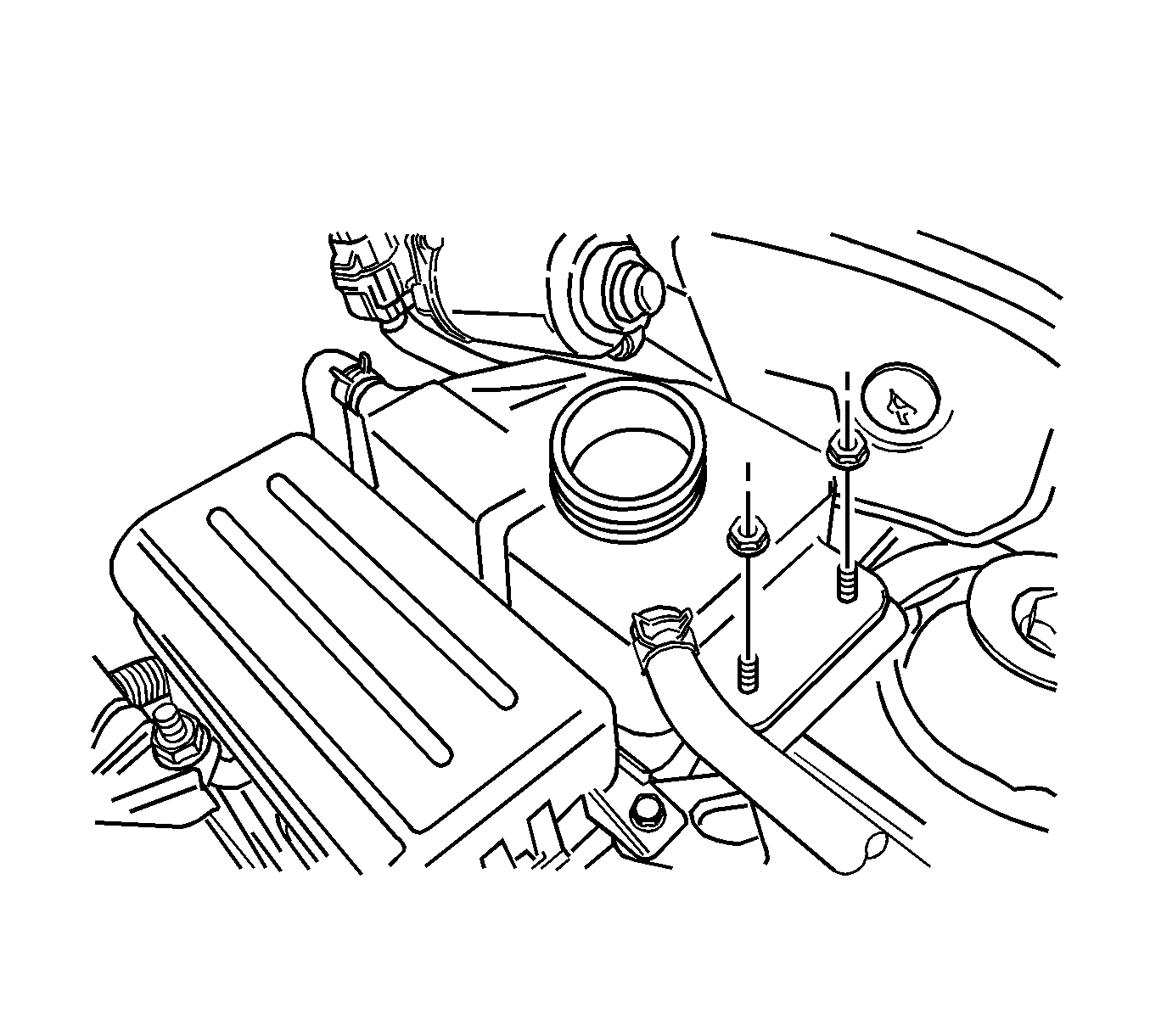

    Fig 1: View Of Surge Tank And Nuts
    GM1241826Courtesy of GENERAL MOTORS CORP.
  1. Install the surge tank to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the surge tank with the attaching nuts.

    Tighten:  Tighten the surge tank attaching nuts to 10 N.m (89 lb in).

  3. Connect the overflow hose to the surge tank.
  4. Secure the overflow hose to the surge tank with the hose clamps.
  5. Fill the surge tank with the coolant to the center ridge, or to the MAX mark.
