Removal Procedure

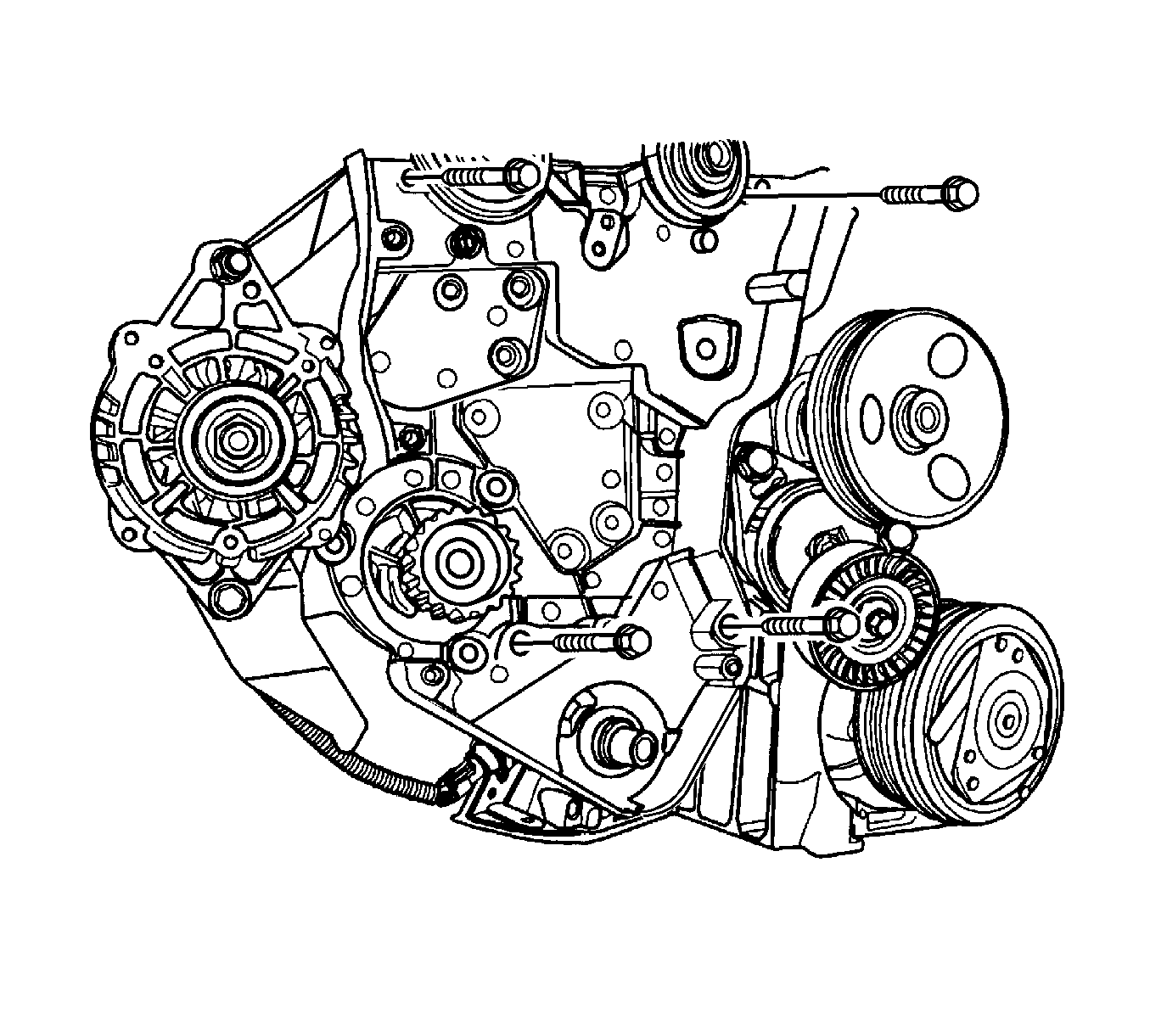

    Fig 1: View Of Rear Timing Belt Cover
    GM1291234Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Drain the coolant. Refer to Draining and Filling Cooling System .
  3. Remove the rear timing belt cover. Refer to Timing Belt Cover Replacement in Engine Mechanical 1.6L.

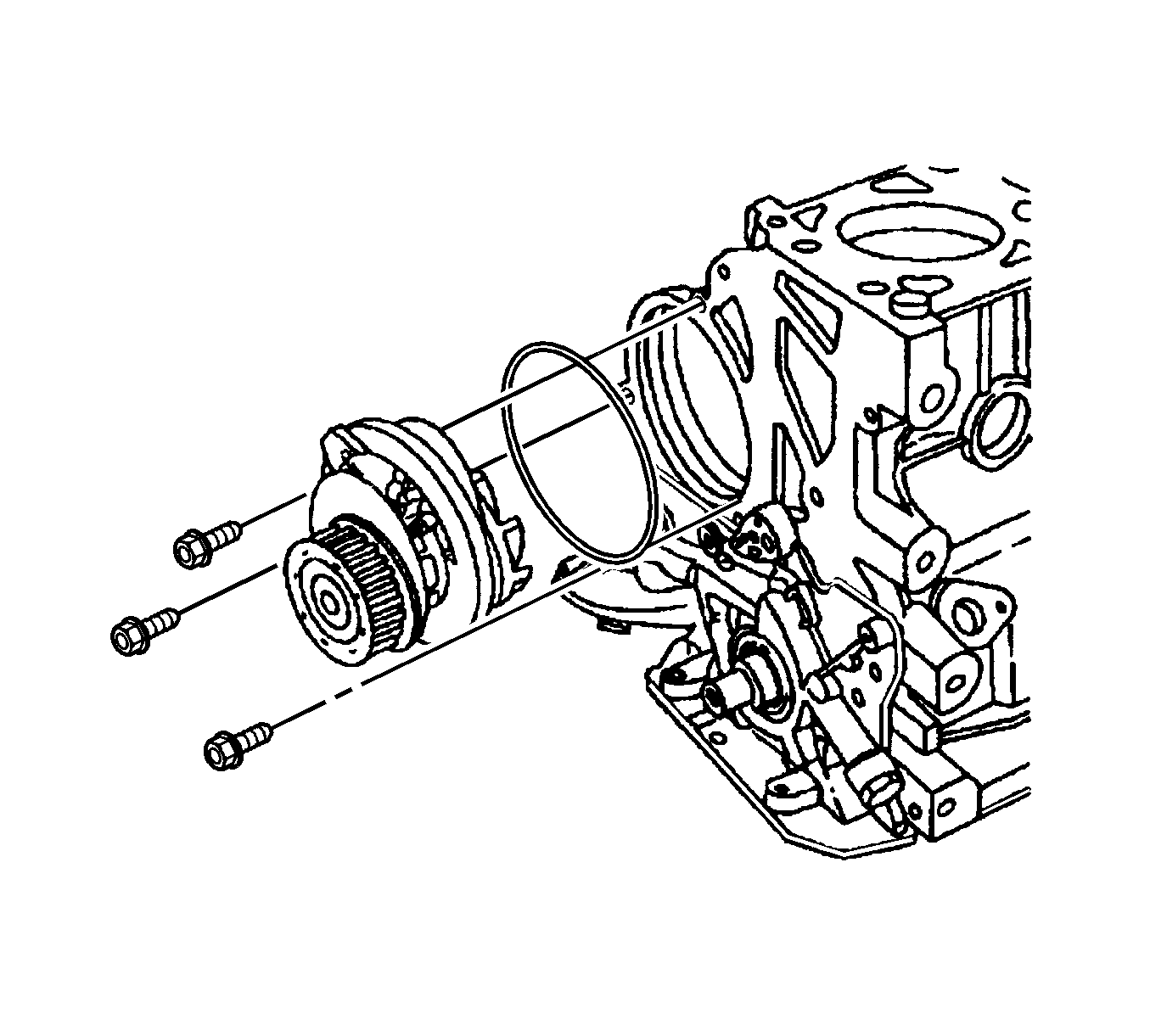

    4. Fig 2: Installing & Removing Coolant Pump And Seal Ring
    GM1291096Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant pump mounting bolts.
  5. Remove the coolant pump.
  6. Remove the seal ring from the coolant pump.
