Coolant Heater Cord Replacement: Notes

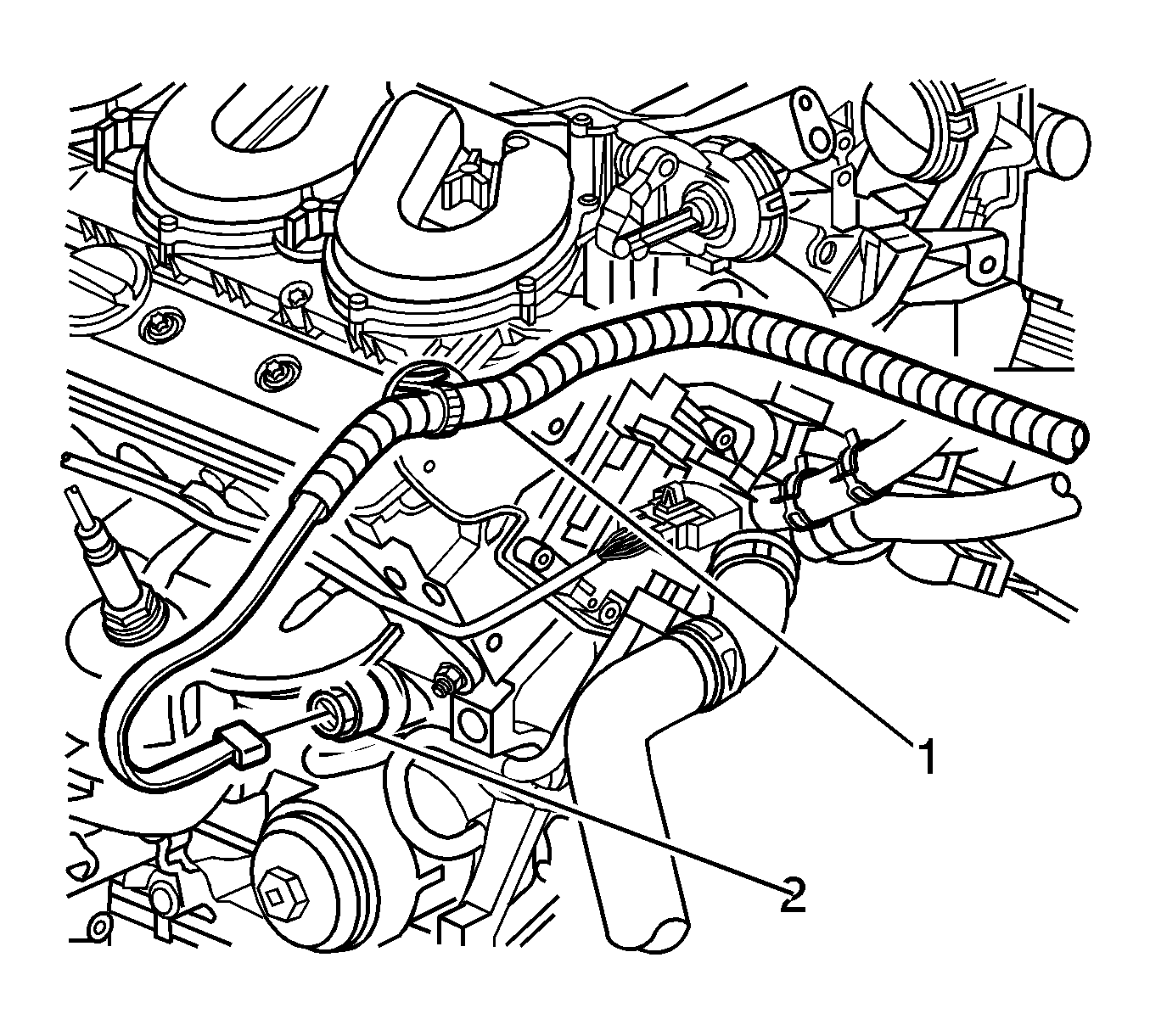

    Fig 1: View Of Coolant Heater Cord Clip And Coolant Heater
    GM1252247Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the coolant heater power supply cord from the coolant heater (2).
  2. Disconnect the coolant heater cord clip (1) from the engine lift bracket.

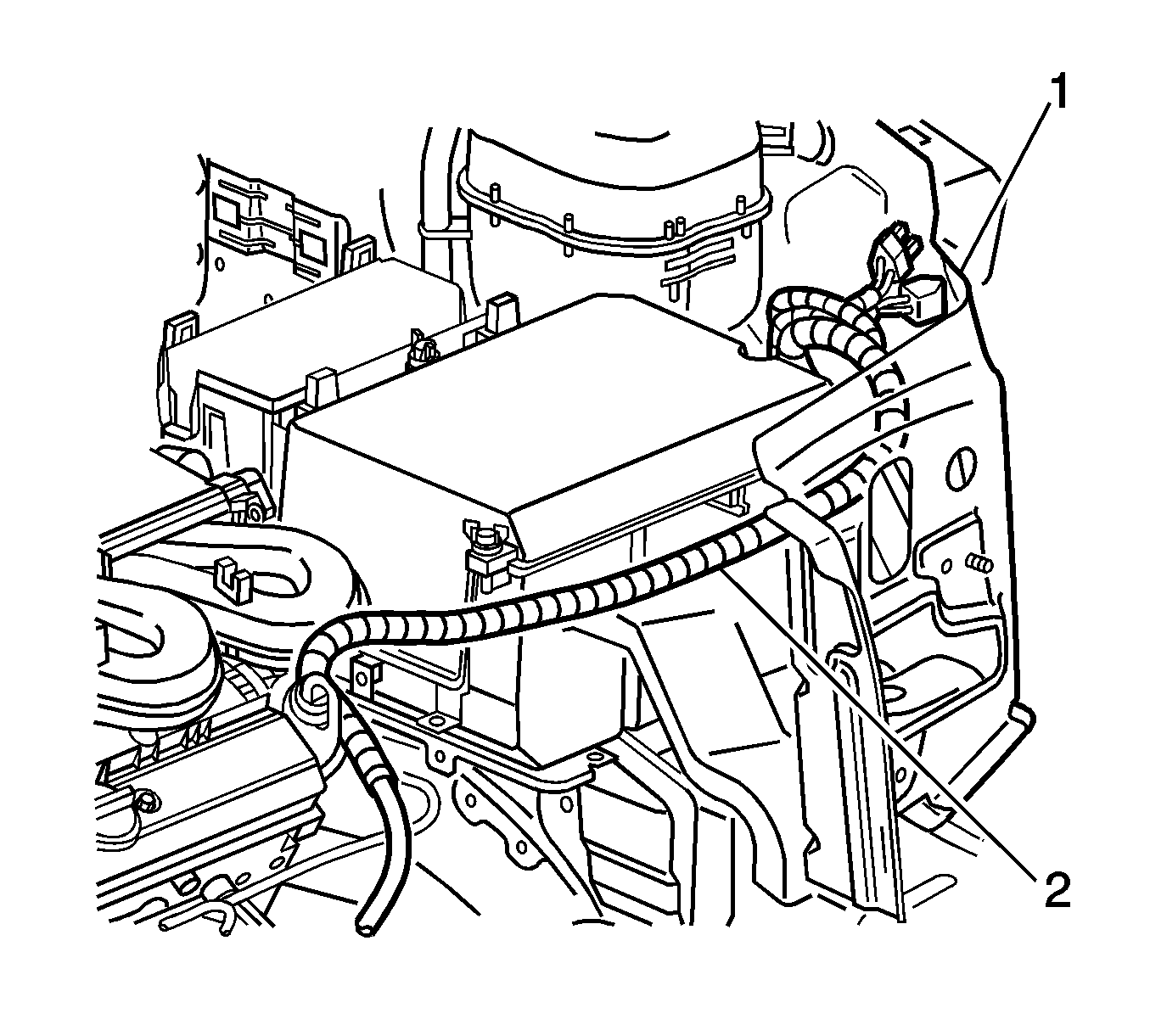

    3. Fig 2: View Of Coolant Reservoir And Battery
    GM1252257Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the coolant heater cord from between the washer bottle and the coolant reservoir (1).
  4. Remove the coolant heater cord from the vehicle.
