Driver Information System Schematics

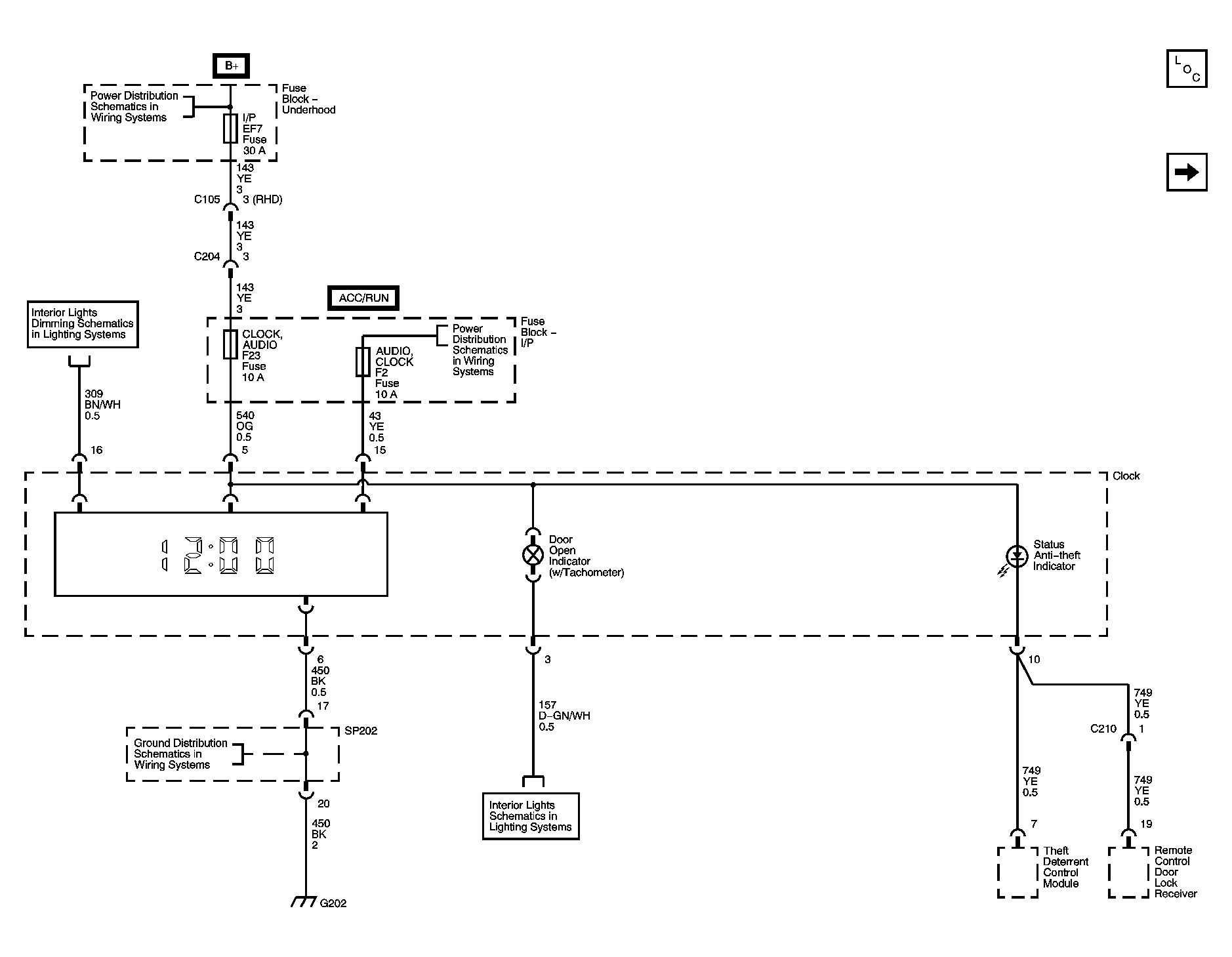

Fig 1: Power, Grounds and Indicators Schematic

GM1257919

Courtesy of GENERAL MOTORS CORP.

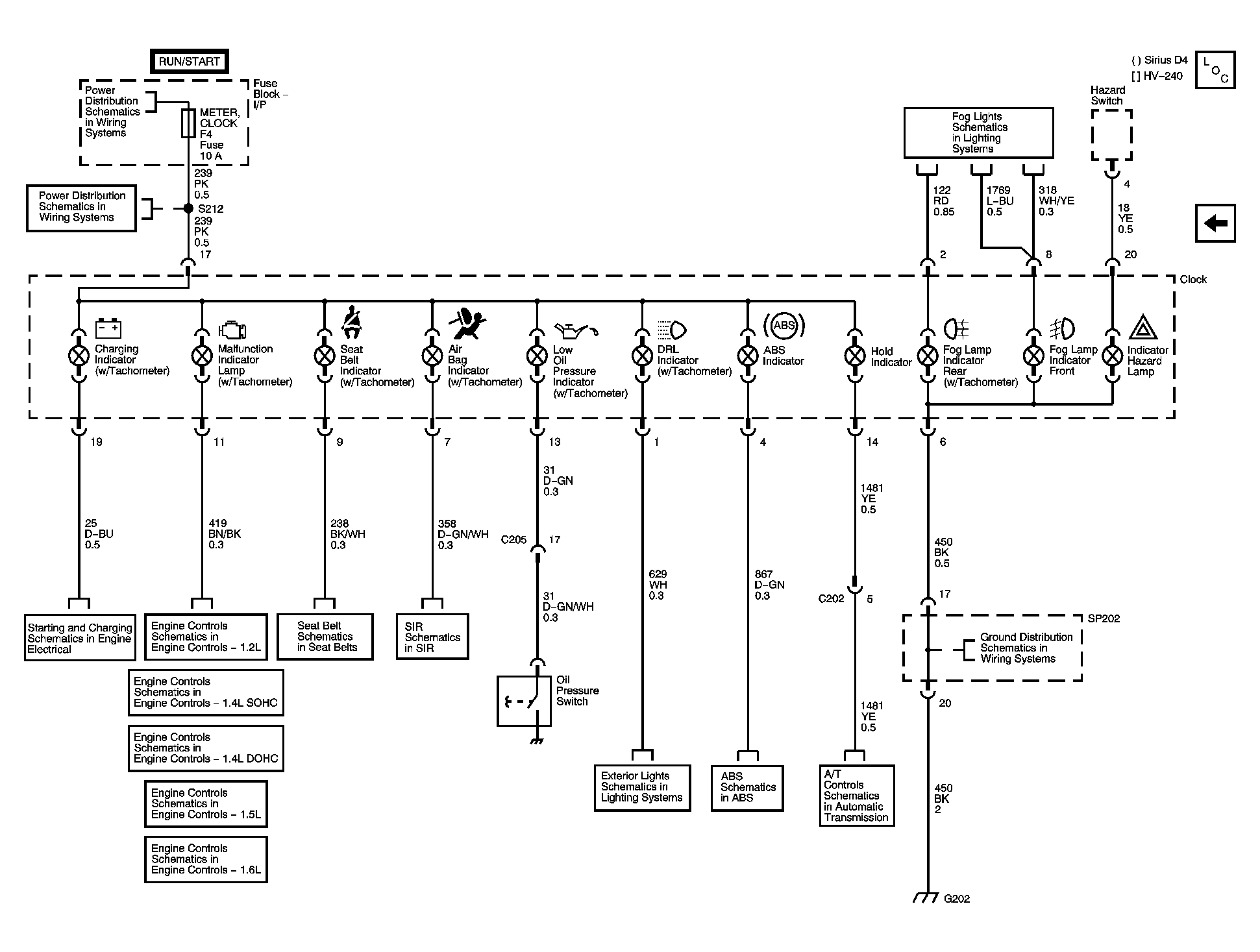

Fig 2: Warning Indicators with Tachometer Schematic

GM1257918

Courtesy of GENERAL MOTORS CORP.
