ABS Schematics (Mando)

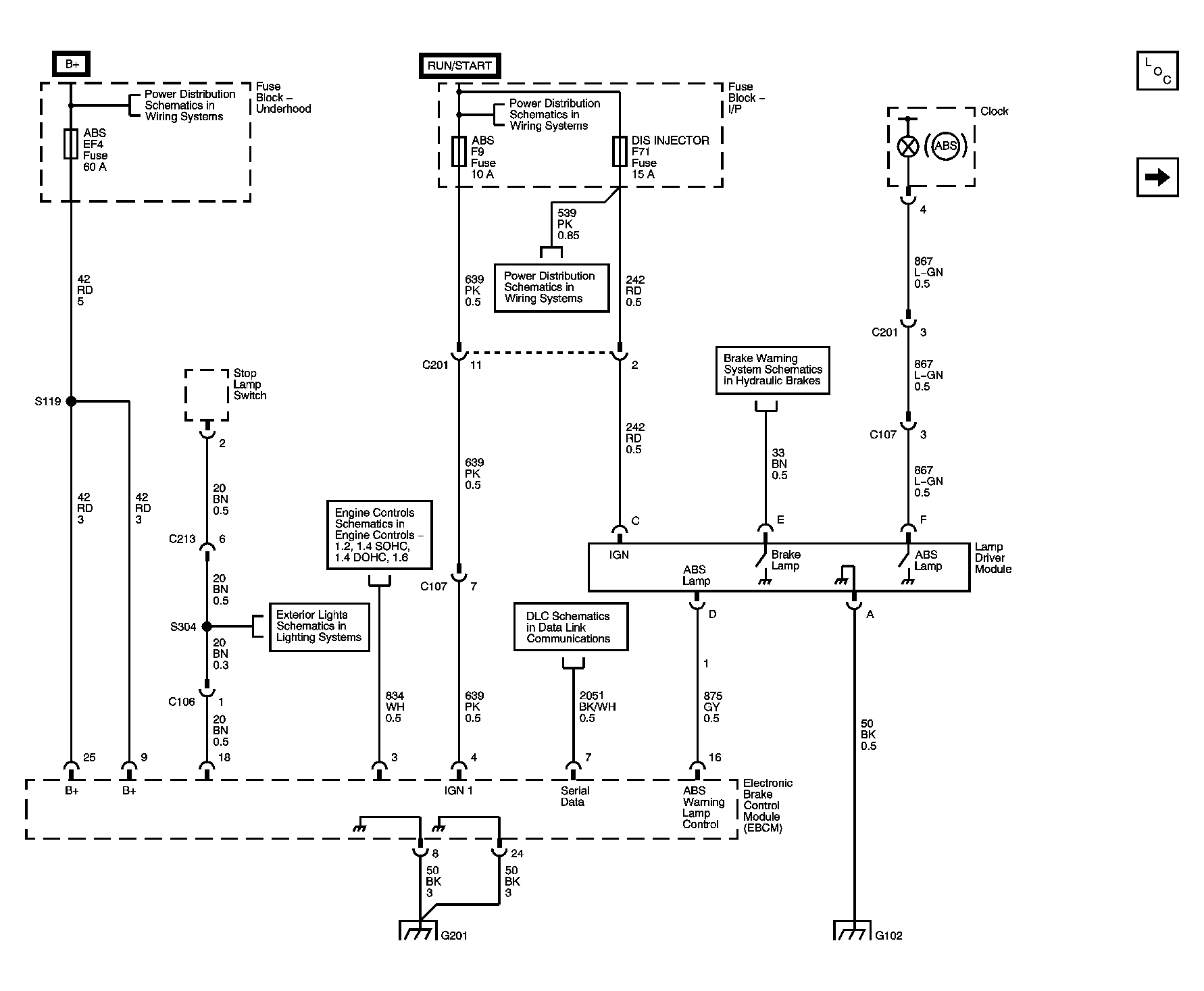

Fig 1: Module Power, Ground, Data Link Connector (DLC) and Warning Lamps Schematic (Mando)
GM1509917Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors Schematic (Mando)
GM1509919Courtesy of GENERAL MOTORS CORP.
