Removal Procedure

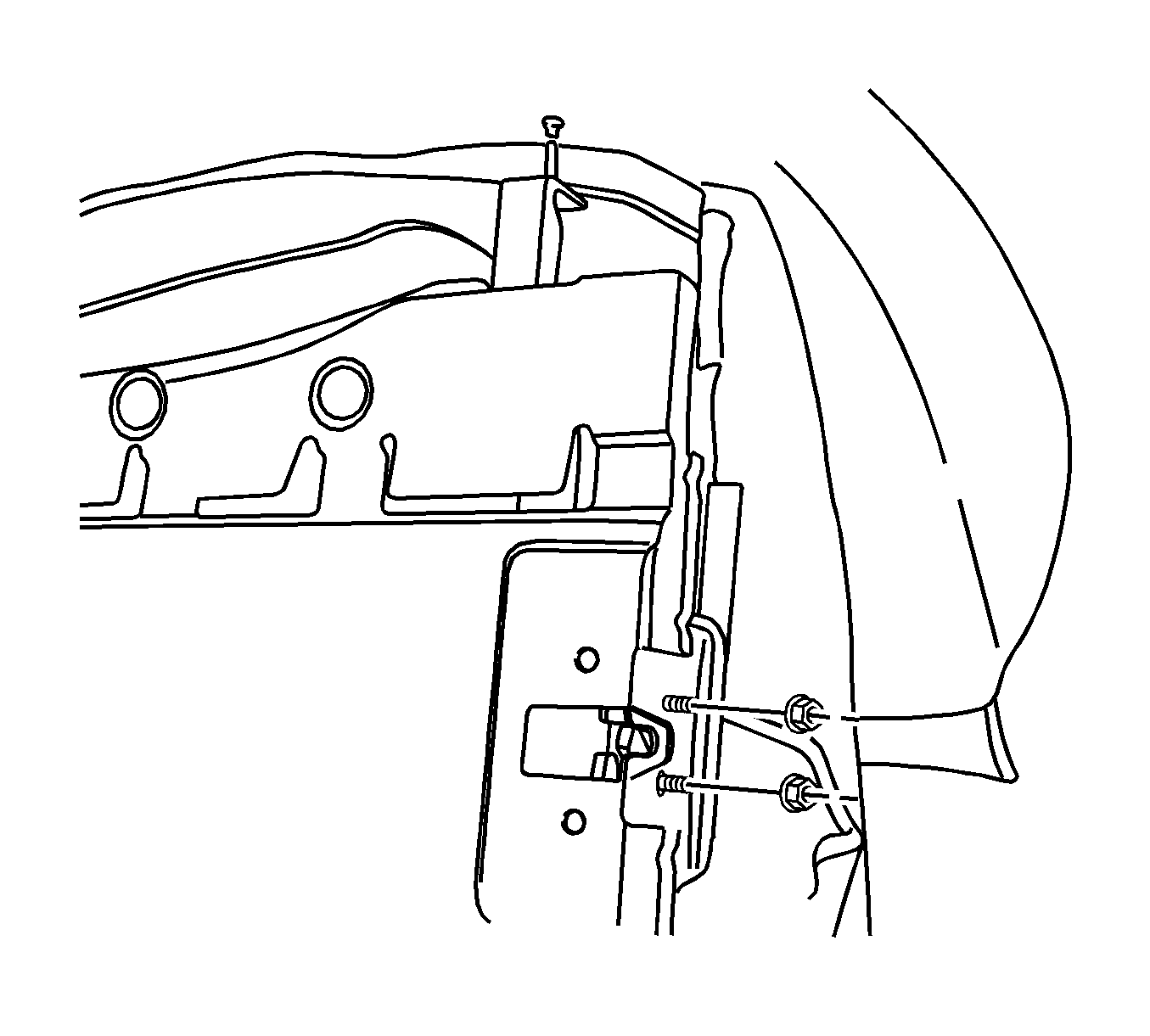

    Fig 1: View of Rear Seat Cushion & Bolt
    GM1545481Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt at the base of the rear seat back.
  2. Lift and remove the rear seat cushion.
