Installation Procedure

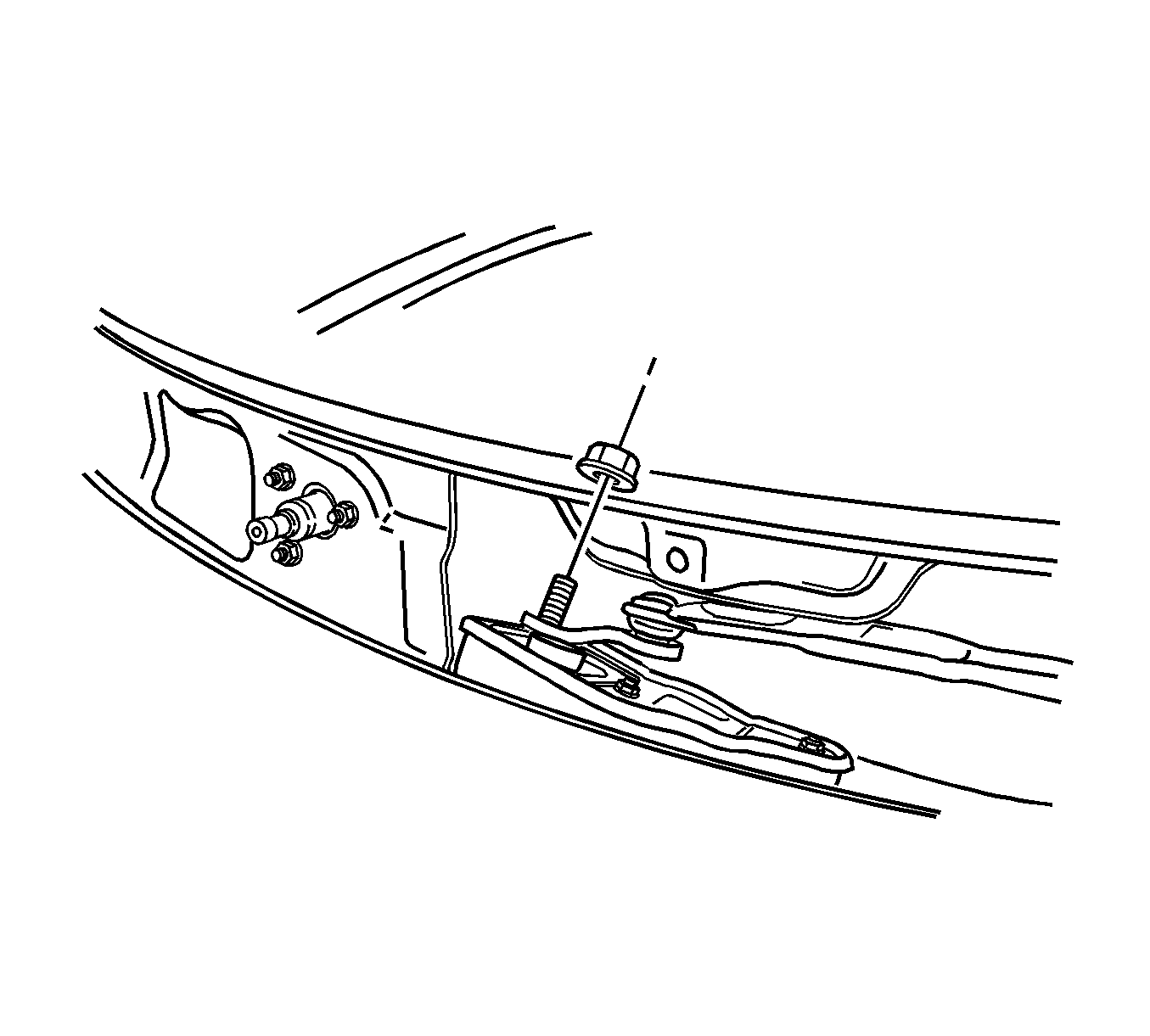

    Fig 1: View of Rear Compartment Lamp and Bulb
    GM1248430Courtesy of GENERAL MOTORS CORP.
  1. Install a new bulb.
  2. Connect the electrical connector.
  3. Insert the luggage compartment lamp into the recess and press the lens into place.
  4. Connect the negative battery cable.
