Removal Procedure

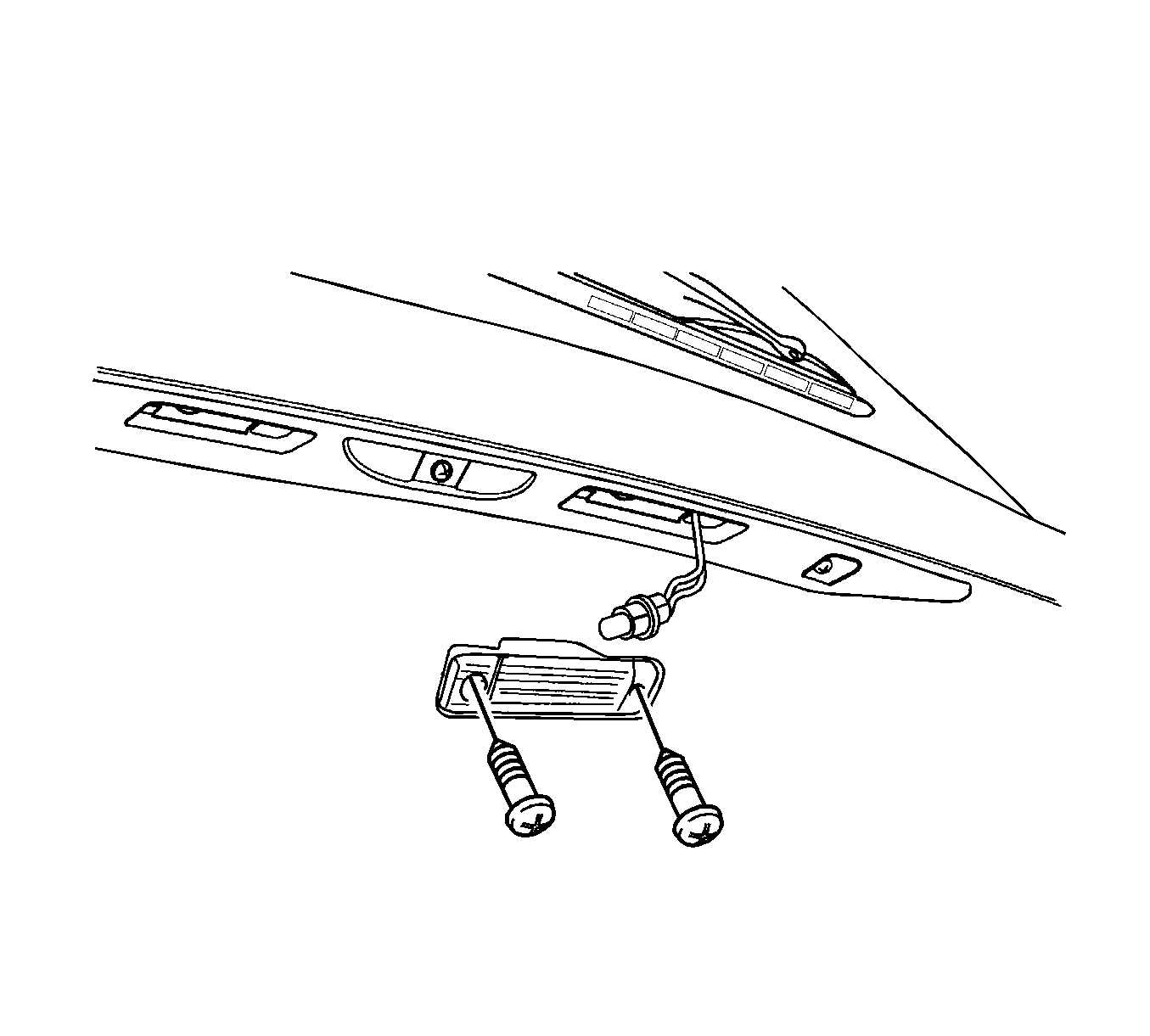

    Fig 1: View of License Lamp Assembly
    GM1248426Courtesy of GENERAL MOTORS CORP.
  1. Remove the screws.
  2. Disconnect the electrical connector.
  3. Remove the lamp assembly.
  4. Remove the bulb.
