Removal Procedure

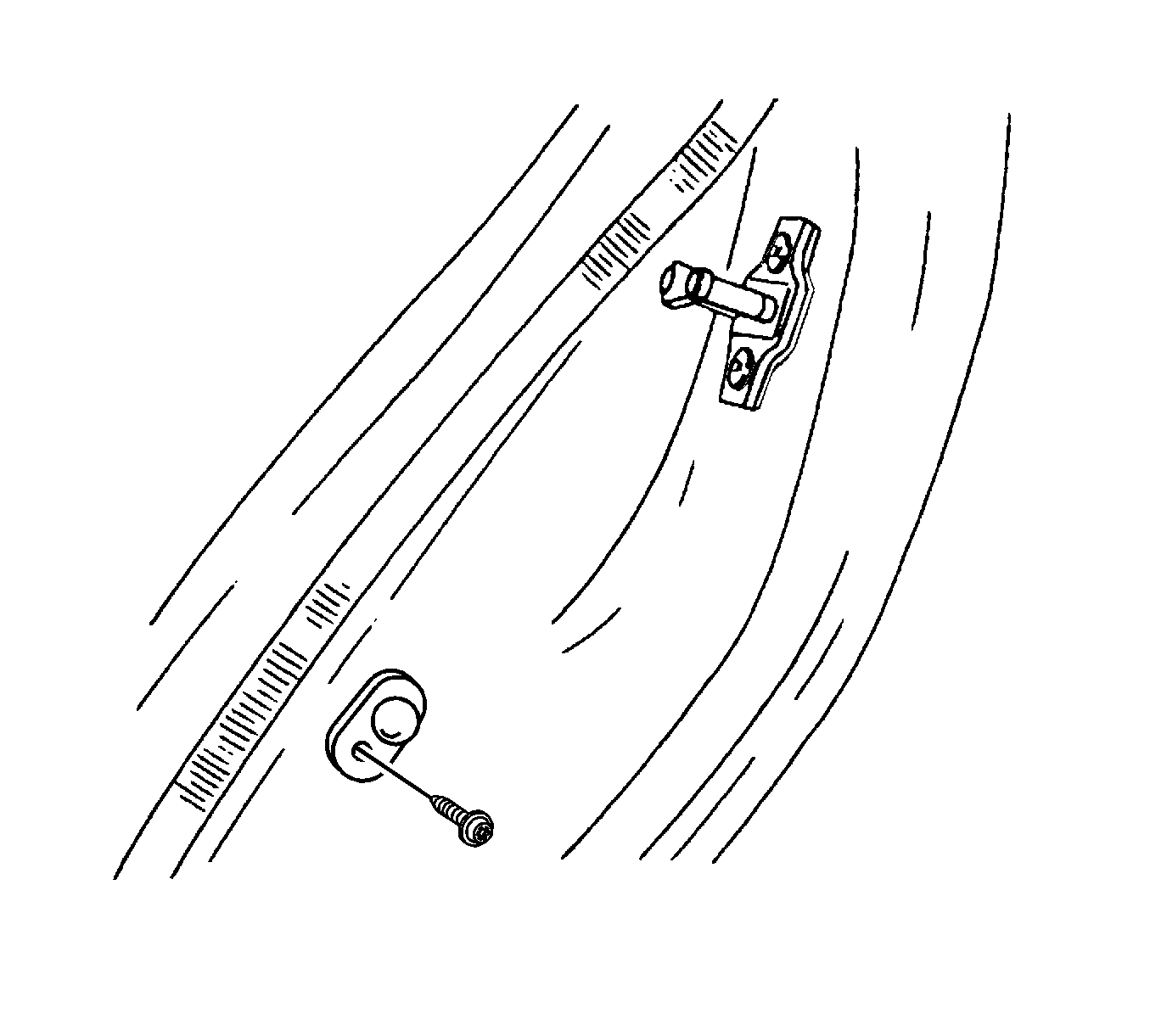

    Fig 1: View of Door Jamb Switch and Screw
    GM1248427Courtesy of GENERAL MOTORS CORP.
  1. Remove the screw and the door jamb switch.
  2. Disconnect the electrical connector.
