Data Link Connector (DLC) Schematics

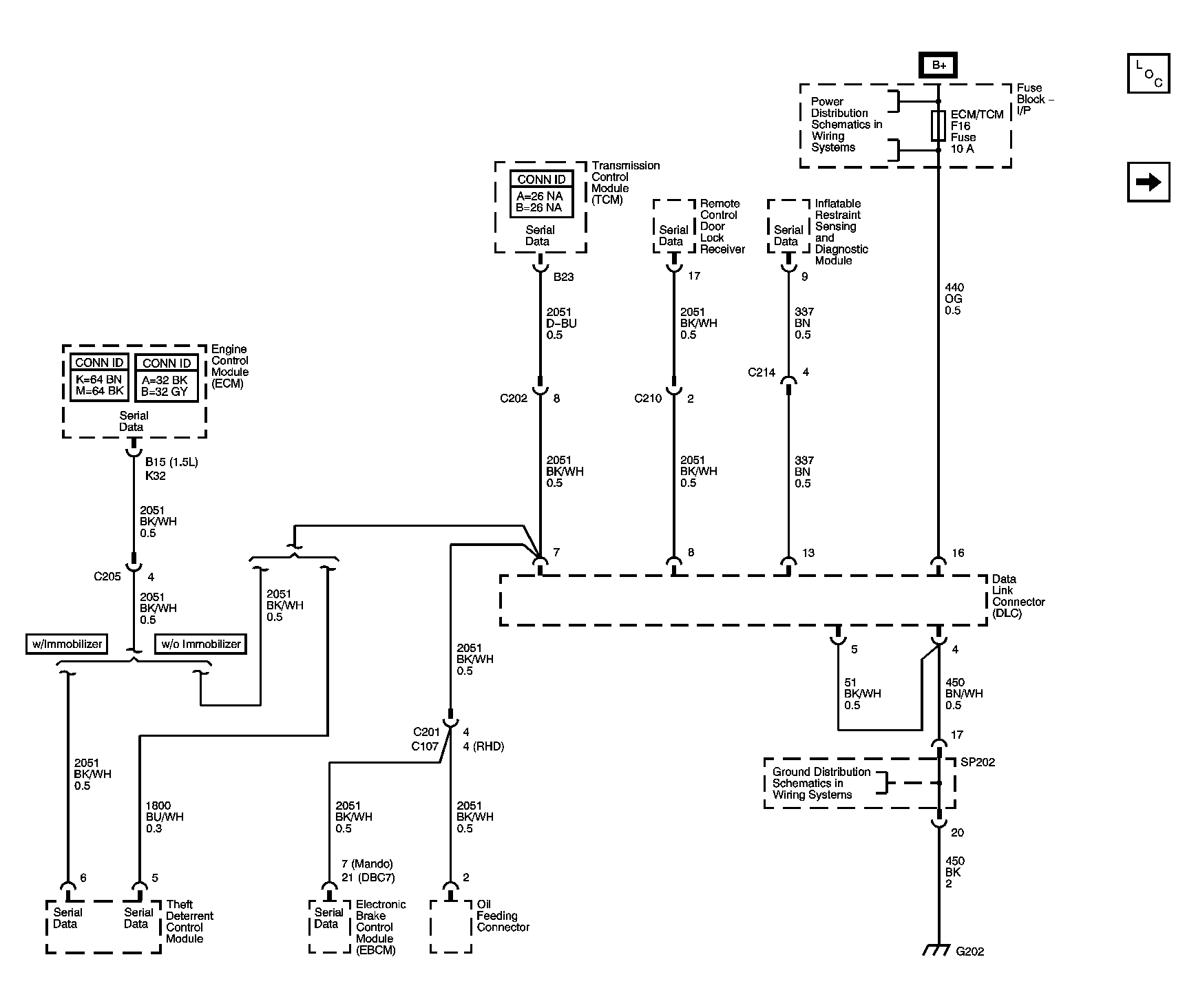

Fig 1: Data Link Connector (DLC) Schematics

GM1282554

Courtesy of GENERAL MOTORS CORP.
