C416 Body Harness to Left Tail Lamp Jumper Connector End Views

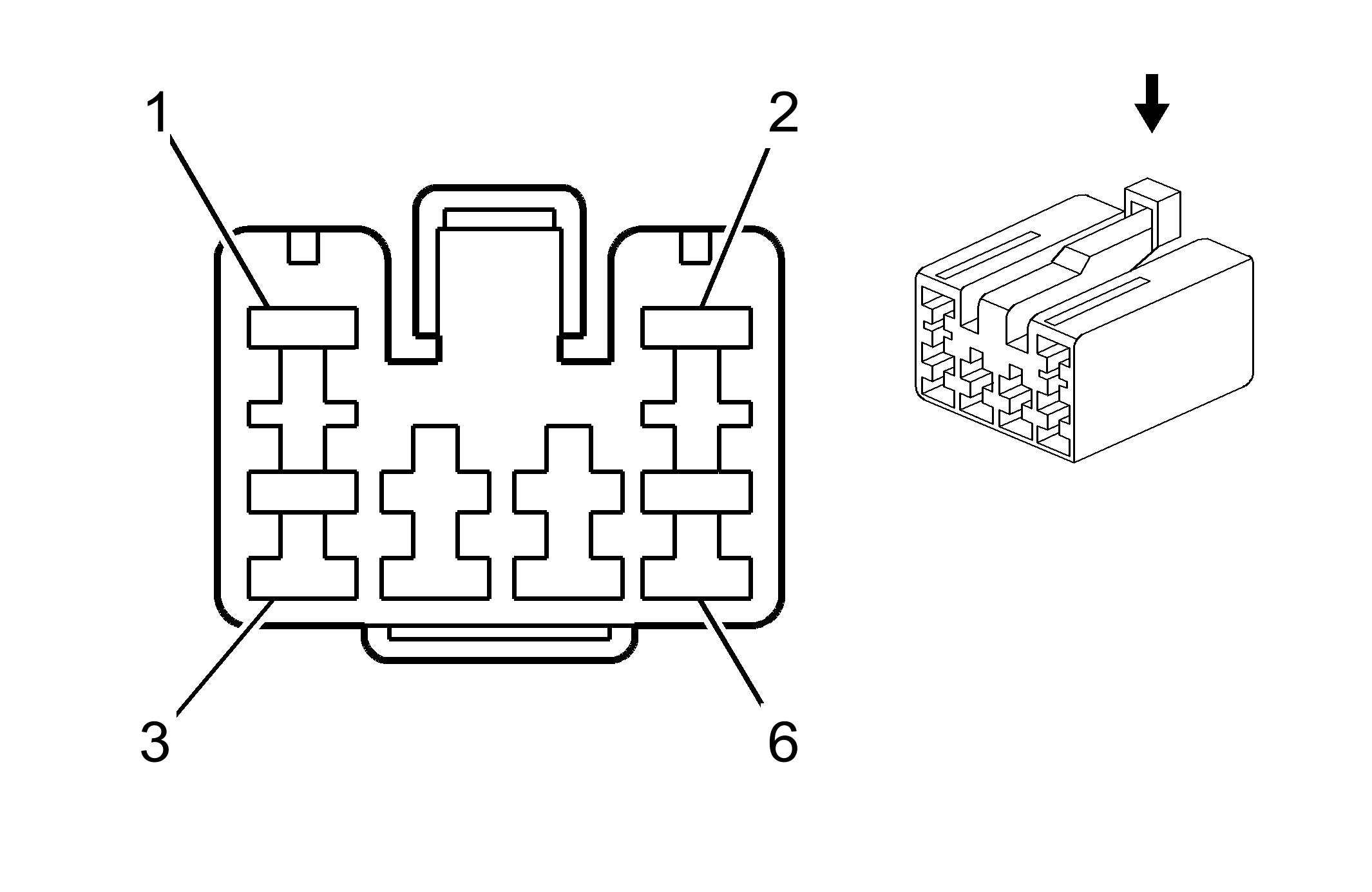

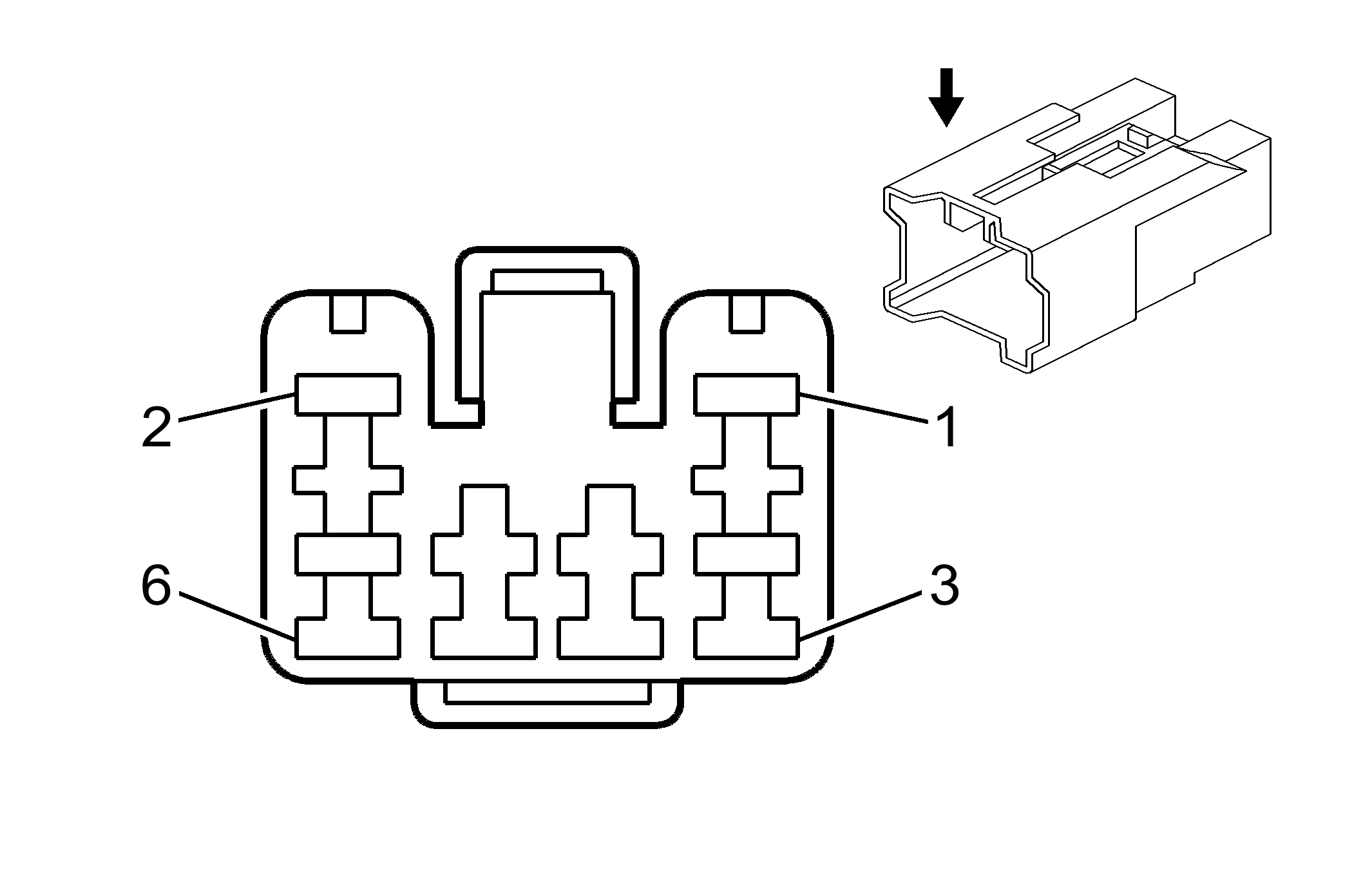

C416 Body Harness to Left Tail Lamp Jumper (Hatchback)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610152 6-Way F 090 (2.3 mm) Series (WH)		Connector Part Information		KET MG 620153 6-Way M 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	950	Ground	1	BK	450	Ground
					BK	450	Ground
2	BK	950	Ground	2	BK/YE	450	Ground
					BK/YE	450	Ground
3	L-GN	24	Backup Lamp Supply Voltage (w/Backup Lamp)	3	WH	24	Backup Lamp Supply Voltage
	RD	122	Rear Fog Lamp Supply Voltage w/Rear Fog Lamp (RHD)		WH	122	Rear Fog Lamp Supply Voltage w/Rear Fog Lamp
4	D-BU	15	Right Turn Signal Lamps Supply Voltage	4	YE	15	Right Turn Signal Lamps Supply Voltage
5	BN/WH	309	Right Park Lamp Supply Voltage	5	D-BU	709	Right Park Lamp Supply Voltage
6	BN	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal	6	RD	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal

C416 Rear Harness to Right Tail Lamp Jumper (Notchback)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610152 6-Way F 090 (2.3 mm) Series (WH)		Connector Part Information		KET MG 620153 6-Way M 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground	1	BK	450	Ground
					BK	450	Ground
2	BK	450	Ground	2	BK/YE	450	Ground
					BK/YE	450	Ground
3	L-GN	24	Backup Lamp Supply Voltage (w/Backup Lamp)	3	WH	24	Backup Lamp Supply Voltage
	RD	122	Rear Fog Lamp Supply Voltage w/Rear Fog Lamp (RHD)		WH	122	Rear Fog Lamp Supply Voltage w/Rear Fog Lamp
4	D-BU	15	Right Turn Signal Lamps Supply Voltage	4	YE	15	Right Turn Signal Lamps Supply Voltage
5	BN/WH	309	Right Park Lamp Supply Voltage	5	D-BU	709	Right Park Lamp Supply Voltage
6	BN	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal	6	RD	20	Stop Lamp Supply Voltage/Stop Lamp Switch Signal
