Brake Warning System Schematics (Mando ABS)

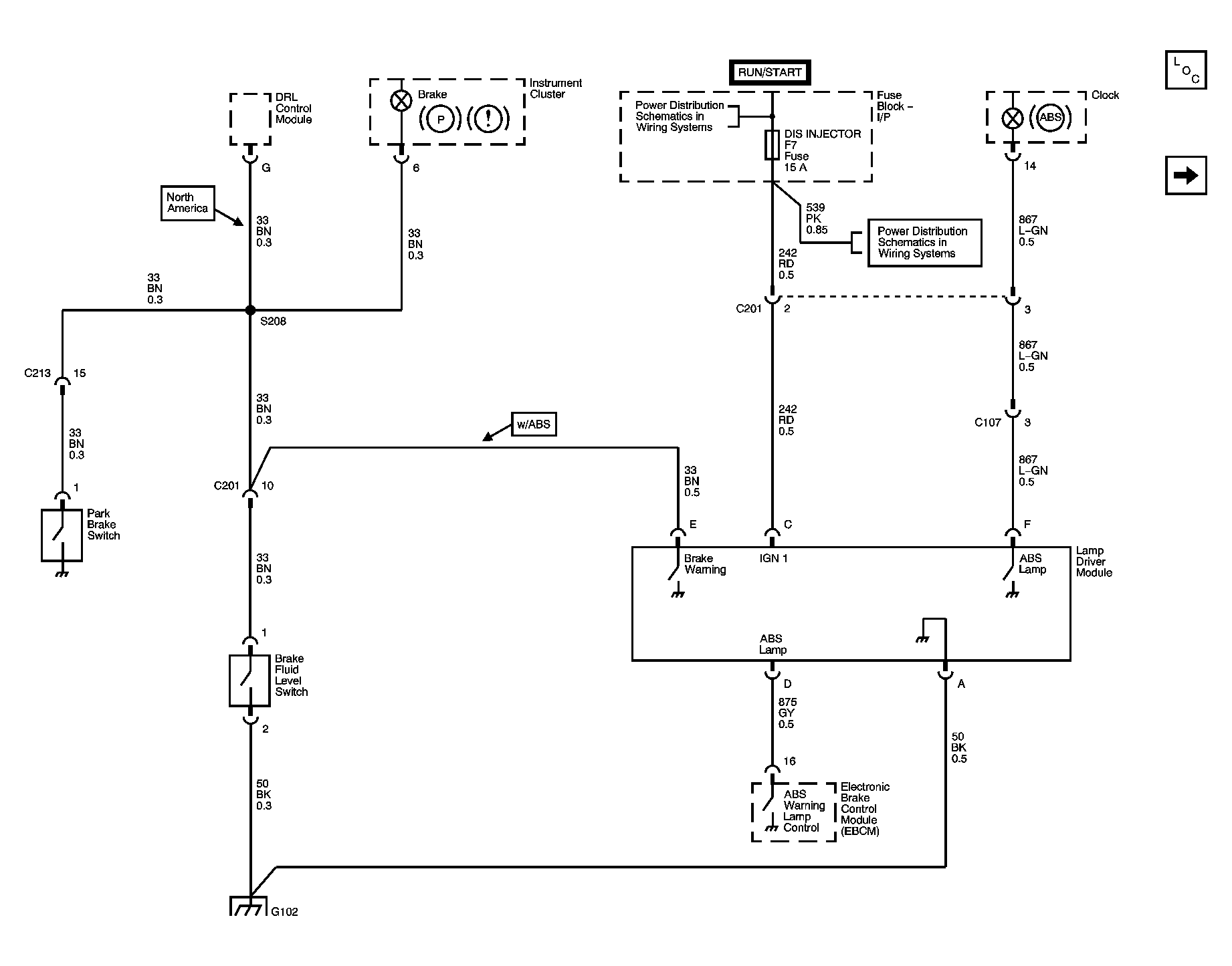

Fig 1: LHD Schematics

GM1509915

Courtesy of GENERAL MOTORS CORP.

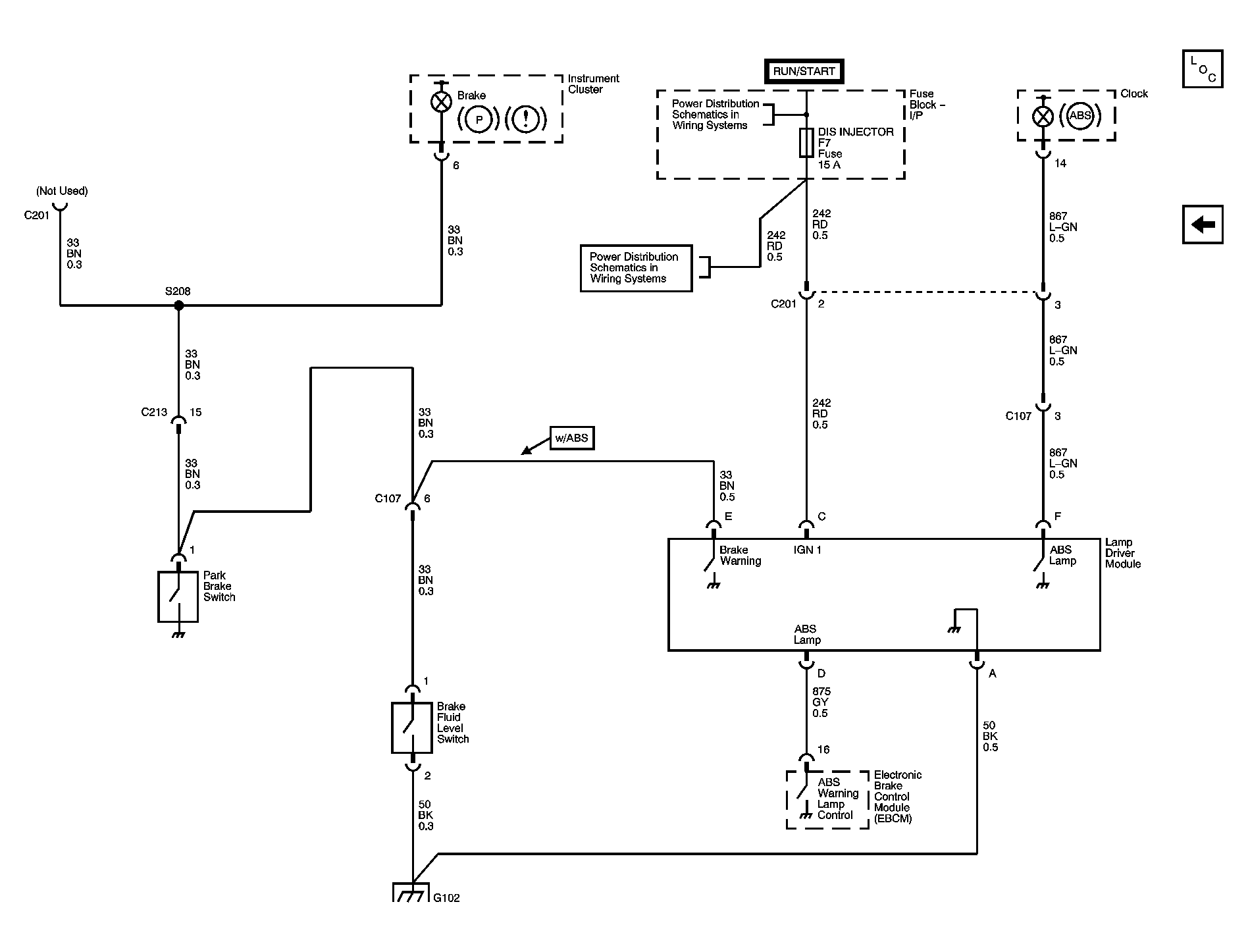

Fig 2: RHD Schematics

GM1509916

Courtesy of GENERAL MOTORS CORP.
