SIR Schematics

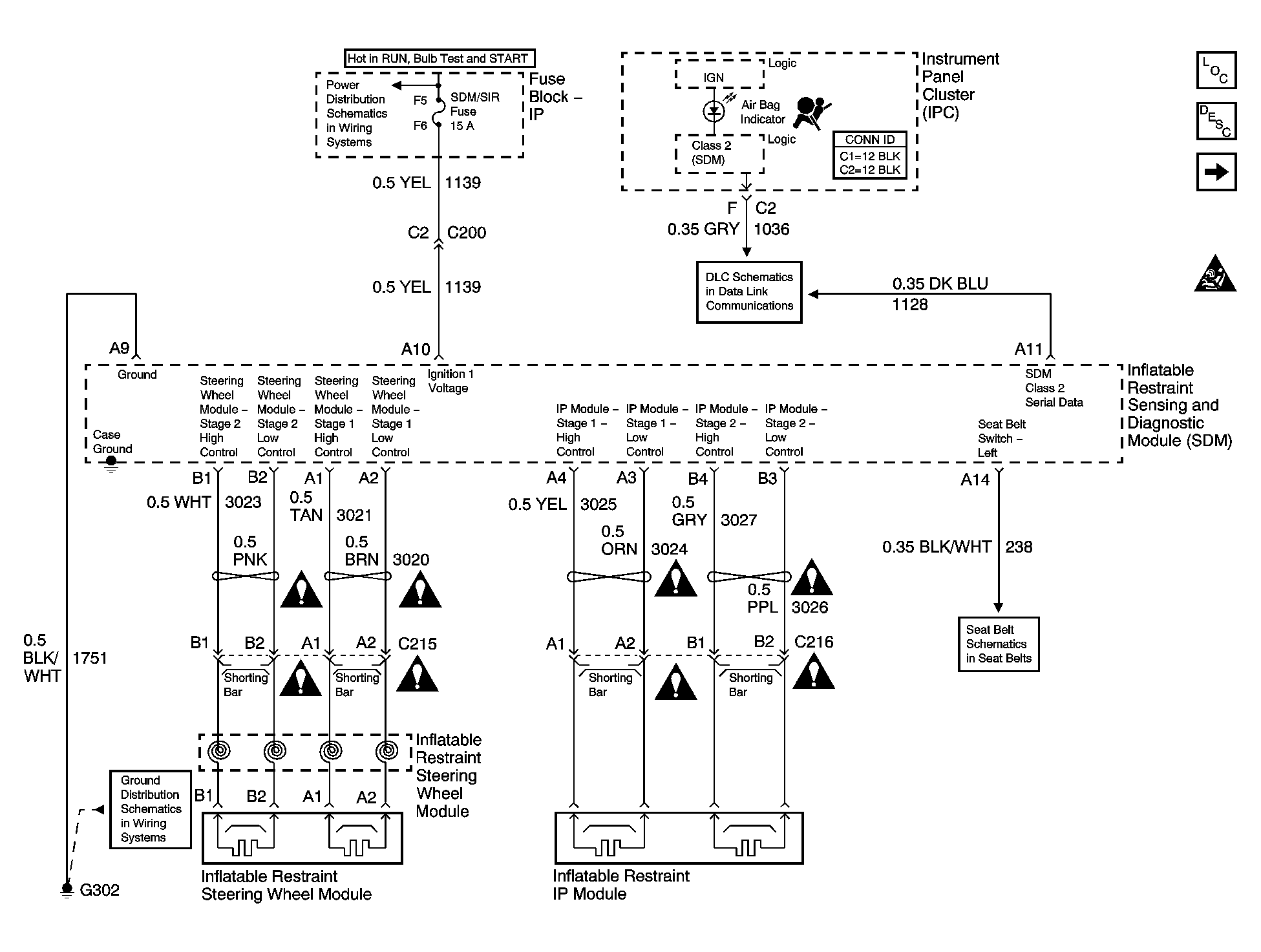

Fig 1: Power, Ground, DLC, and SIR Lamp Schematic

GM763741

Courtesy of GENERAL MOTORS CORP.

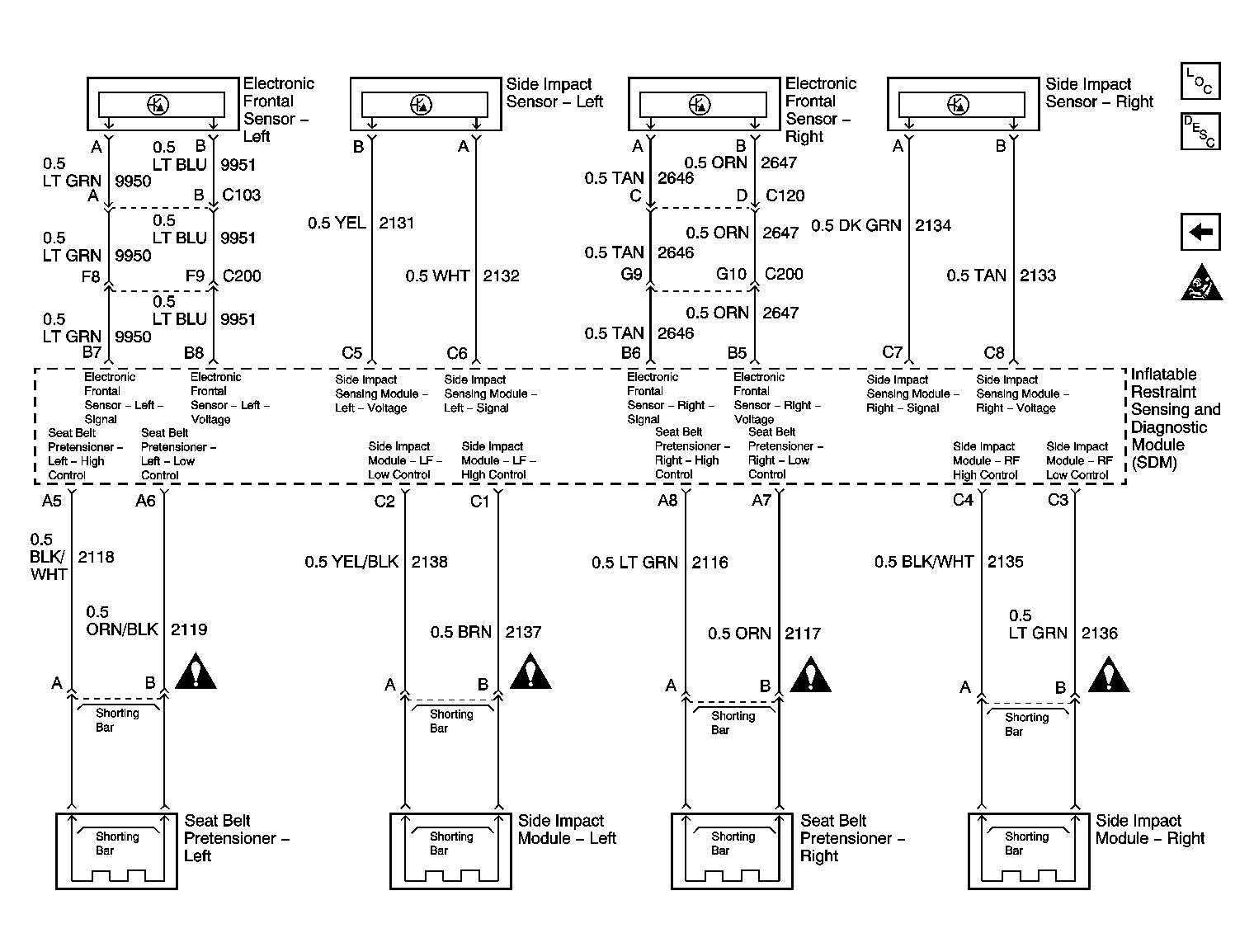

Fig 2: Sensors, Pretensioners, Frontal and Side Air Bags Schematic

GM763743

Courtesy of GENERAL MOTORS CORP.
