Body Rear End Schematics

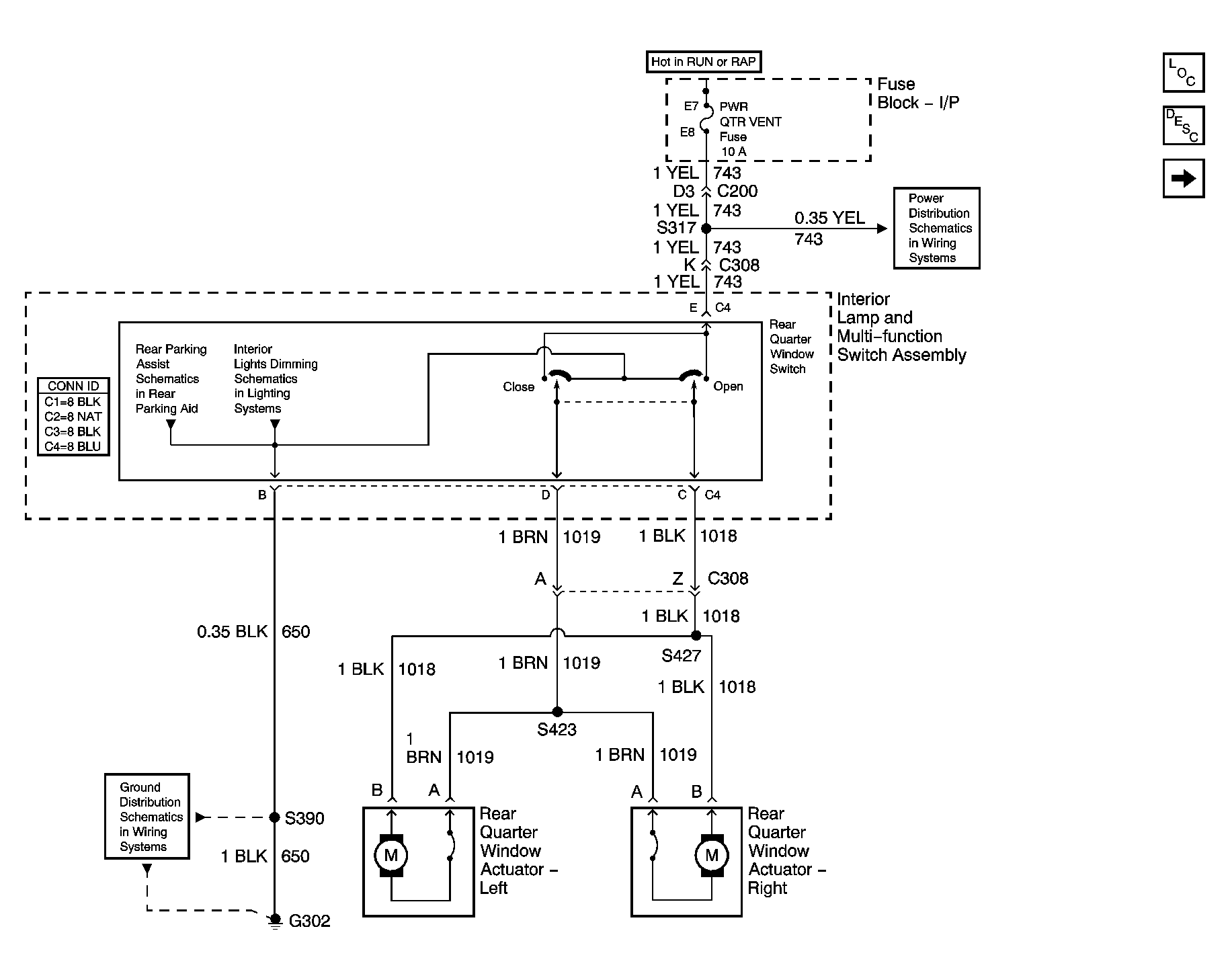

Fig 1: Rear Quarter Windows

GM675496

Courtesy of GENERAL MOTORS CORP.

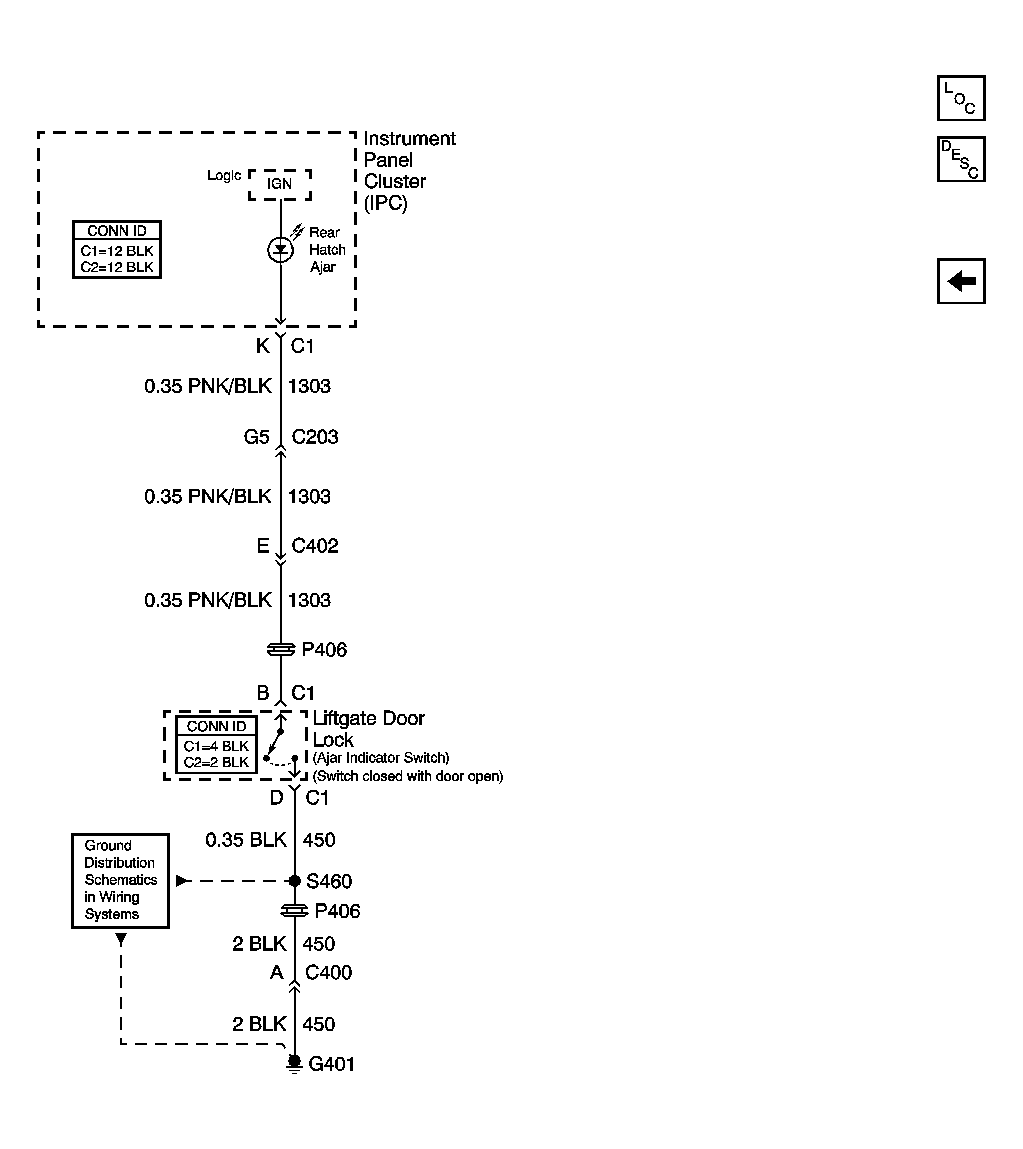

Fig 2: I/P REAR HATCH AJAR Telltale

GM675501

Courtesy of GENERAL MOTORS CORP.
