Radio/Audio System Schematics

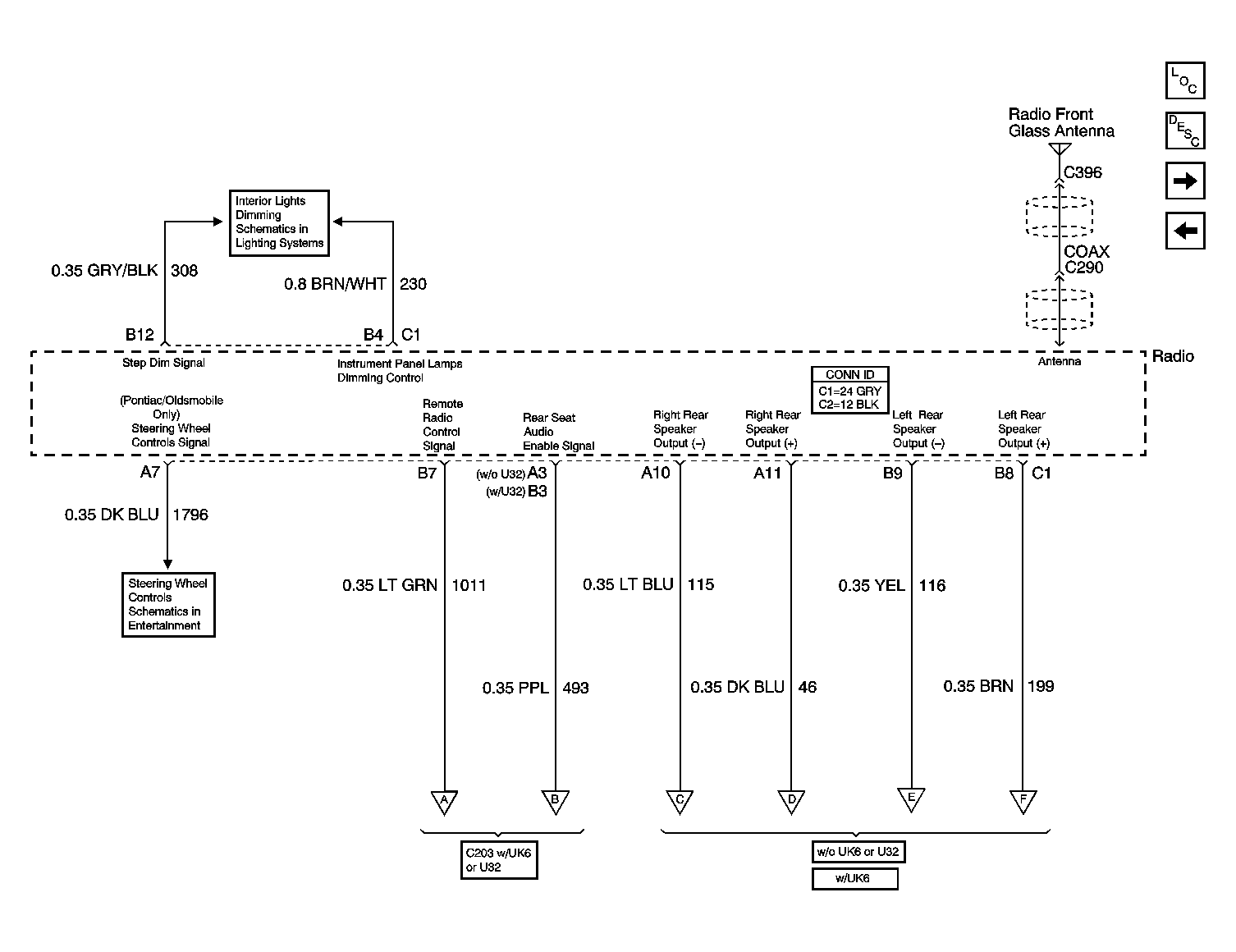

Fig 1: Power and Grounds

Courtesy of GENERAL MOTORS CORP.

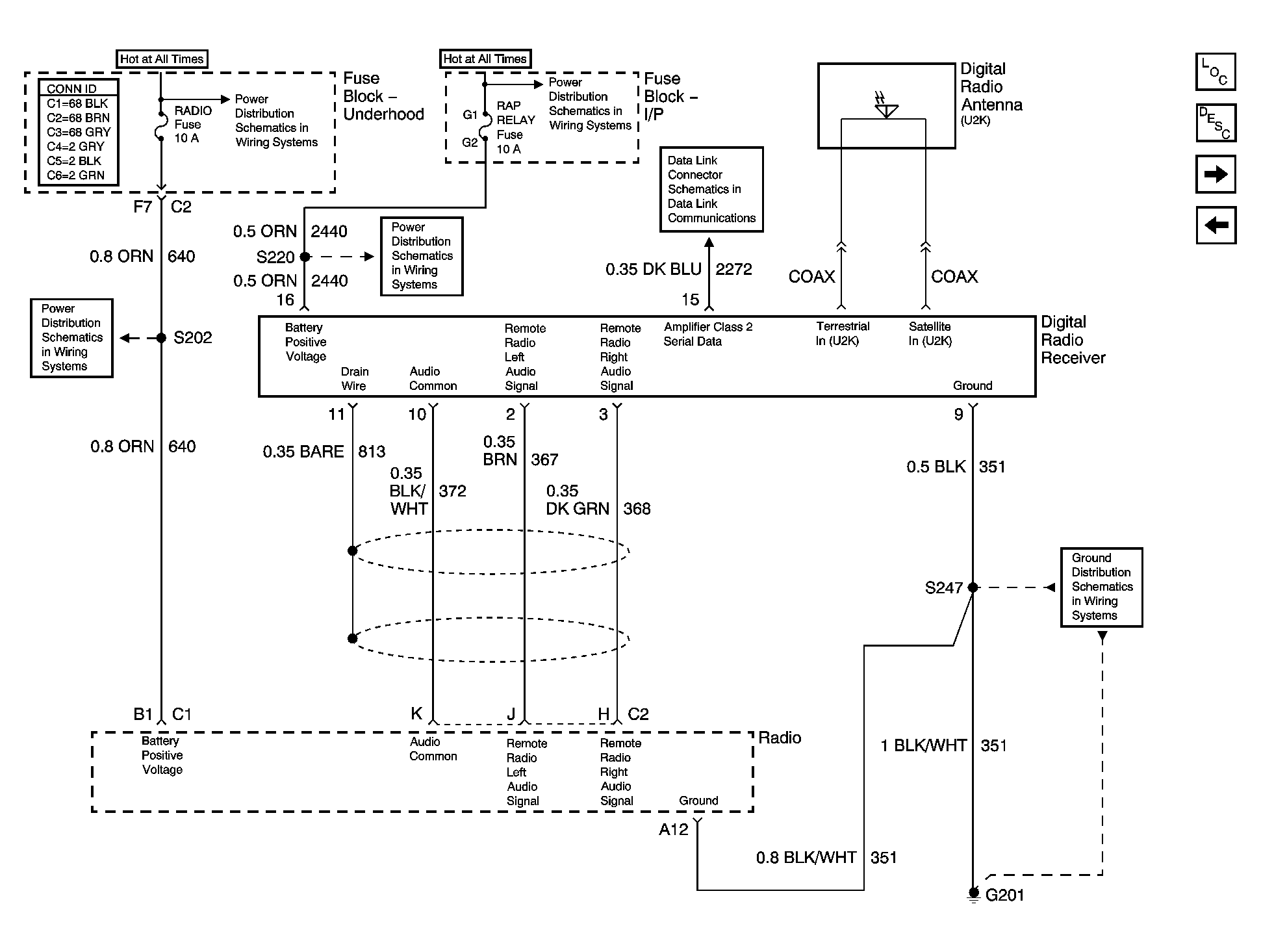

Fig 2: Windshield Antenna

Courtesy of GENERAL MOTORS CORP.

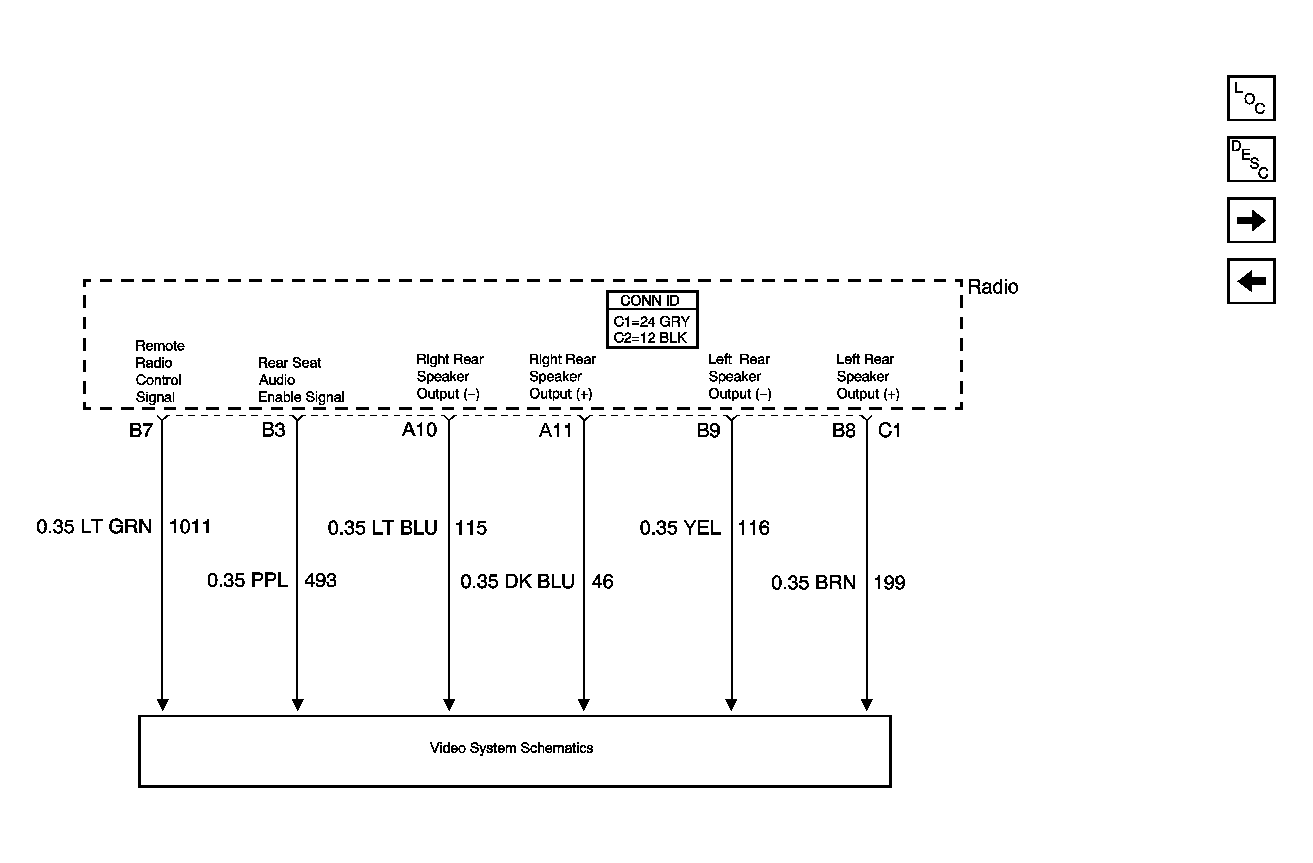

Fig 3: Rear Seat Audio (RSA) Controls w/U32

Courtesy of GENERAL MOTORS CORP.

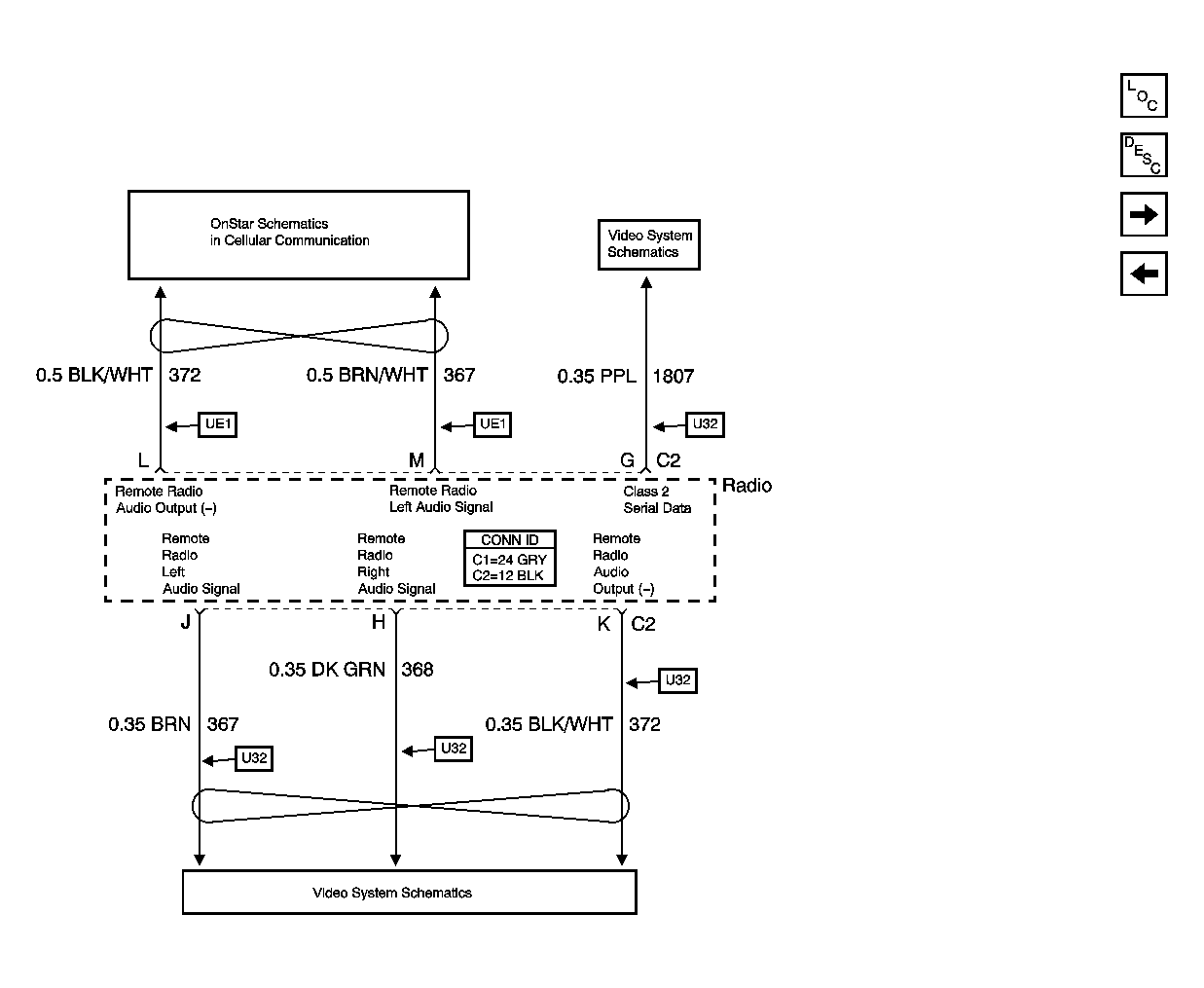

Fig 4: Radio and Class 2 Serial Data

Courtesy of GENERAL MOTORS CORP.

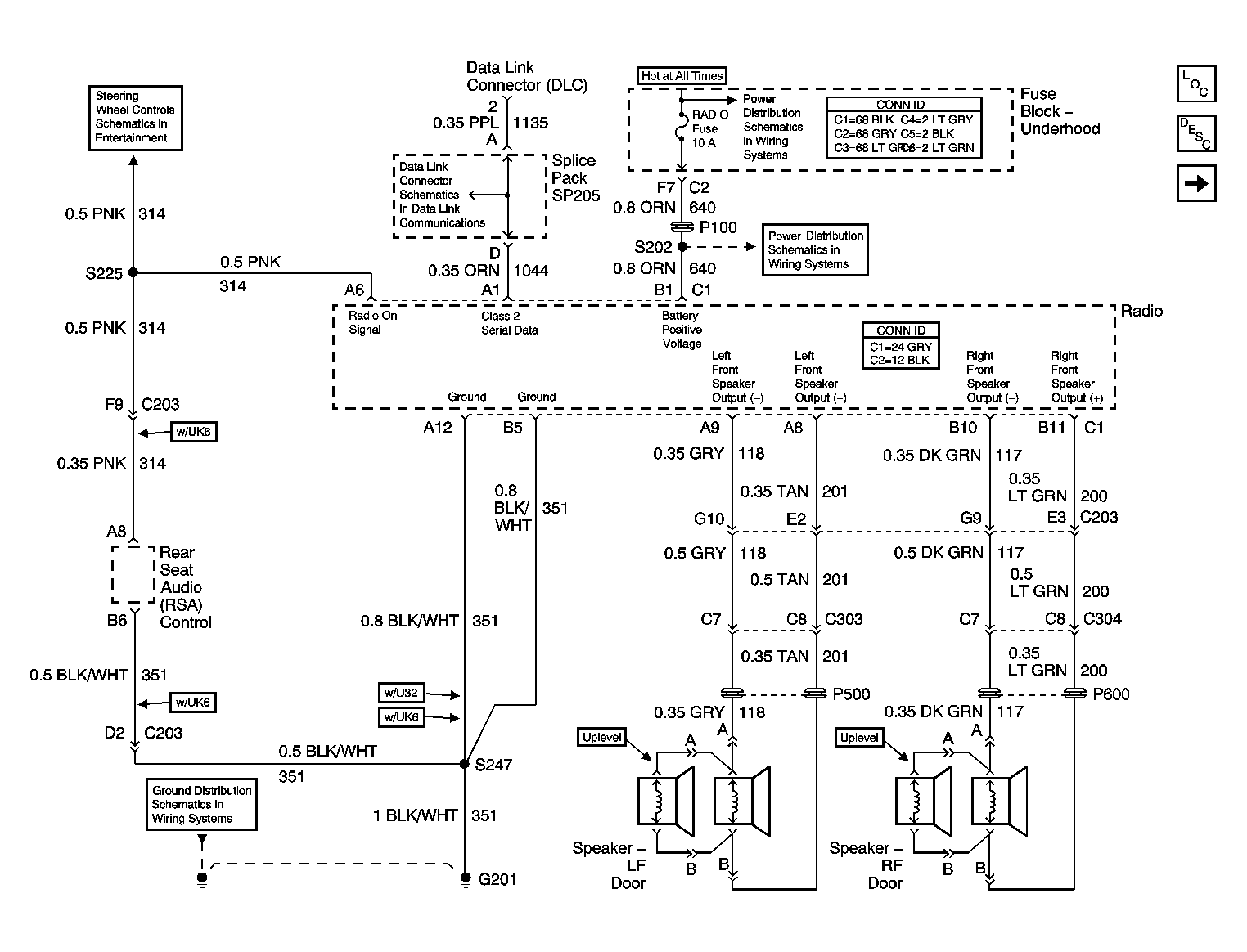

Fig 5: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

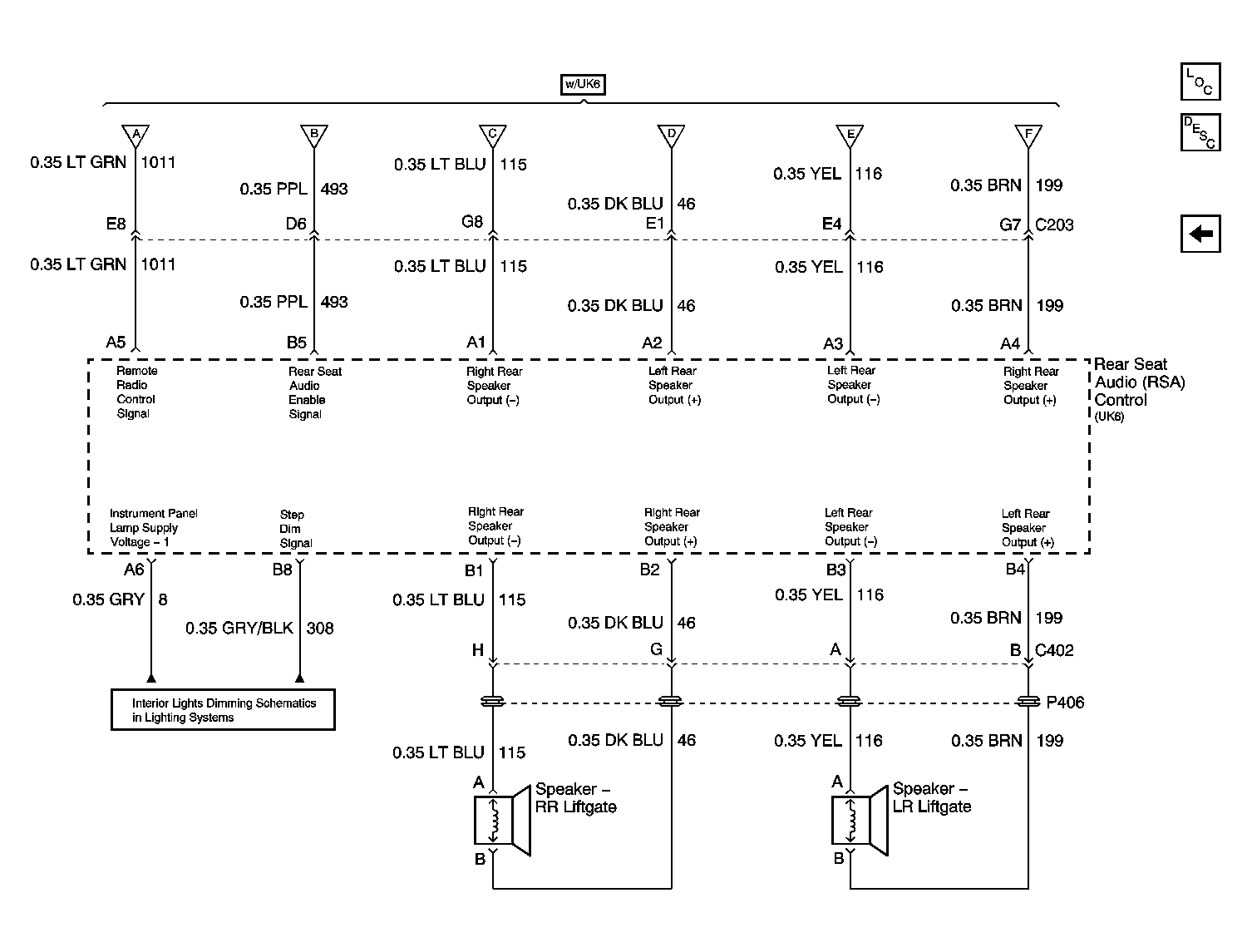

Fig 6: Right and Left Radio Liftgate Speaker (Base)

Courtesy of GENERAL MOTORS CORP.

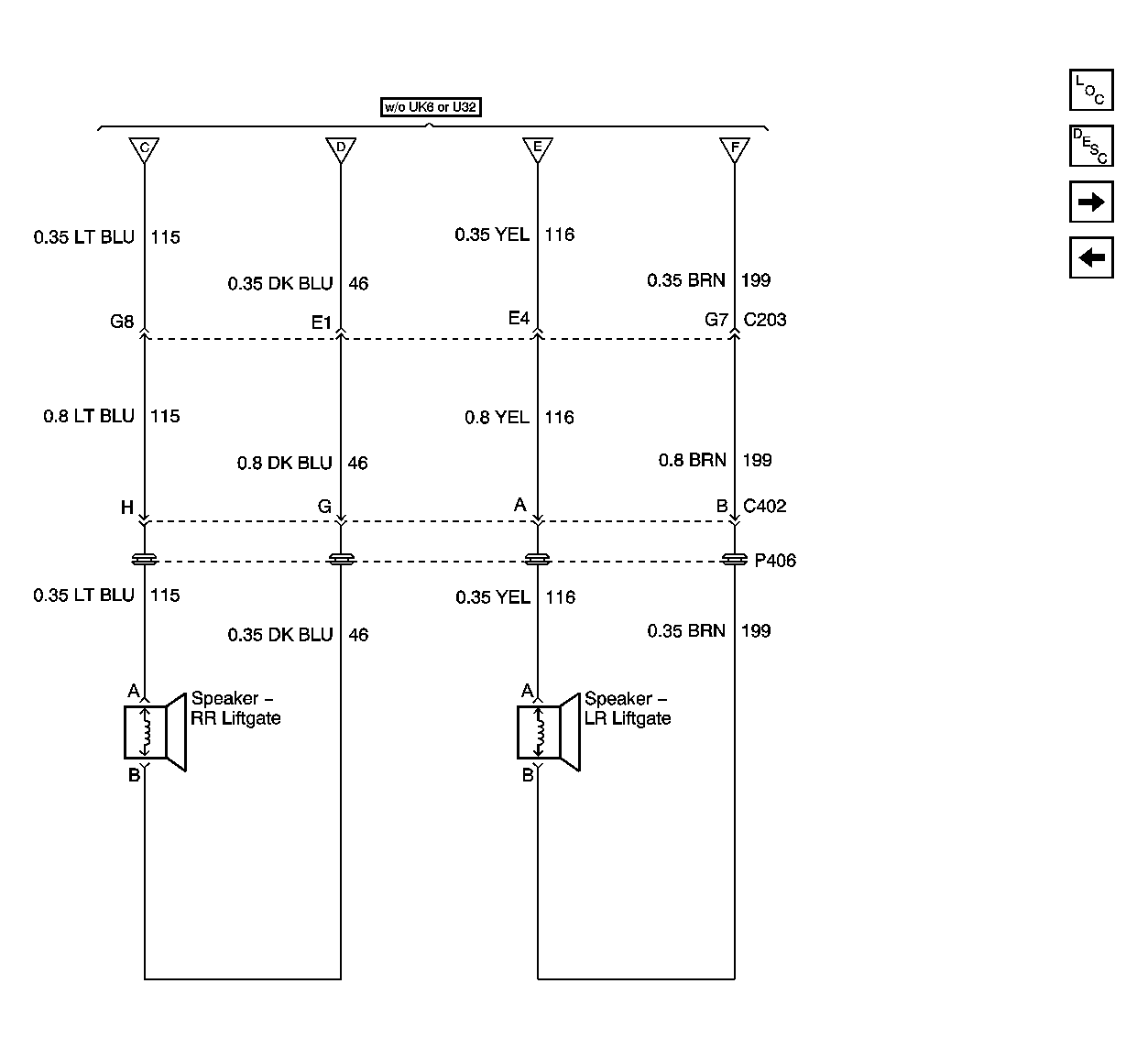

Fig 7: Right and Left Radio Liftgate Speakers (Uplevel)

Courtesy of GENERAL MOTORS CORP.
