Driver Information System Schematics

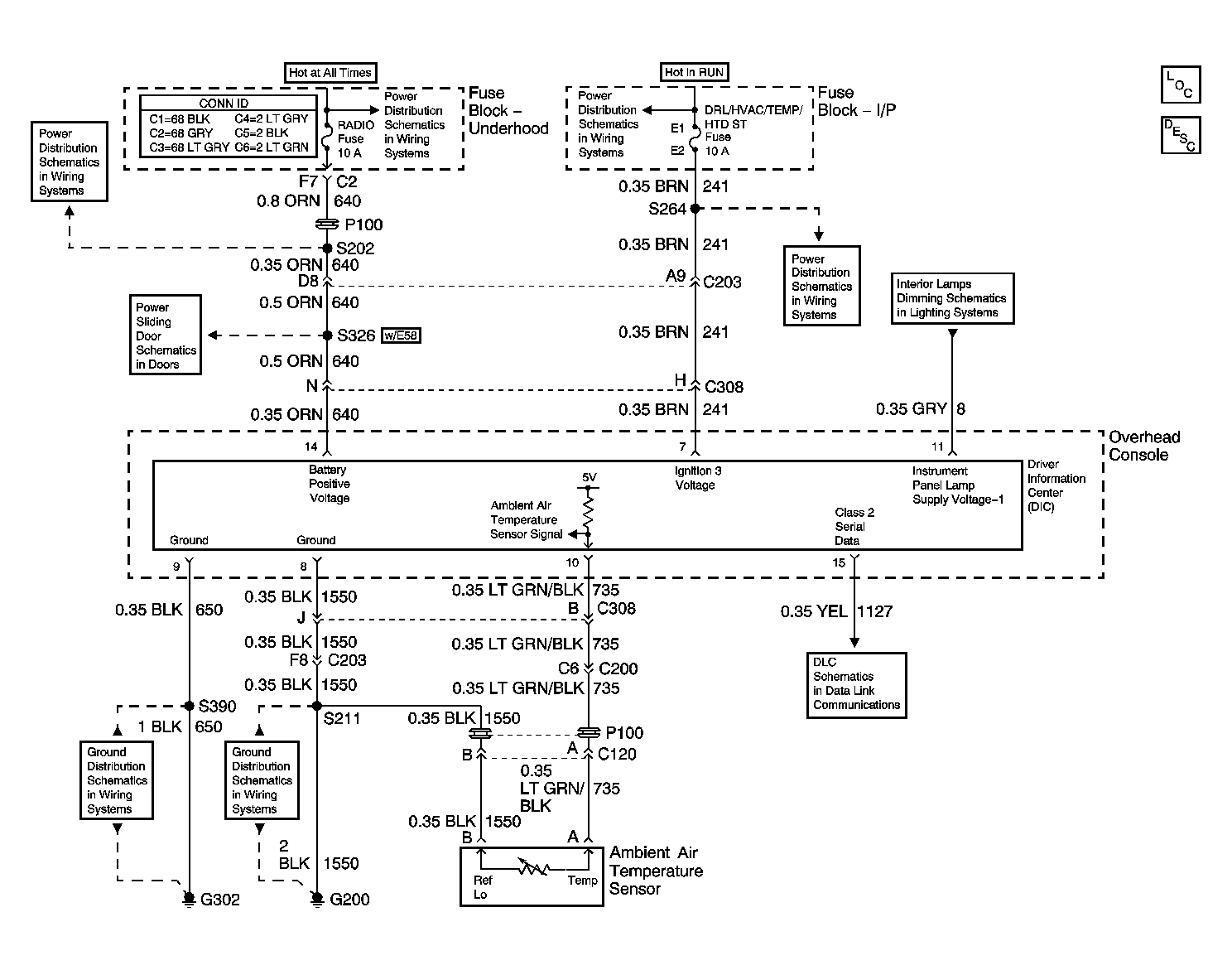

Fig 1: Driver Information System

GM675248

Courtesy of GENERAL MOTORS CORP.
