Installation Procedure

  1. Connect the electrical connectors.

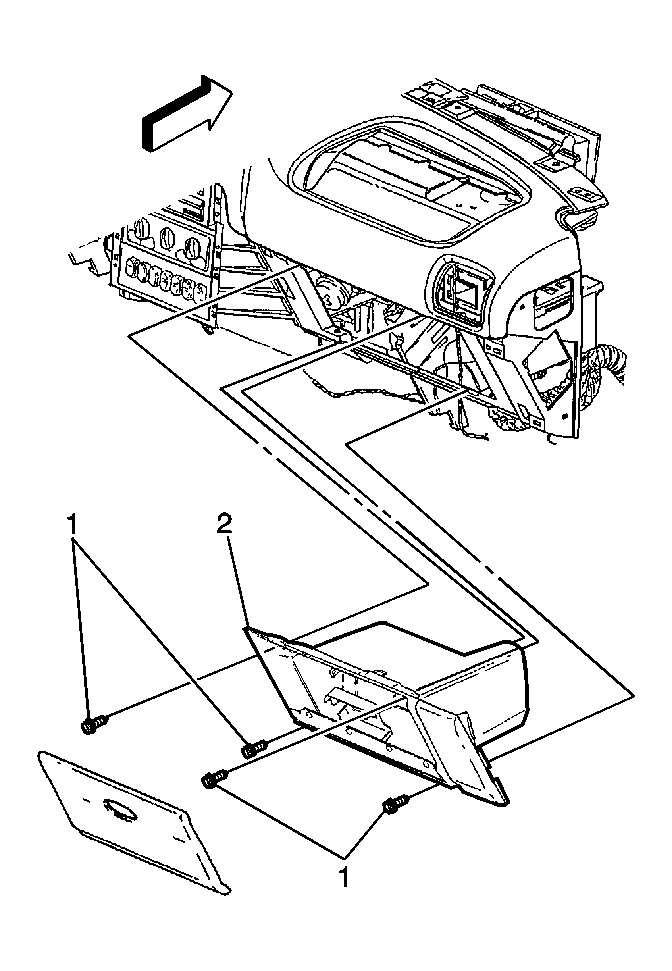

    2. Fig 1: View Of IP Compartment Assembly
    GM318214Courtesy of GENERAL MOTORS CORP.
  2. Slide the IP compartment into the opening in the instrument panel.
  3. Align the locator pins into the hole in the instrument panel.
  4. Align the retaining clips with the slots.
  5. Push in the IP compartment until secure.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the screws (1) to the IP compartment.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  7. Close the IP compartment door.
