Instrument Panel, Gages, and Console Component Views

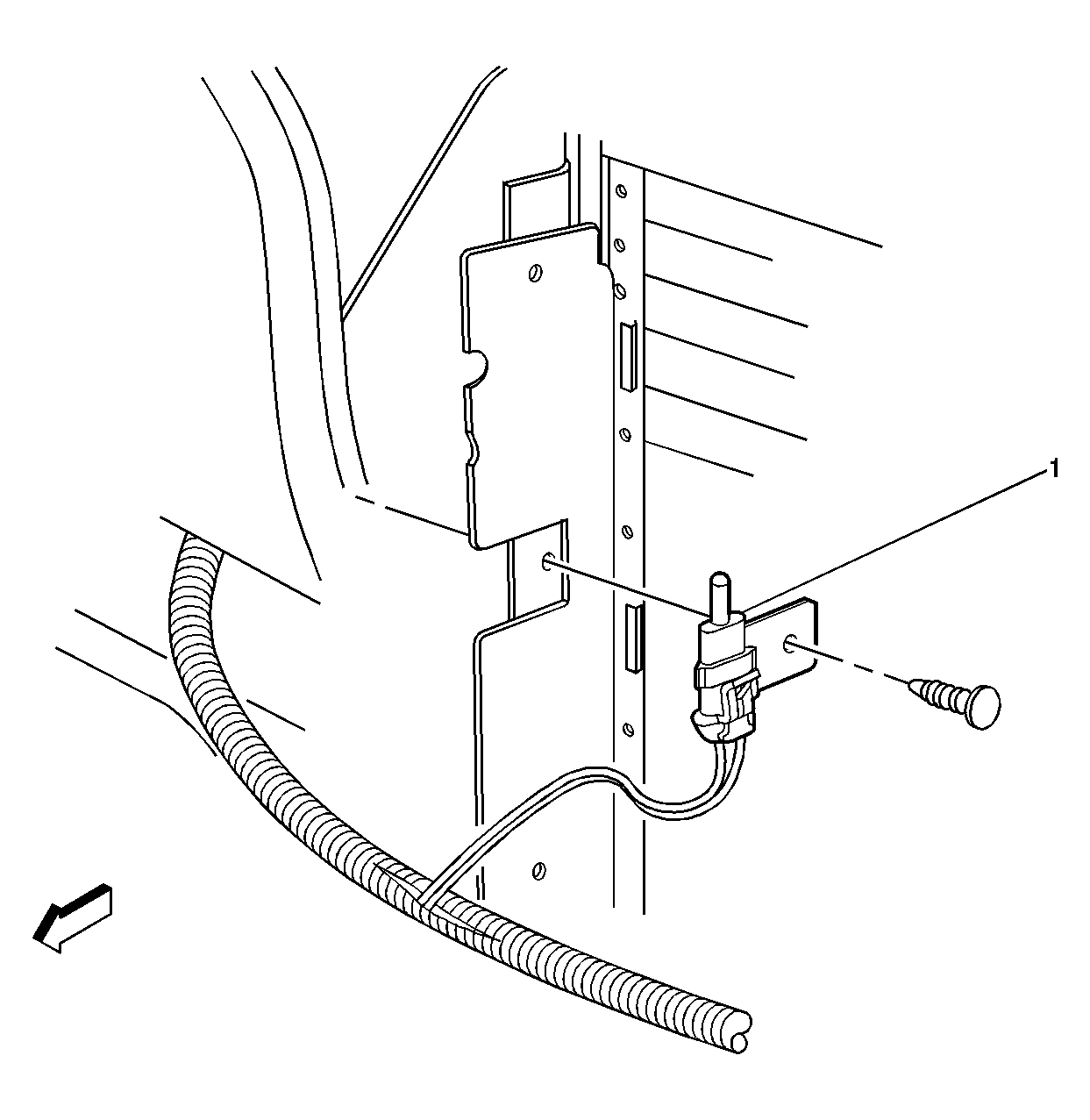

Fig 1: Radiator Support Front of the Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

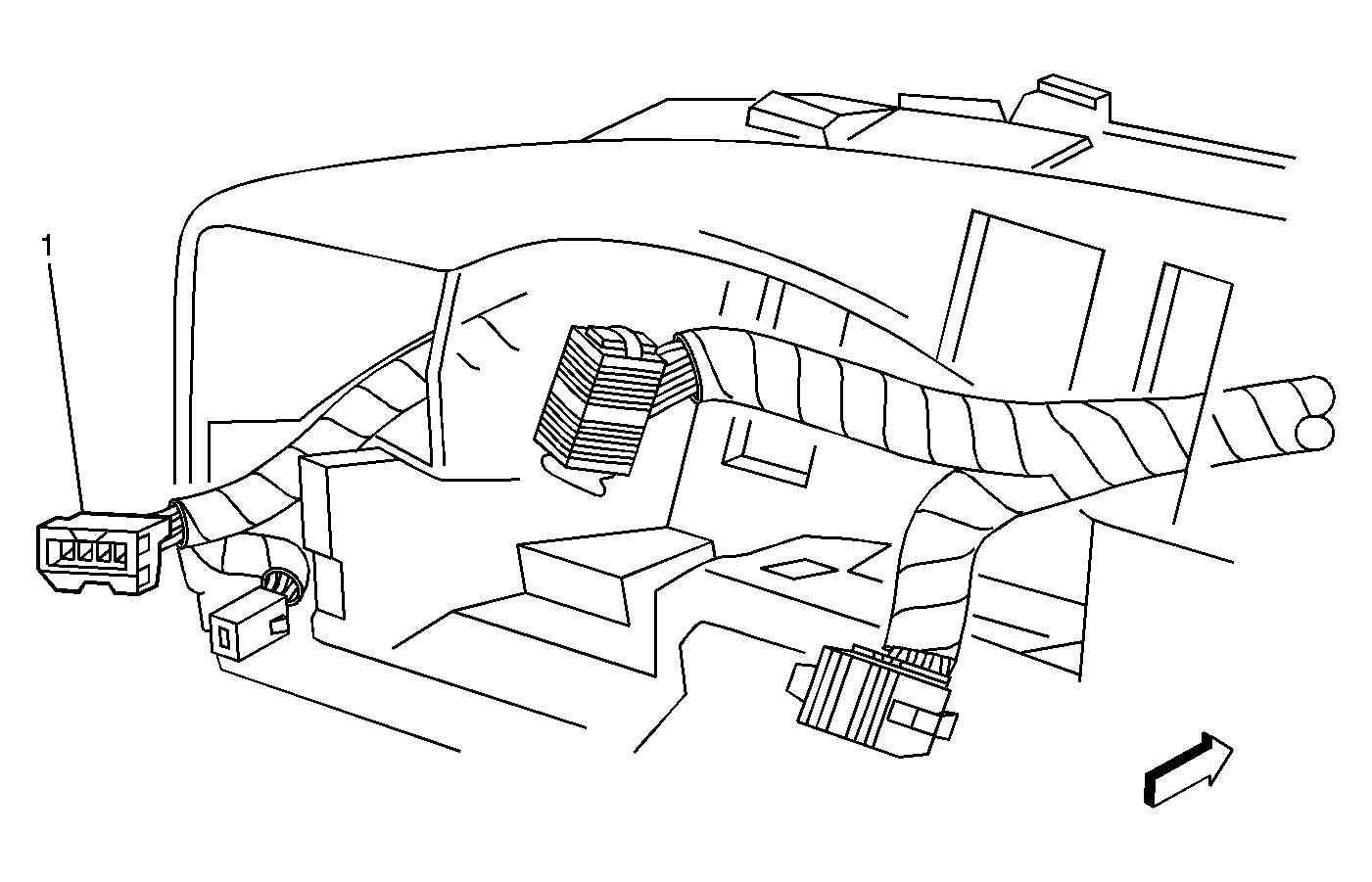

Fig 2: LH Side of I/P, Above Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC) Connector

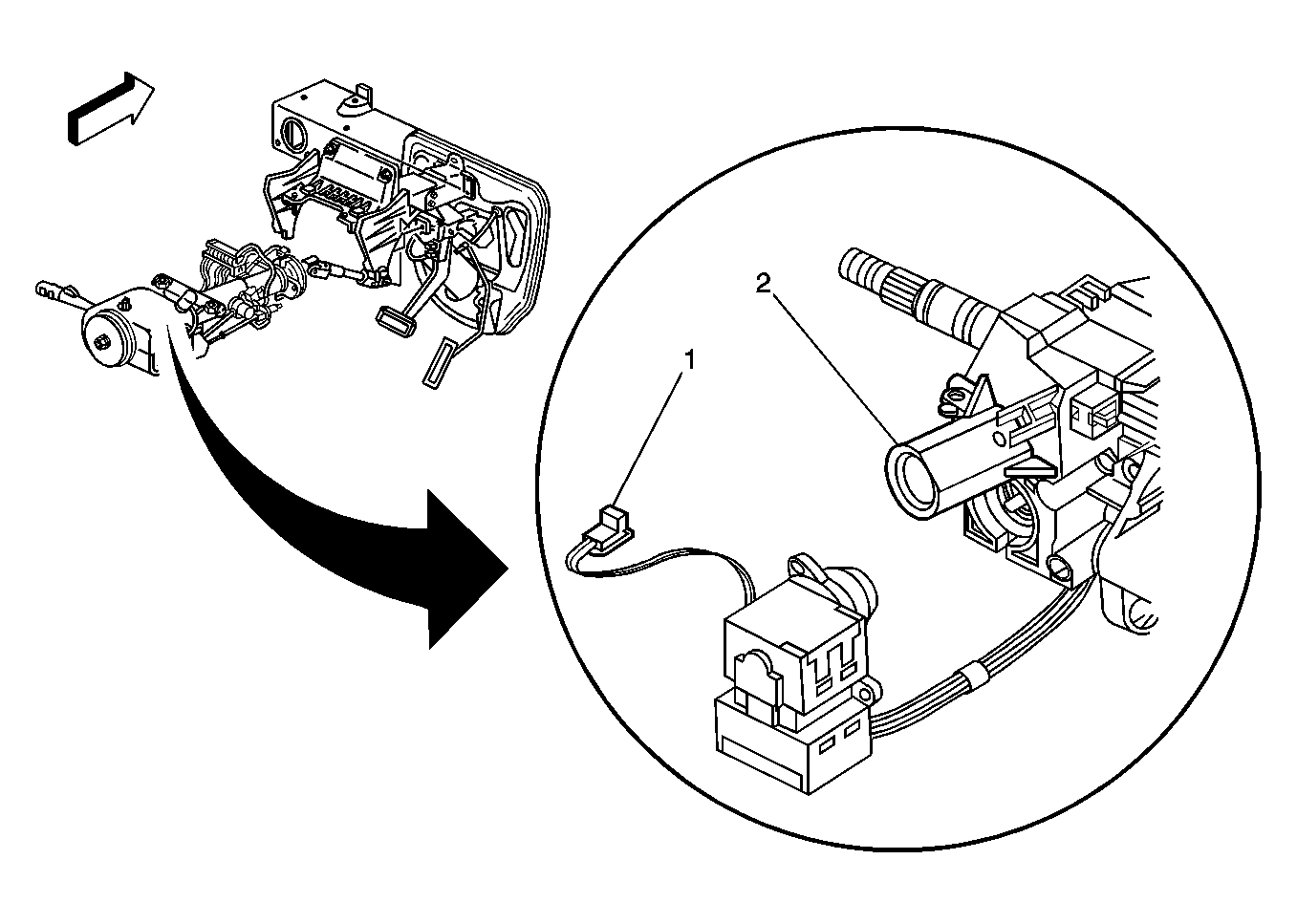

Fig 3: Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Key Alarm Switch
2	Lock Module Assembly

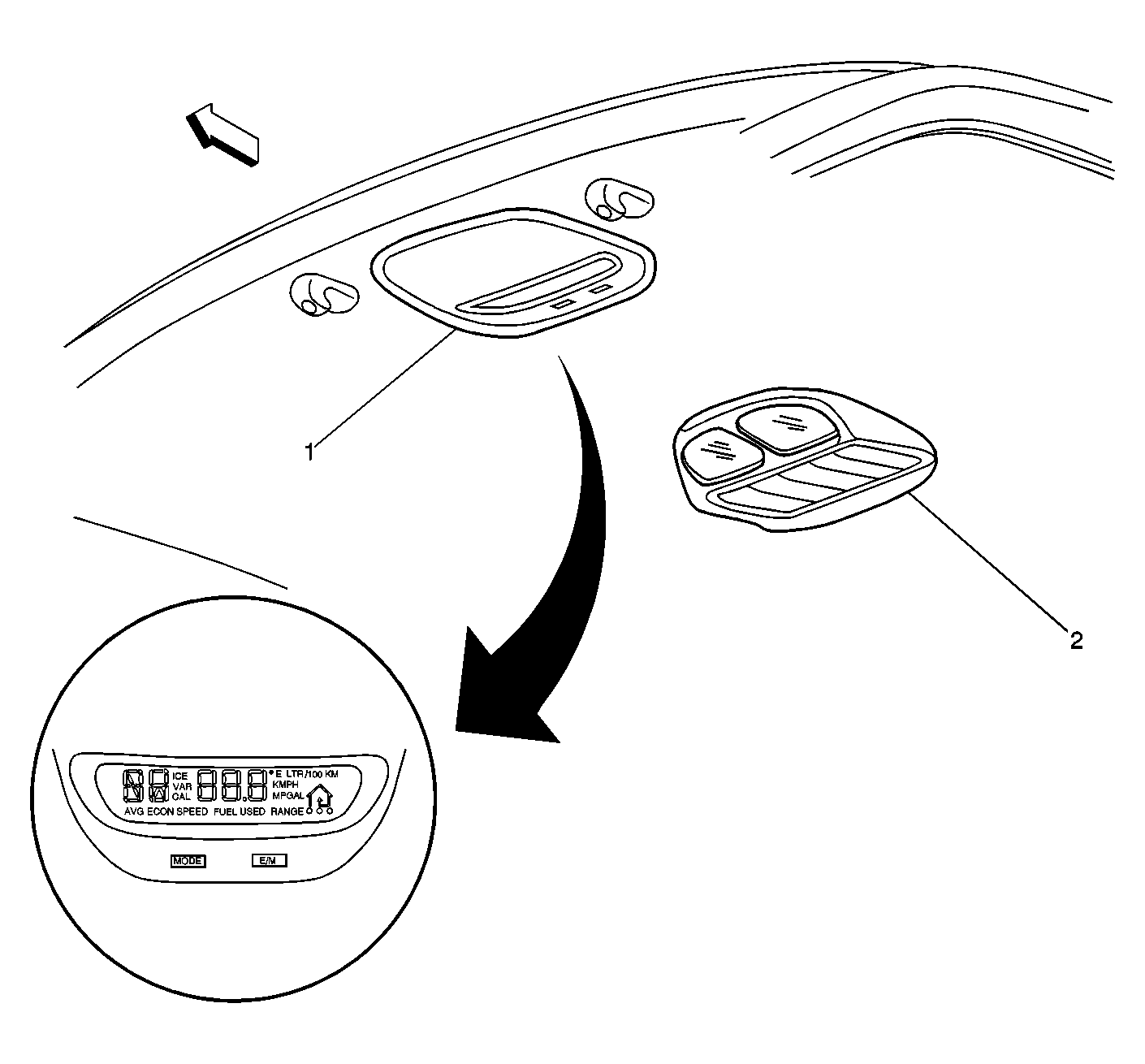

Fig 4: Overhead Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC)
2	Interior Lamp and Multifunction Switch Assembly
