Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G100, G102, & G103 Schematic

Courtesy of GENERAL MOTORS CORP.

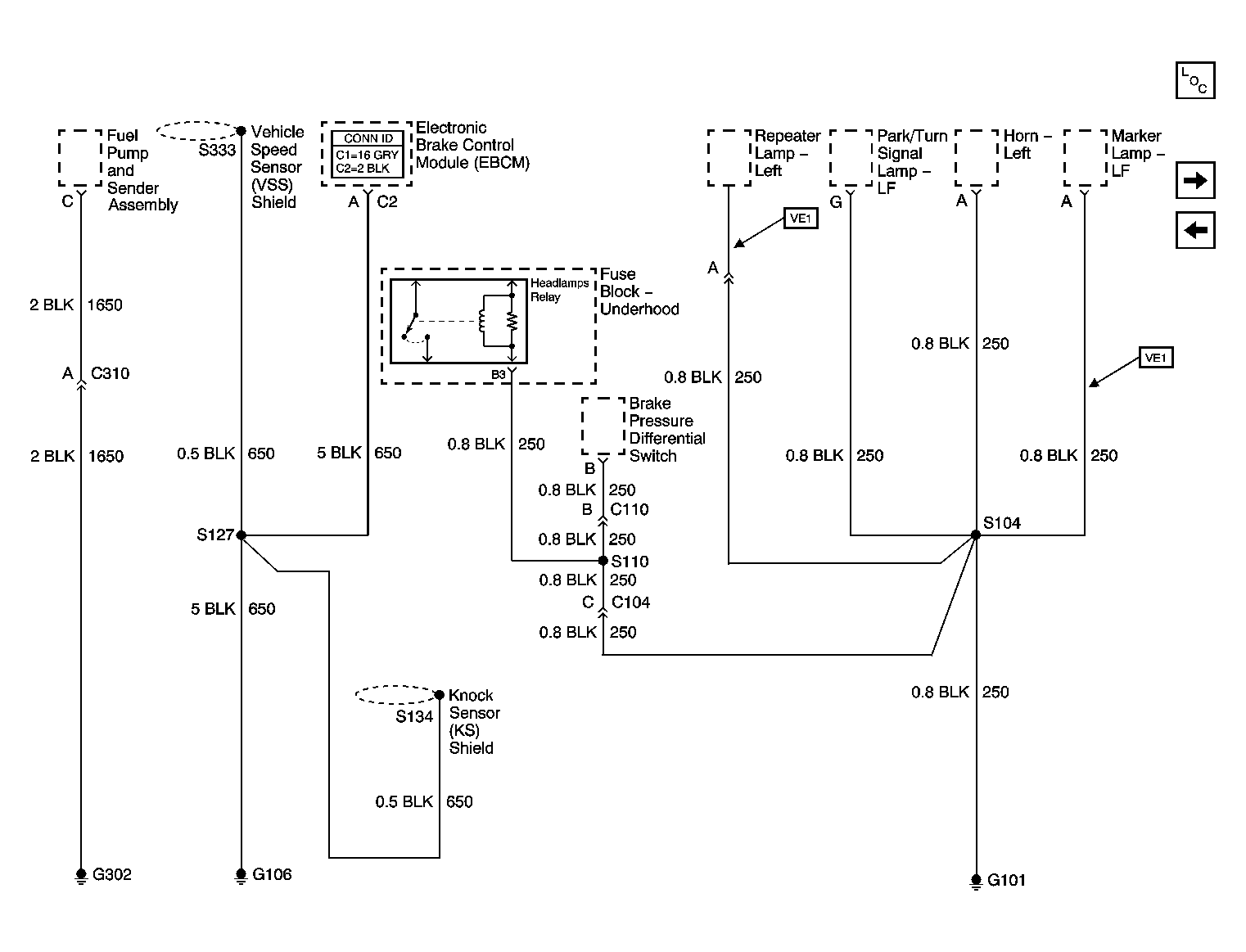

Fig 2: G100, G106, & G302 Schematic

Courtesy of GENERAL MOTORS CORP.

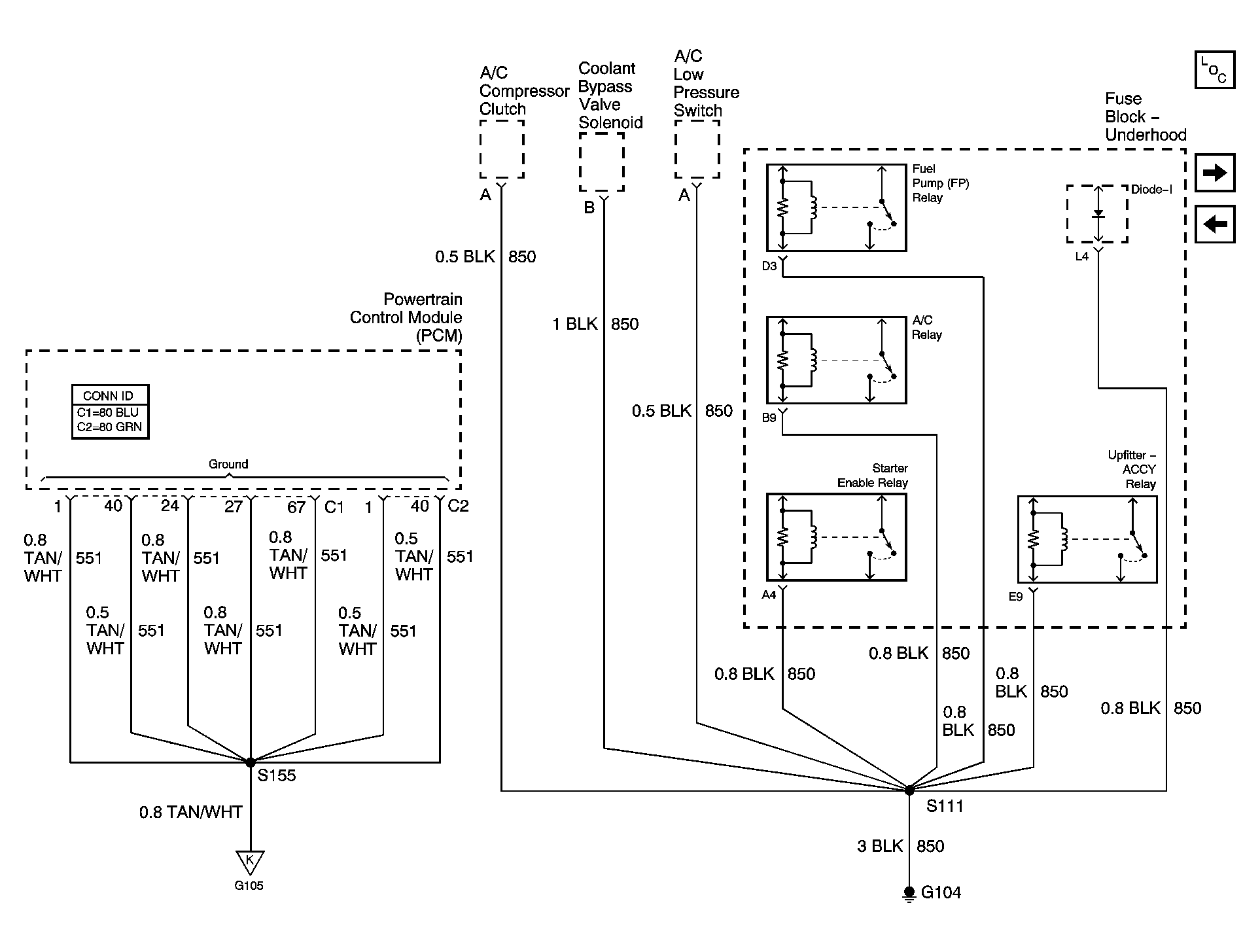

Fig 3: G104 Schematic

Courtesy of GENERAL MOTORS CORP.

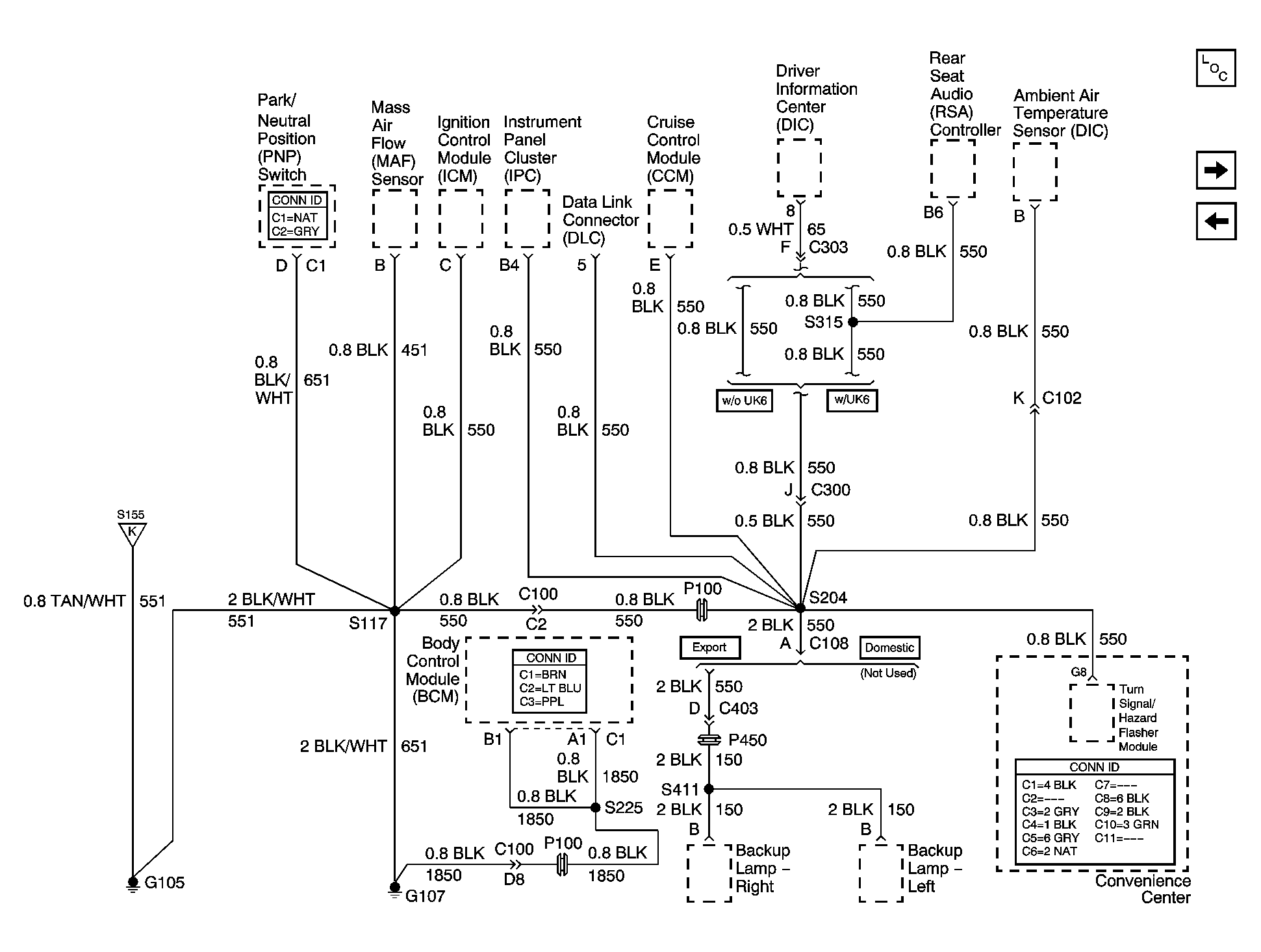

Fig 4: G105 & G107 Schematic

Courtesy of GENERAL MOTORS CORP.

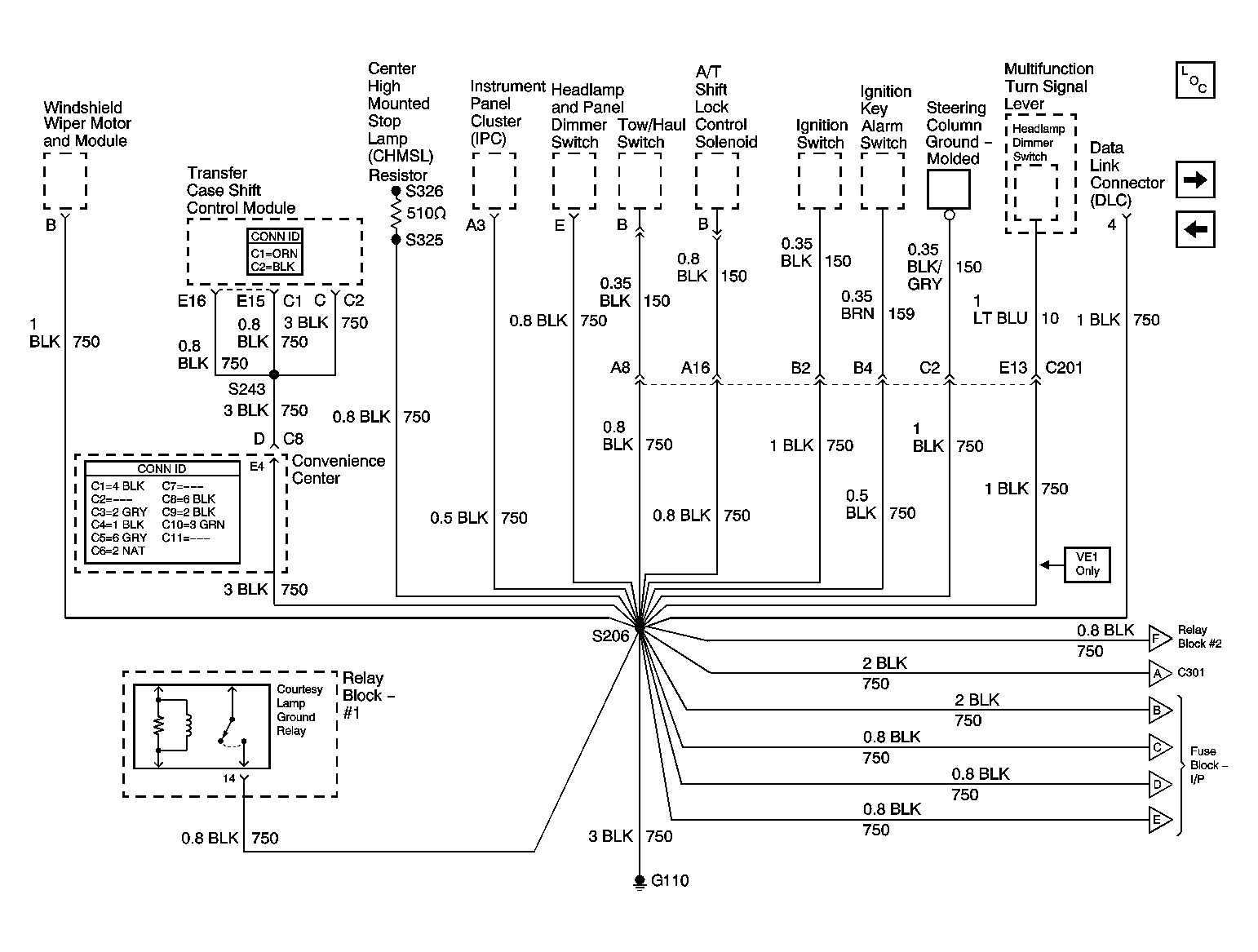

Fig 5: G110 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

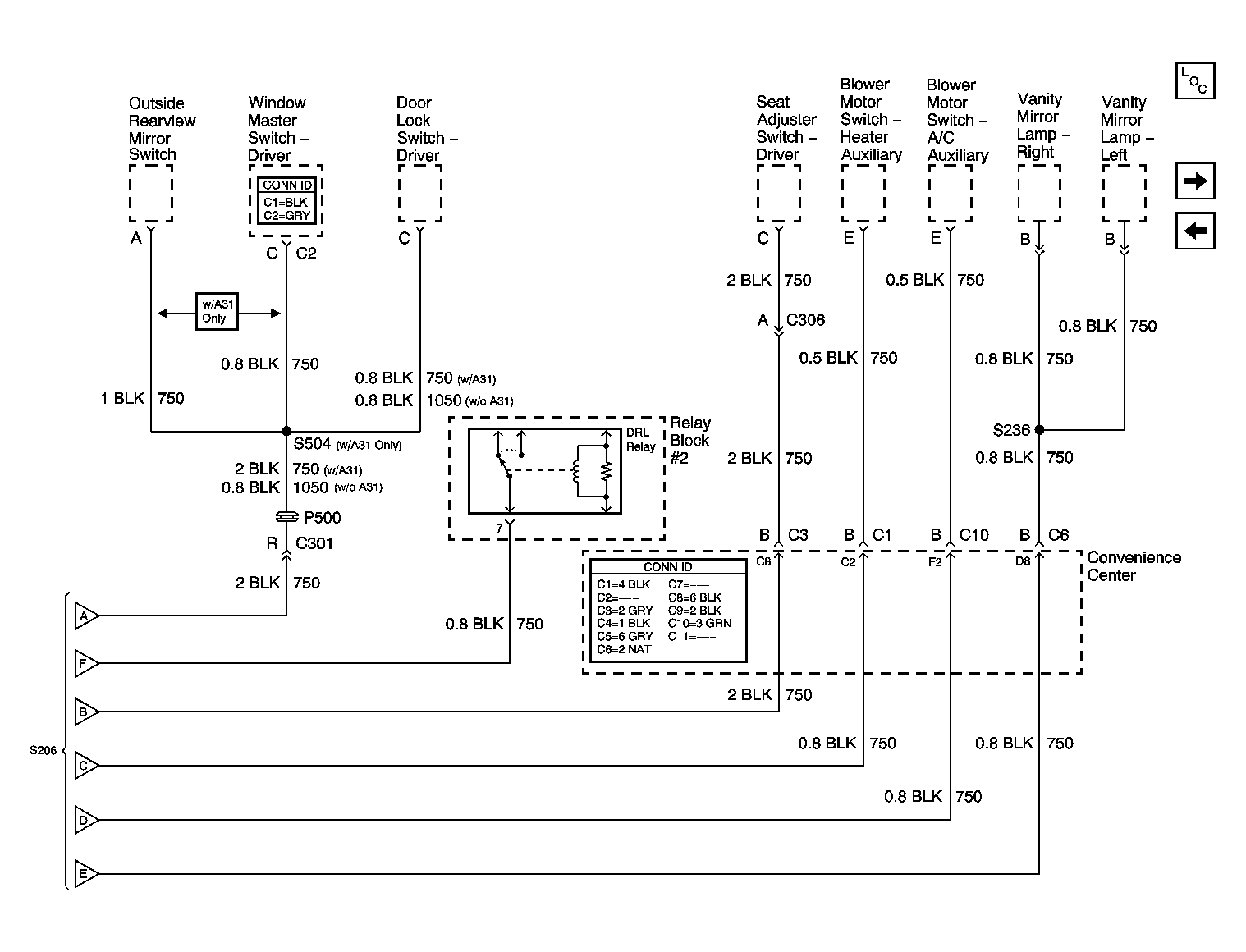

Fig 6: G110 Schematic - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

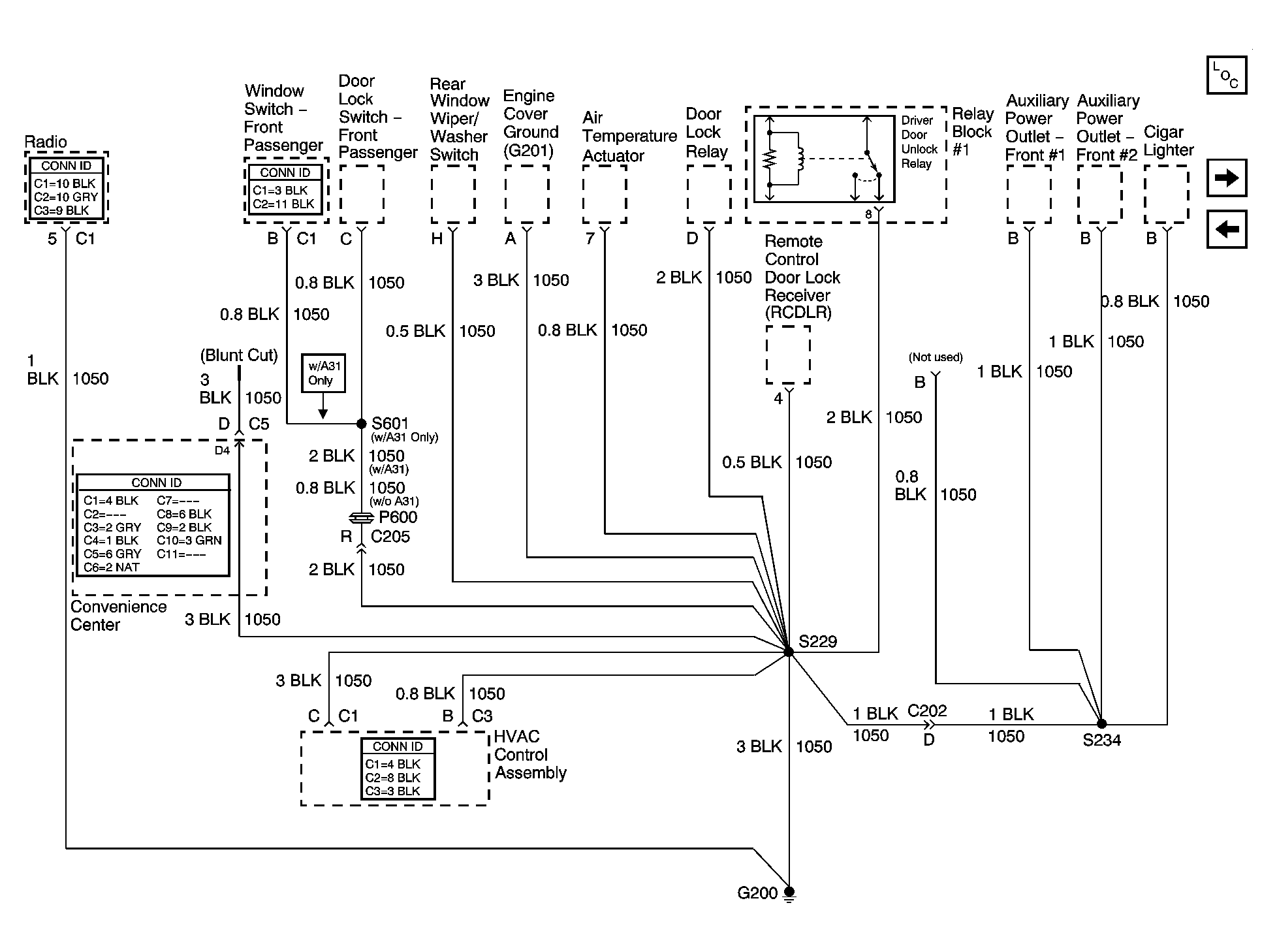

Fig 7: G200 Schematic

Courtesy of GENERAL MOTORS CORP.

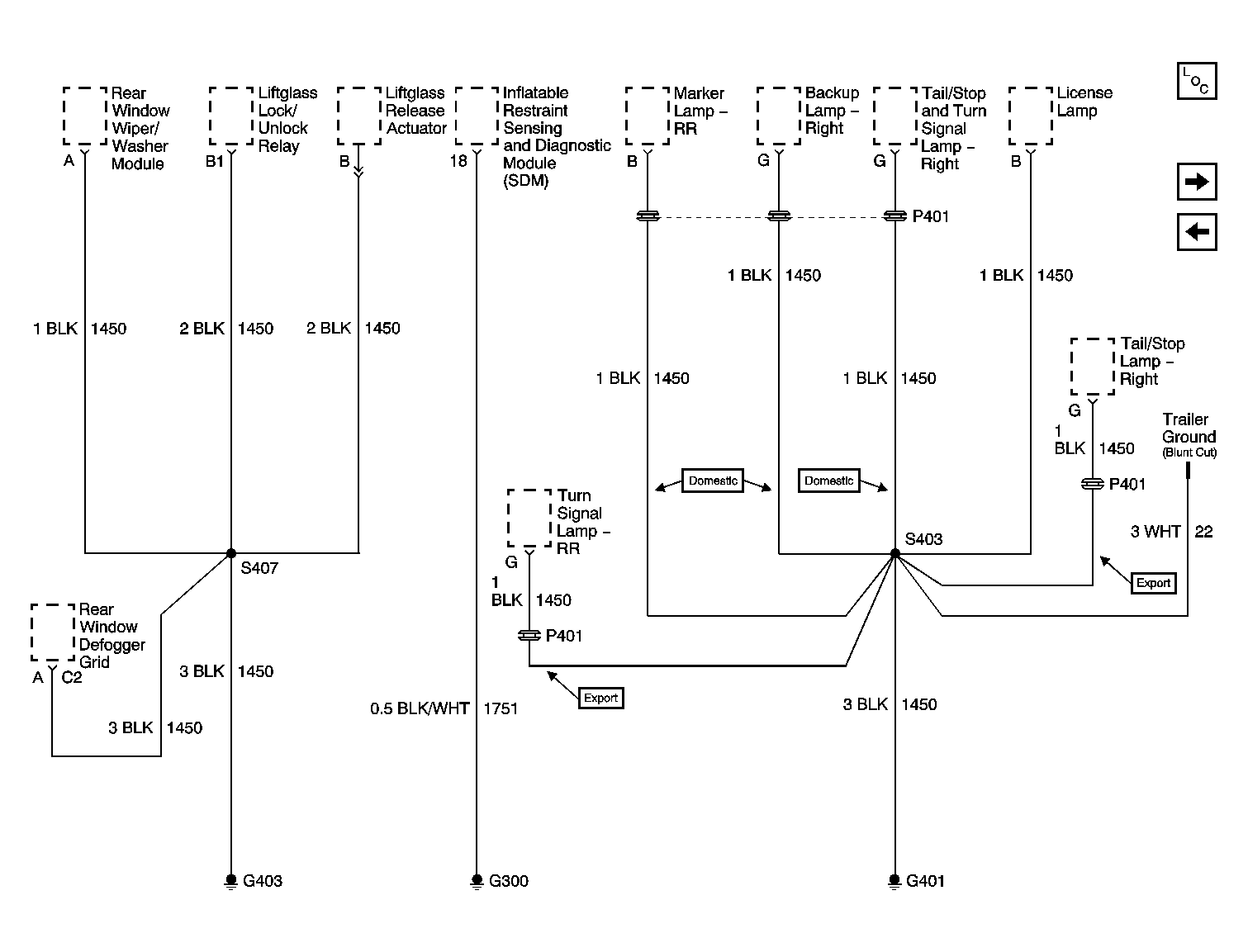

Fig 8: G300, G401, & G403 Schematic

Courtesy of GENERAL MOTORS CORP.

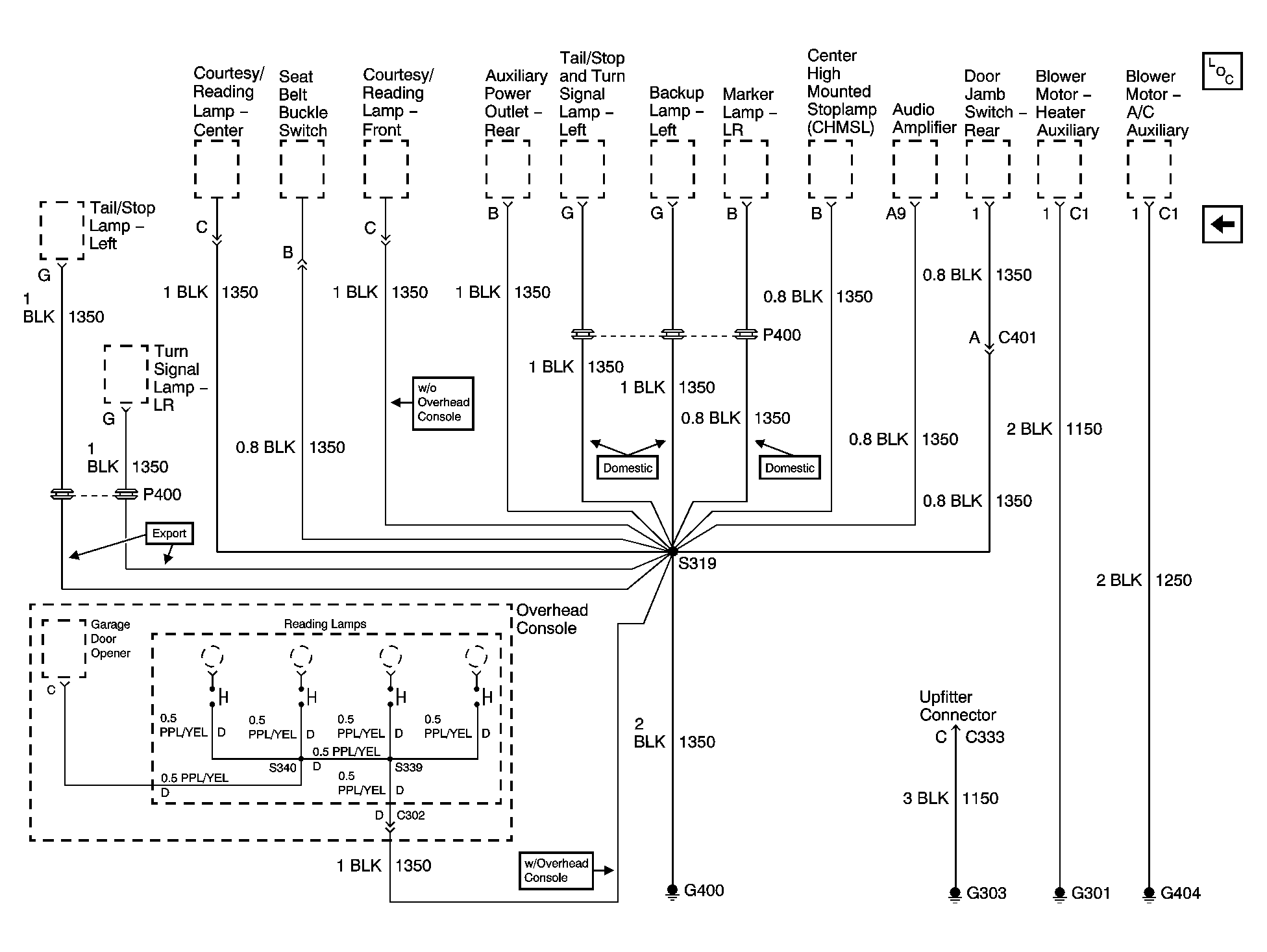

Fig 9: G301, G303, G400, & G404 Schematic

Courtesy of GENERAL MOTORS CORP.
