Instrument Cluster Schematics

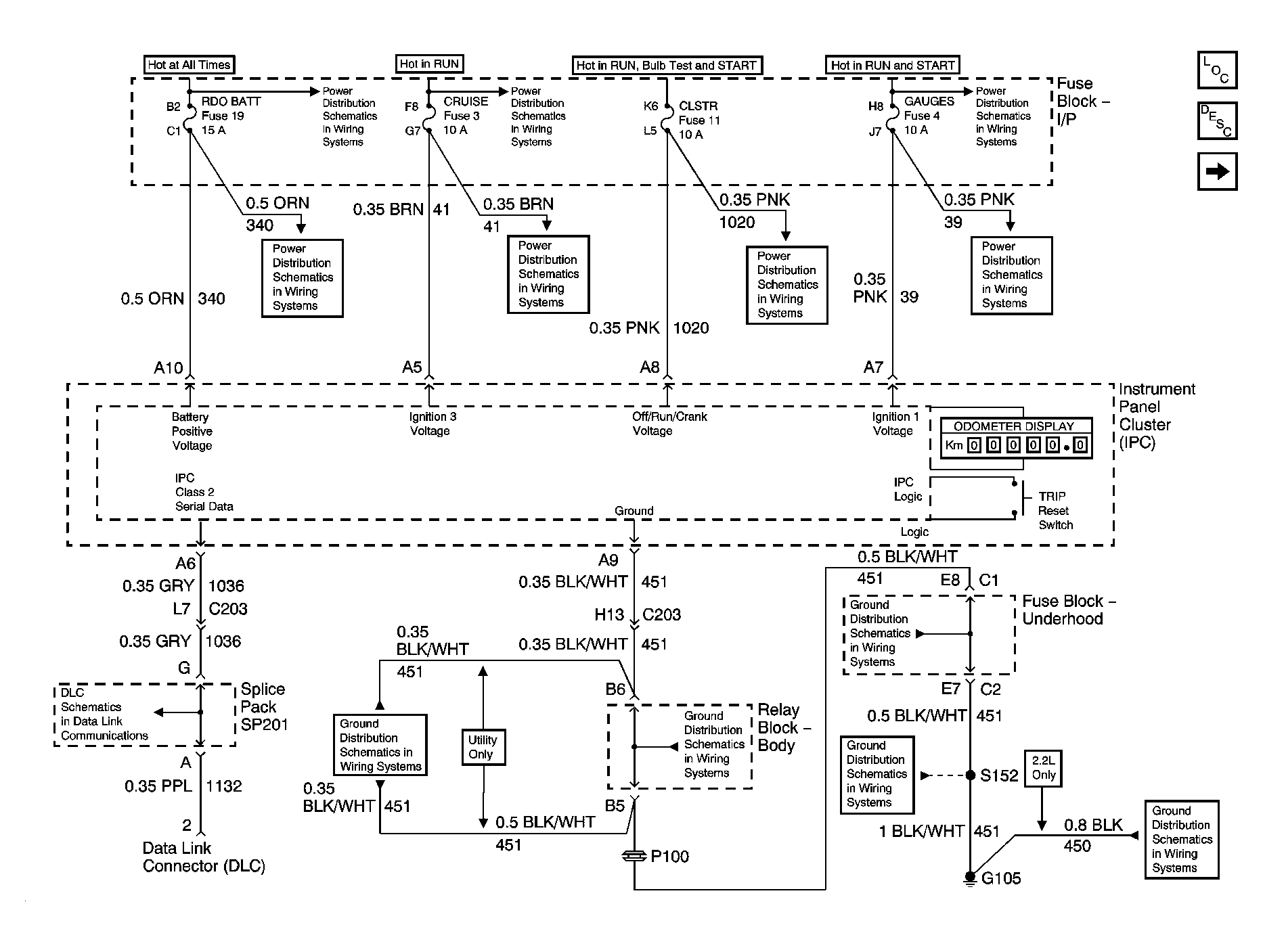

Fig 1: Power and Ground
GM880406Courtesy of GENERAL MOTORS CORP.

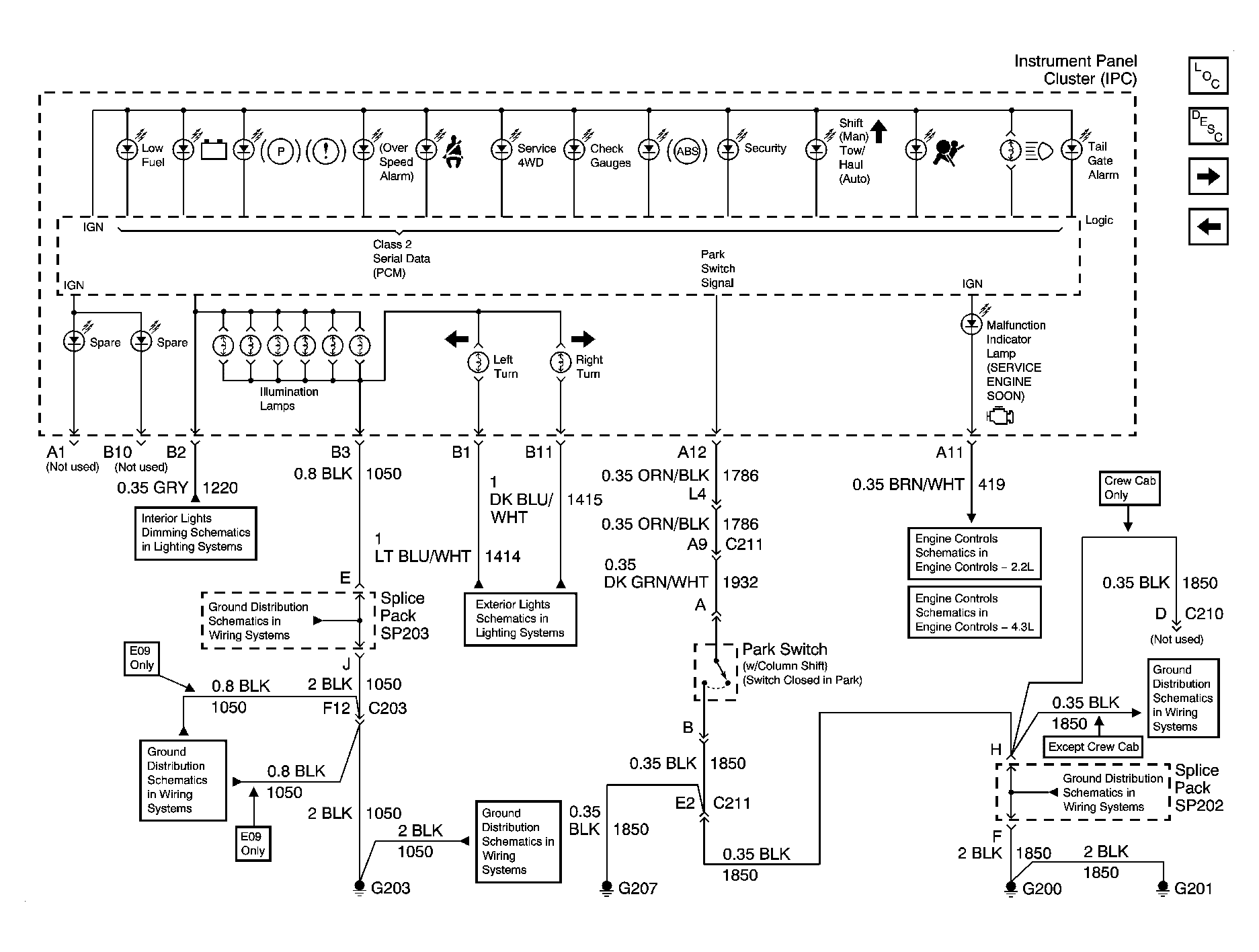

Fig 2: Indicators
GM887113Courtesy of GENERAL MOTORS CORP.

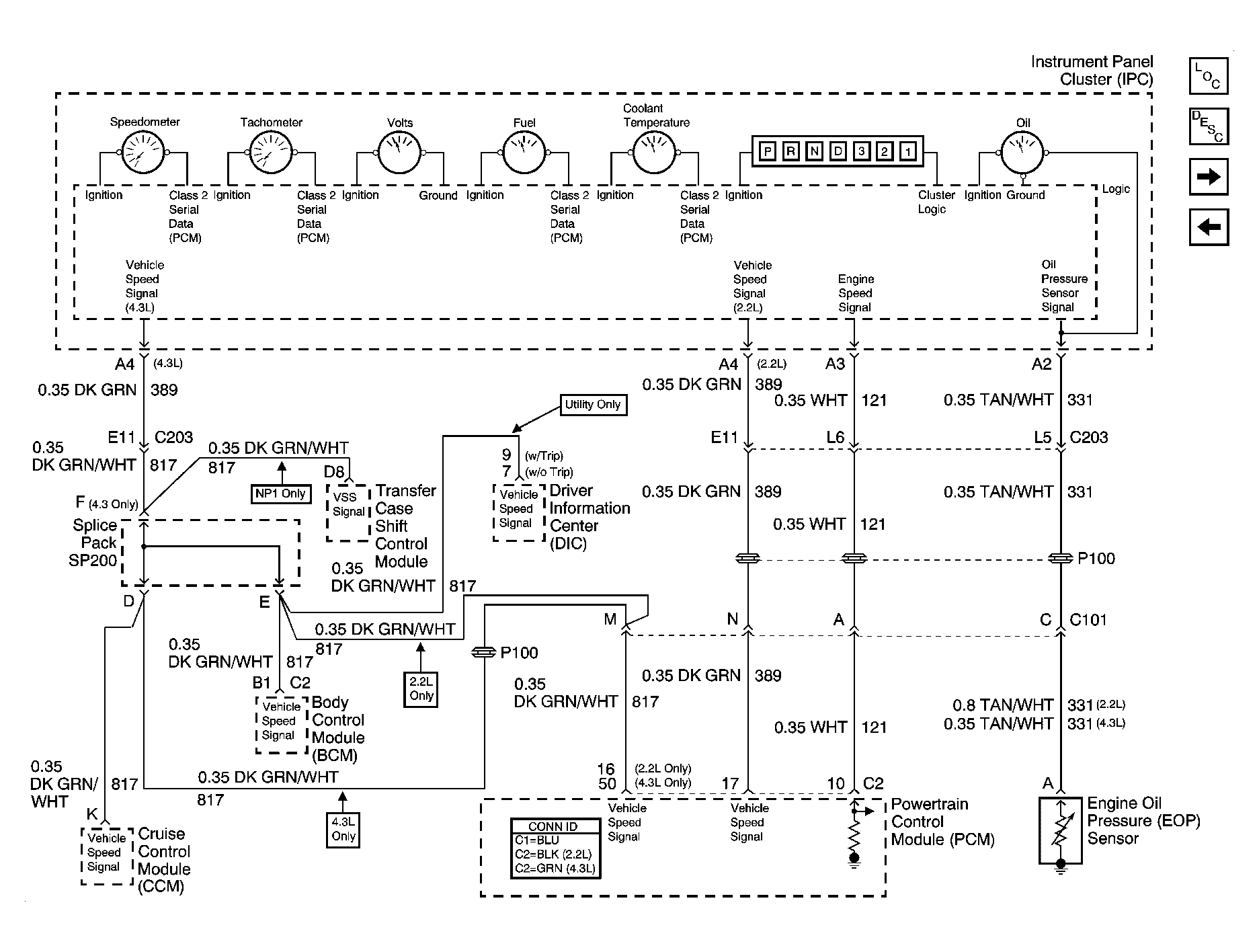

Fig 3: Gages
GM884312Courtesy of GENERAL MOTORS CORP.

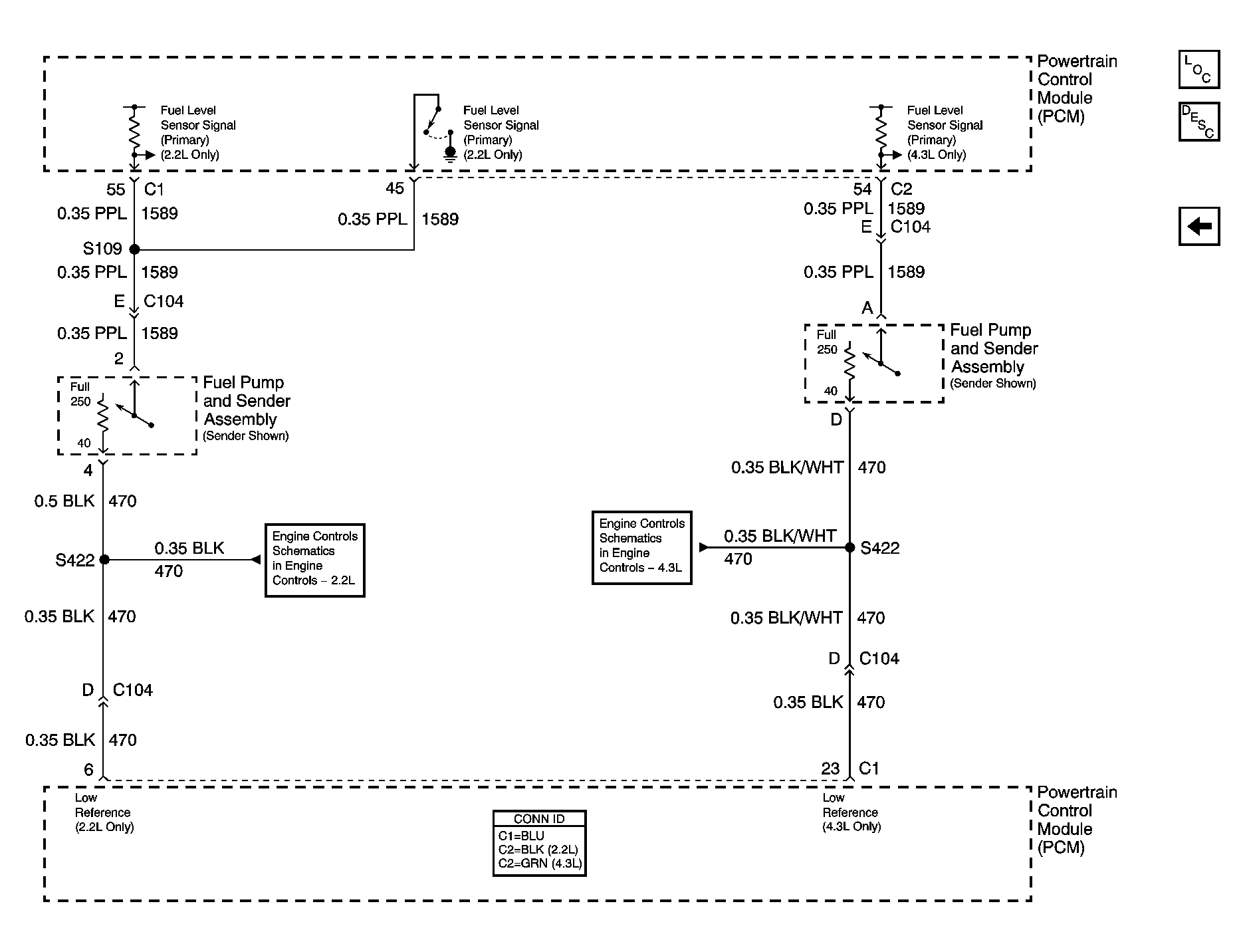

Fig 4: Fuel Level Sensor Signal
GM857705Courtesy of GENERAL MOTORS CORP.
