Radio/Audio System Schematics

Fig 1: Antenna, Grounds, Power, and References to DLC, Lighting, and OnStar

Courtesy of GENERAL MOTORS CORP.

Fig 2: Audio Amplifier

Courtesy of GENERAL MOTORS CORP.

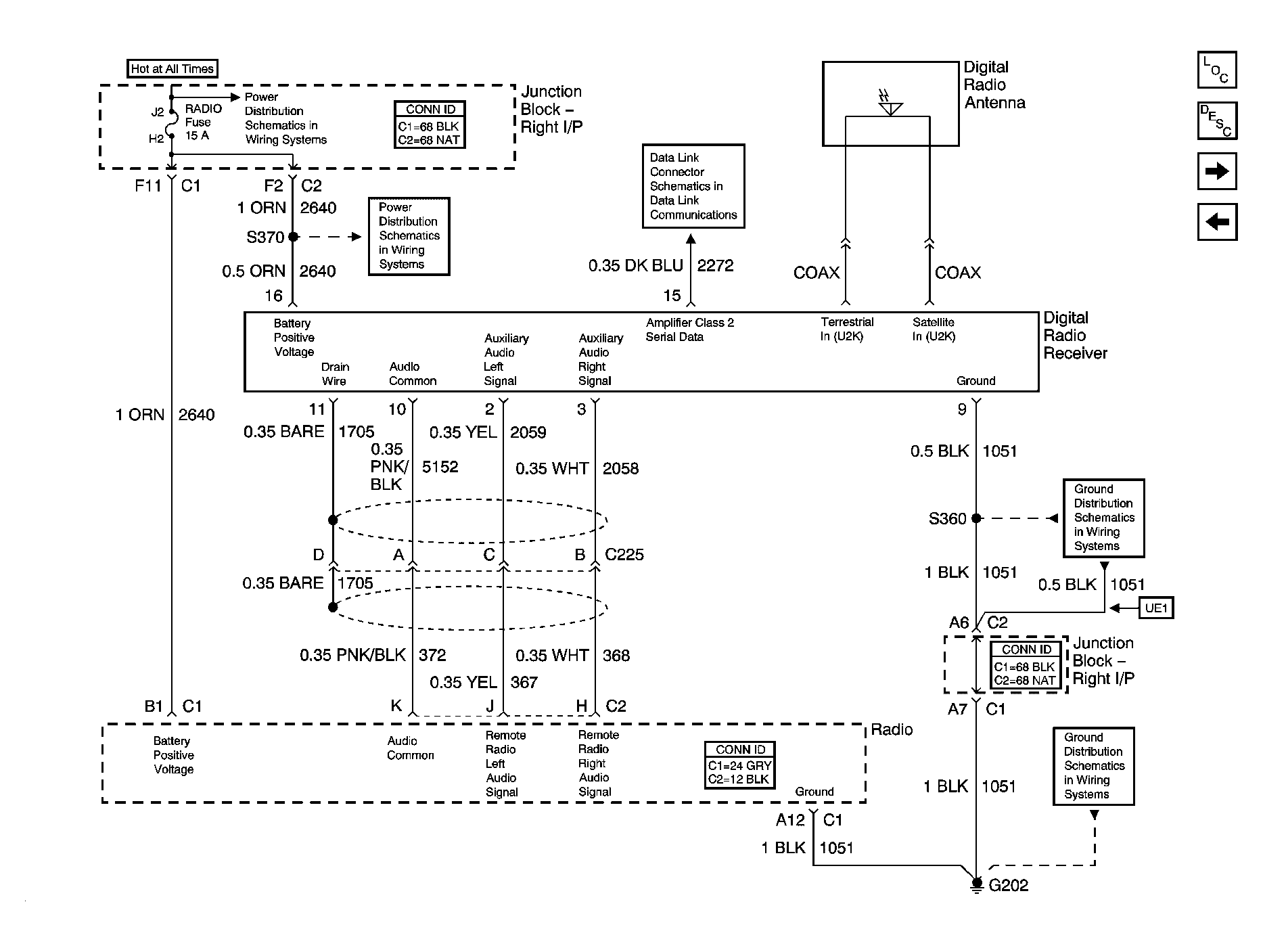

Fig 3: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Speakers (U62/UW6)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Speakers (WX7)

Courtesy of GENERAL MOTORS CORP.
