SIR Schematics

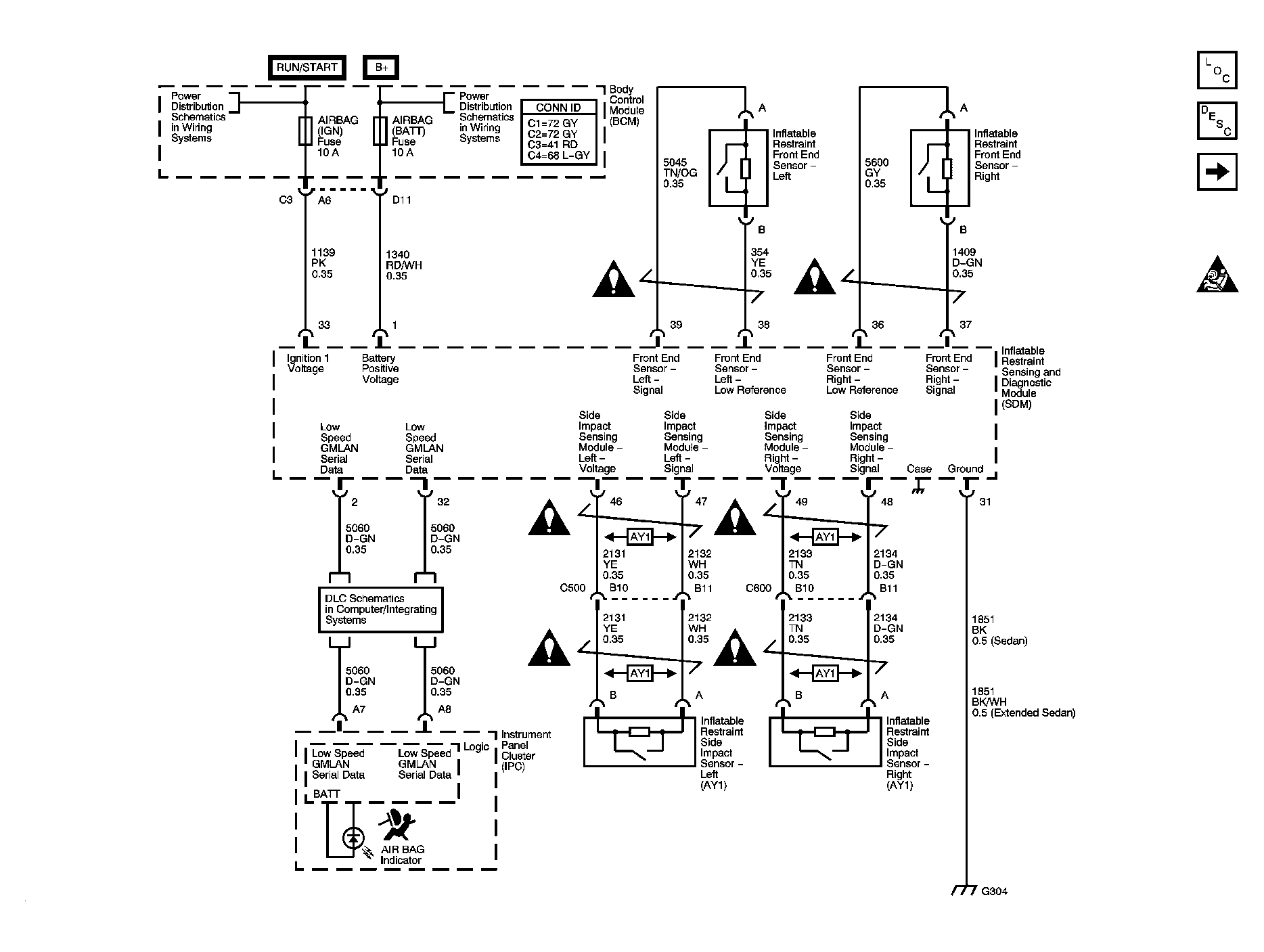

Fig 1: Power, Ground, and Sensors Schematic
GM1217882Courtesy of GENERAL MOTORS CORP.

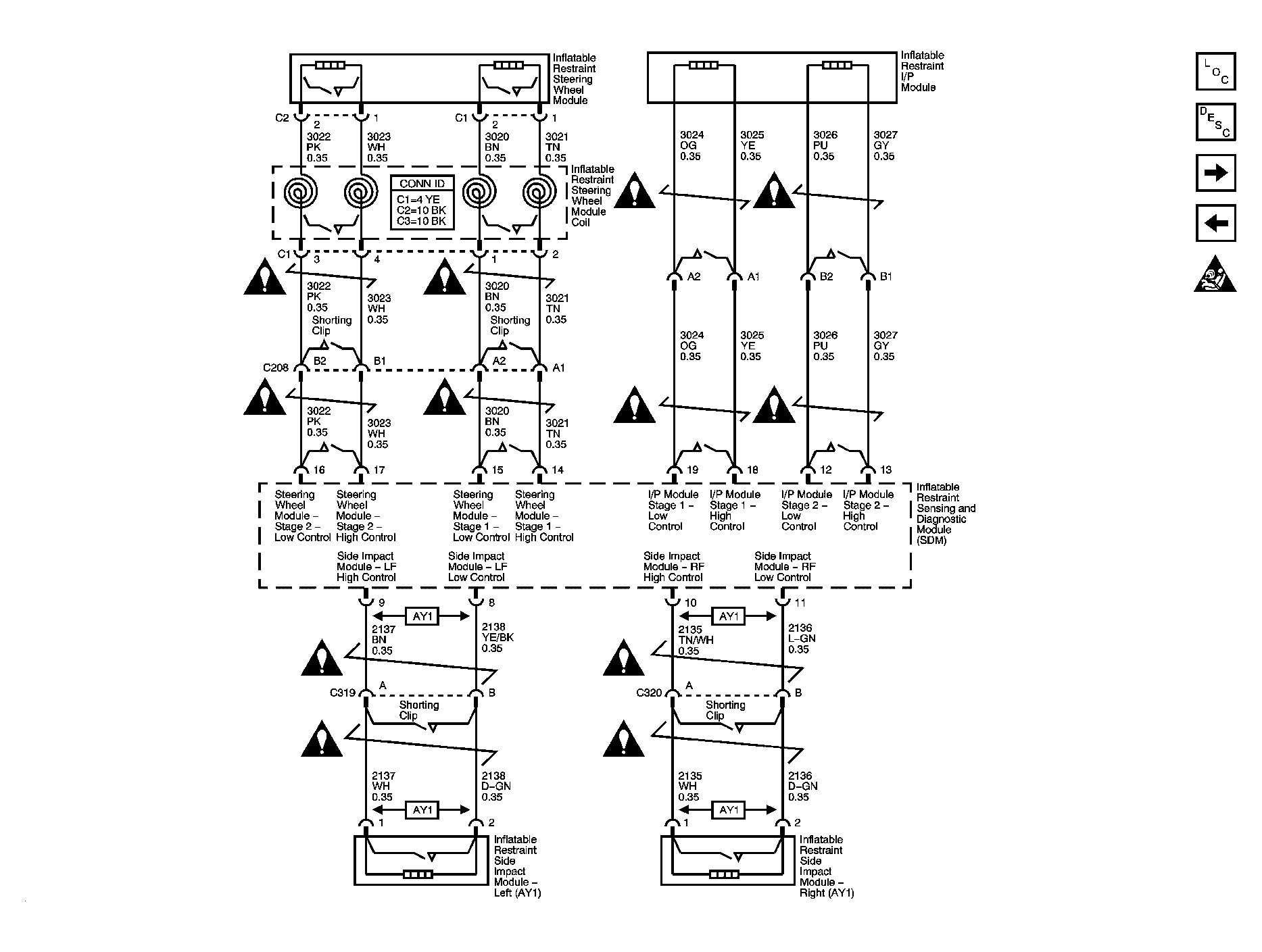

Fig 2: Impact Modules Schematic
GM1217885Courtesy of GENERAL MOTORS CORP.

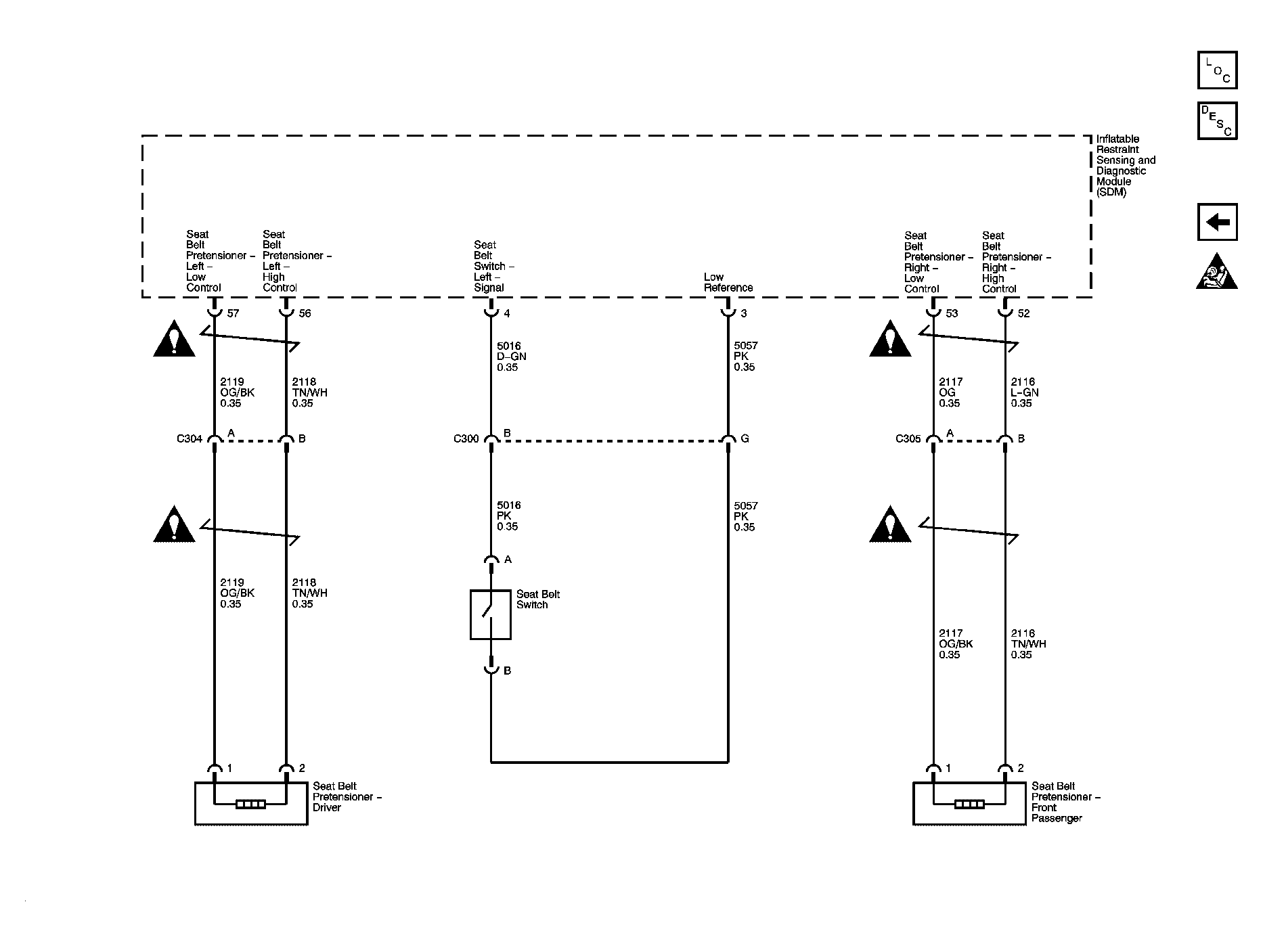

Fig 3: Seat Belt Pretensioners Schematic
GM1217886Courtesy of GENERAL MOTORS CORP.
