HVAC Schematics

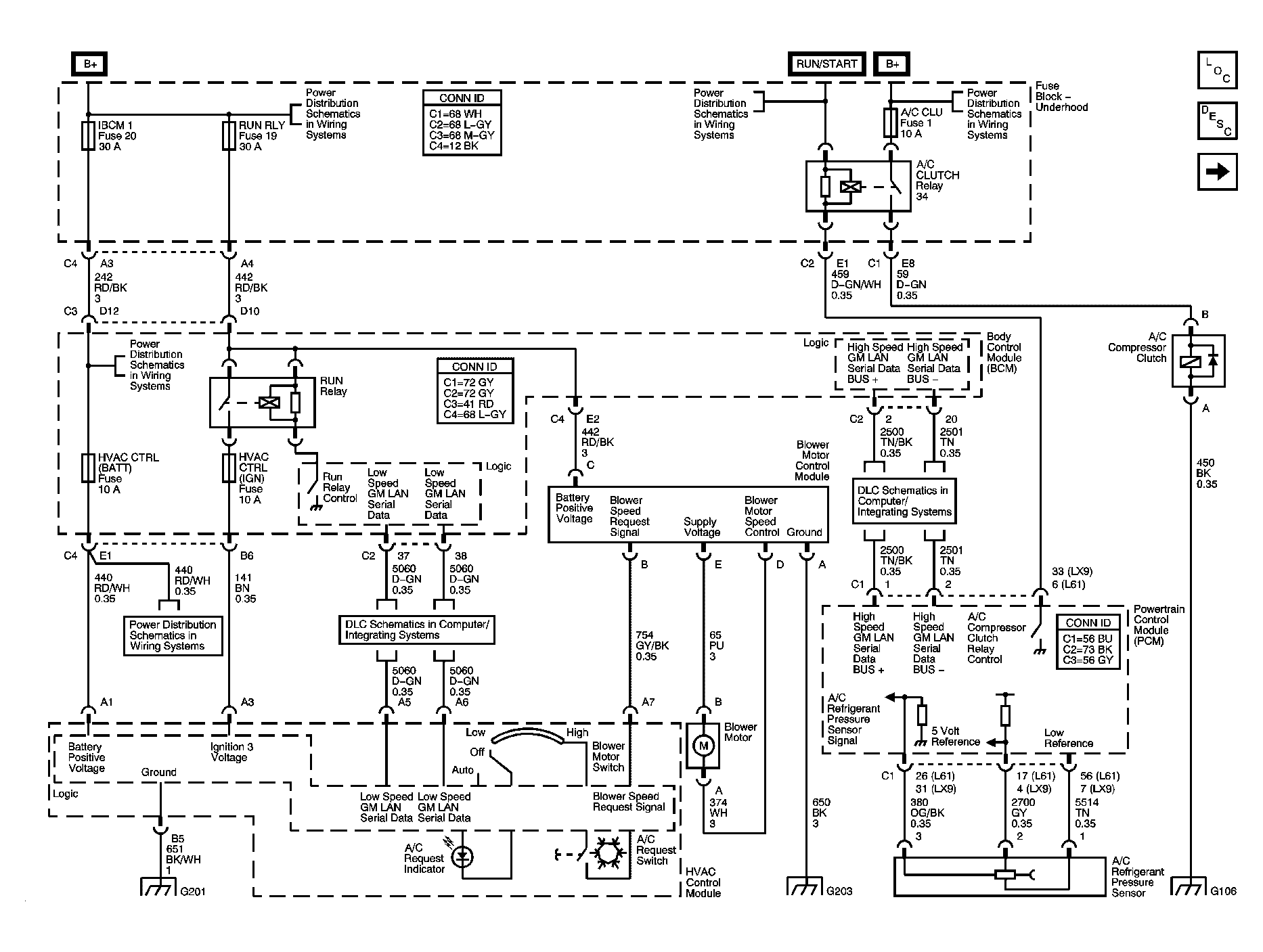

Fig 1: Power, Ground, A/C Compressor Clutch, and Blower Motor Controls Schematic
GM1217871Courtesy of GENERAL MOTORS CORP.

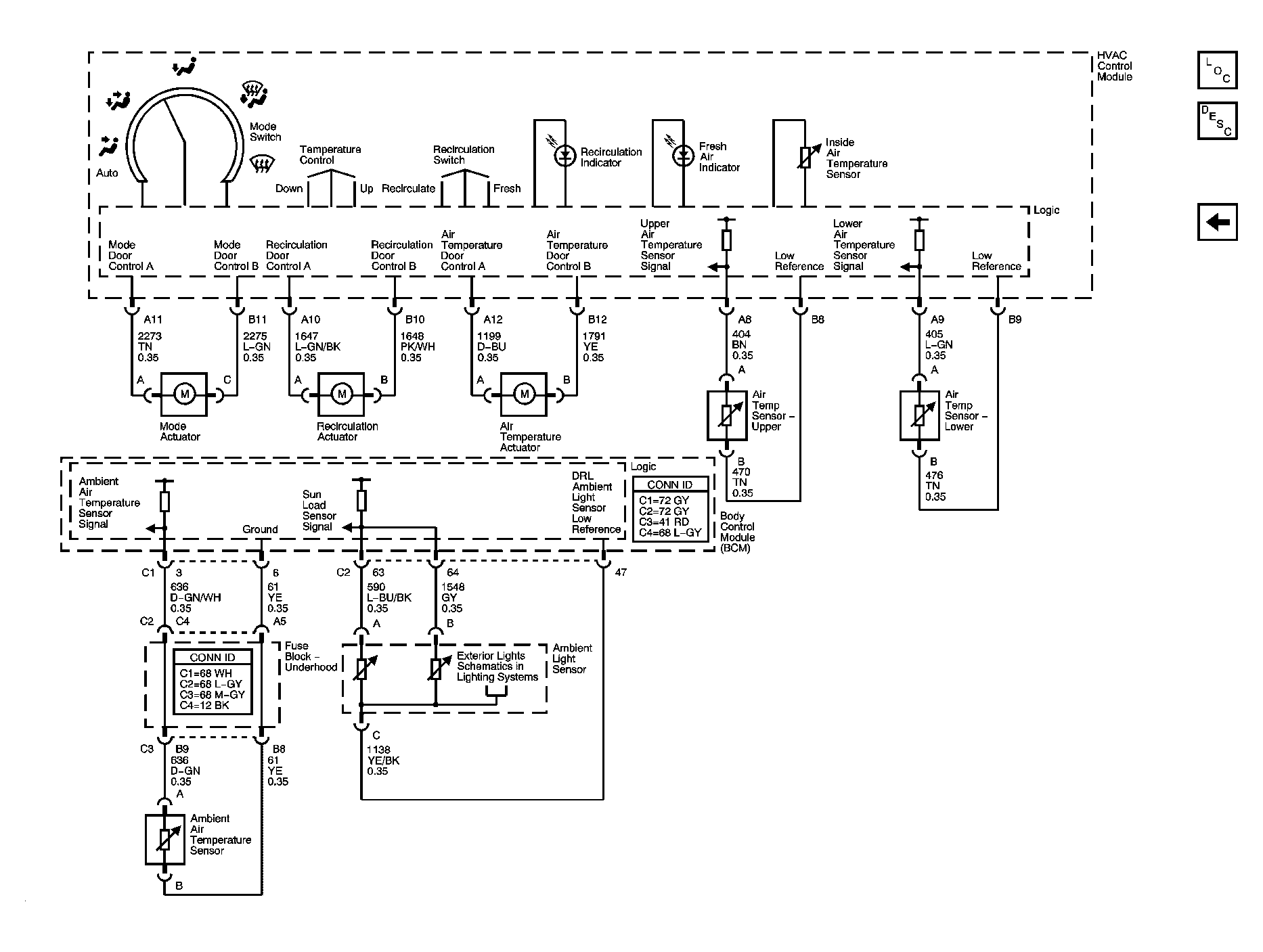

Fig 2: Mode and Air Temperature Controls Schematic
GM1217873Courtesy of GENERAL MOTORS CORP.
