Removal Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

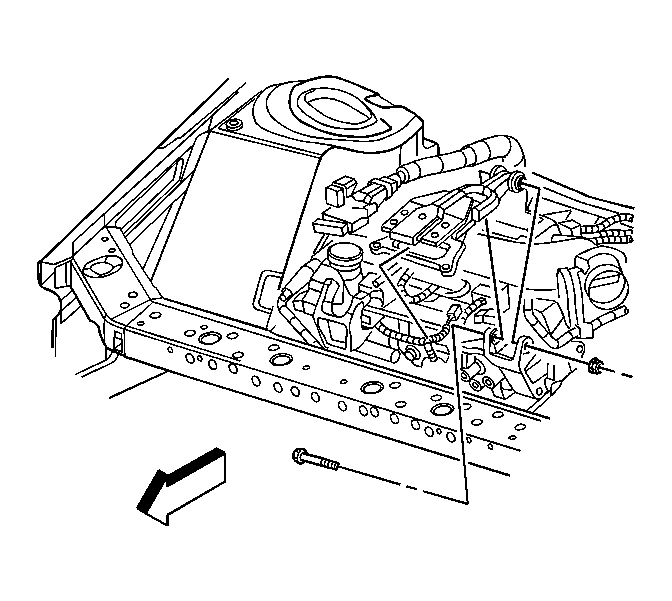

    Fig 1: Left Engine Mount Strut
    GM1574576Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt and the nut from the engine mount strut at the left engine mount strut bracket on the engine.
    2. Fig 2: View Of Bolt & Nut For Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    GM61850Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
