Installation Procedure

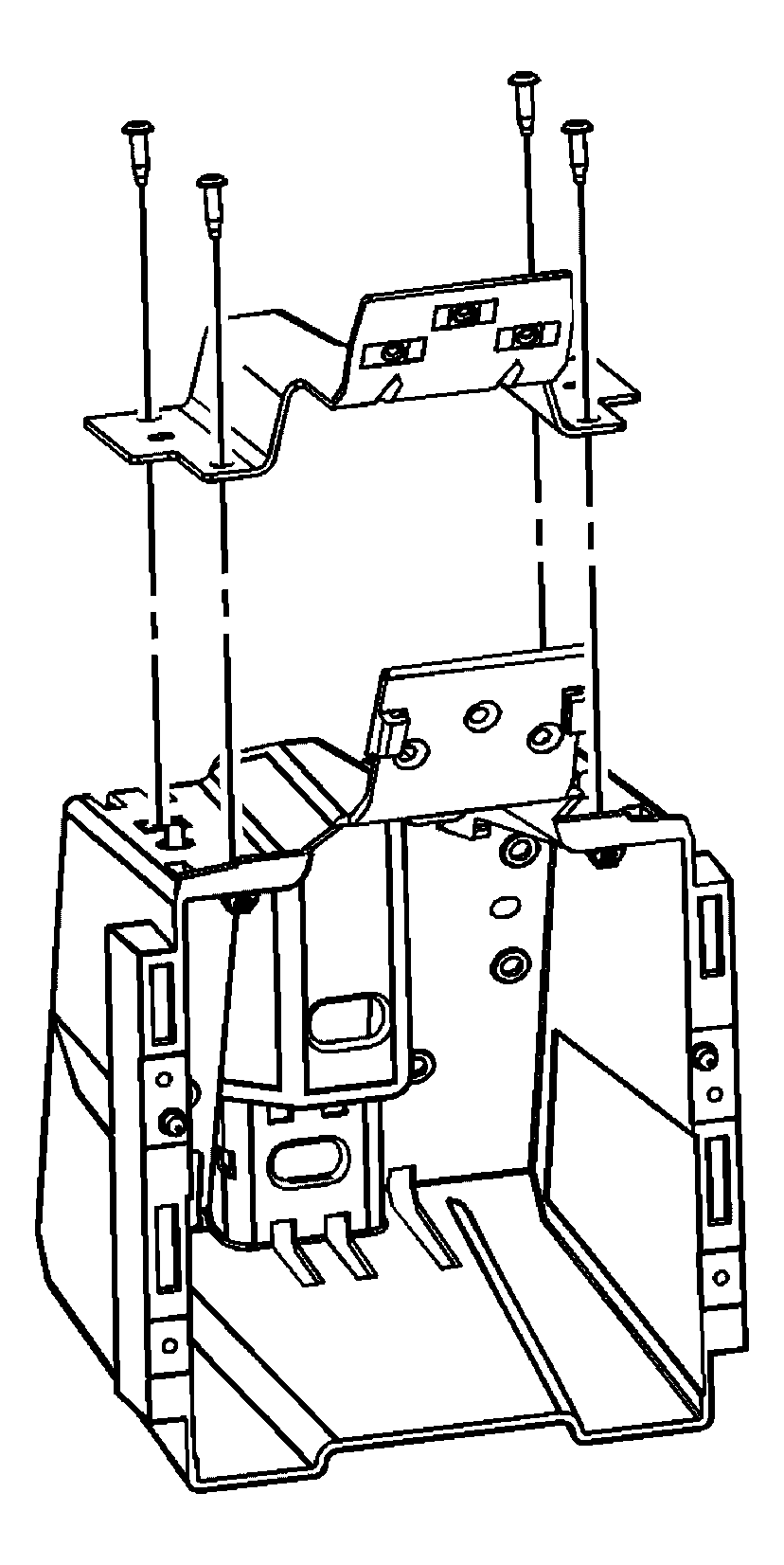

    Fig 1: View Of Console Bracket Reinforcement
    GM1207563Courtesy of GENERAL MOTORS CORP.
  1. Install the console bracket reinforcement.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the console bracket reinforcement screws.

    Tighten:  Tighten the screws to 1 N.m (10 lb in).

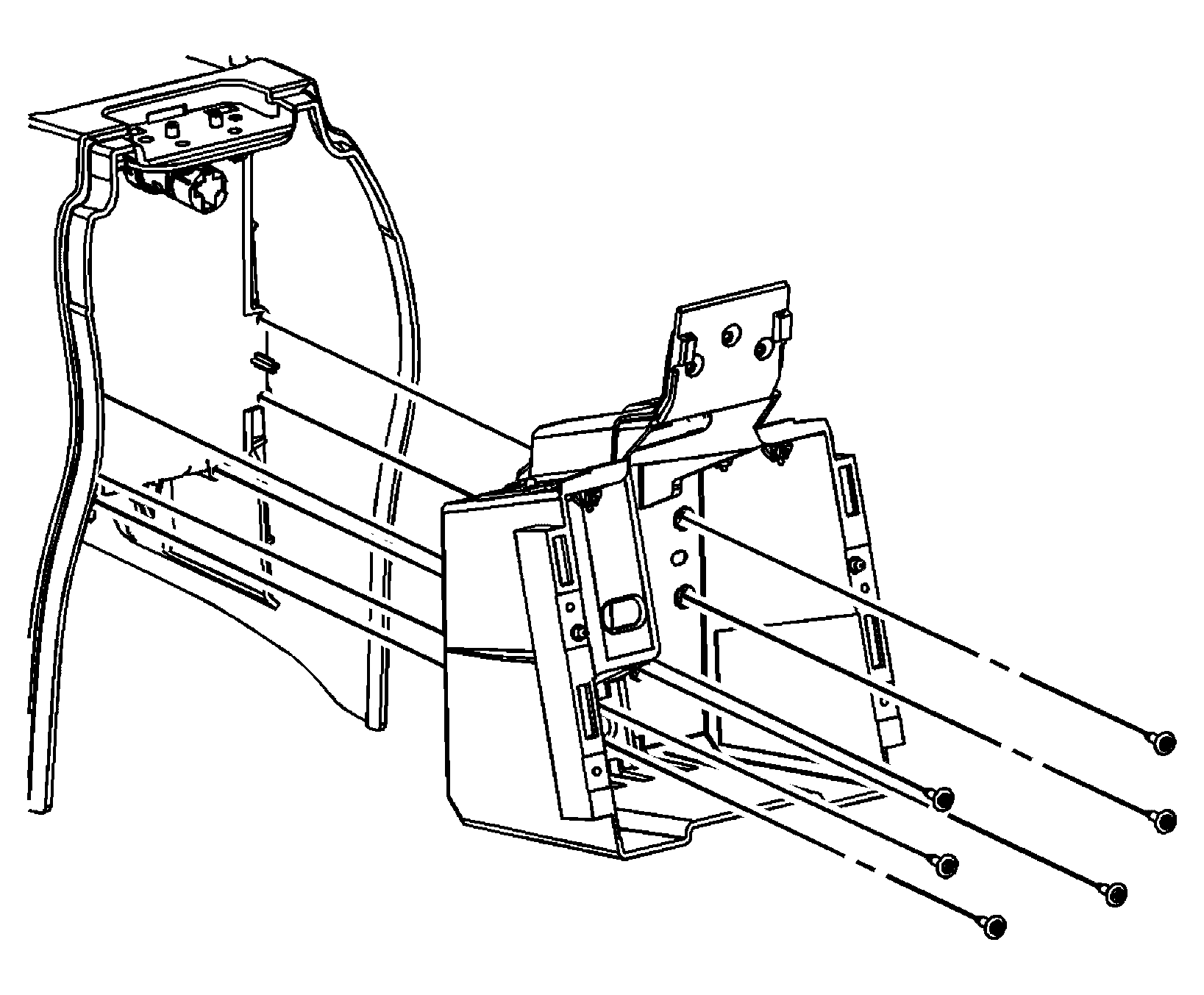

    3. Fig 2: View Of Console Bracket
    GM1208012Courtesy of GENERAL MOTORS CORP.
  3. Install the console bracket.
  4. Install the console bracket screws.

    Tighten:  Tighten the screws to 1 N.m (10 lb in).

  5. Install the DVD player. Refer to DVD Player Replacement in Entertainment.
  6. Install the console rear trim plate. Refer to Trim Plate Replacement - Console Rear (UK6)  and Trim Plate Replacement - Console Rear (U32) .
  7. Install the video display. Refer to Video Display Replacement in Entertainment.
