Installation Procedure

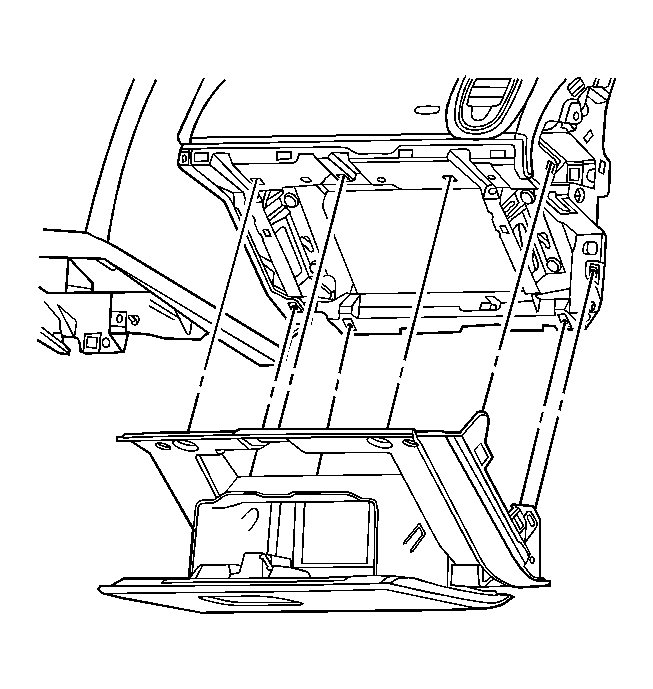

    Fig 1: View Of I/P Compartment Assembly
    GM1207618Courtesy of GENERAL MOTORS CORP.
  1. Install the I/P compartment assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the I/P compartment assembly screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  3. Close the I/P compartment door.
  4. Install the right closeout panel. Refer to Closeout/Insulator Panel Replacement - Right .
  5. Install the I/P right outer trim cover. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement .
