Instrument Cluster Schematics

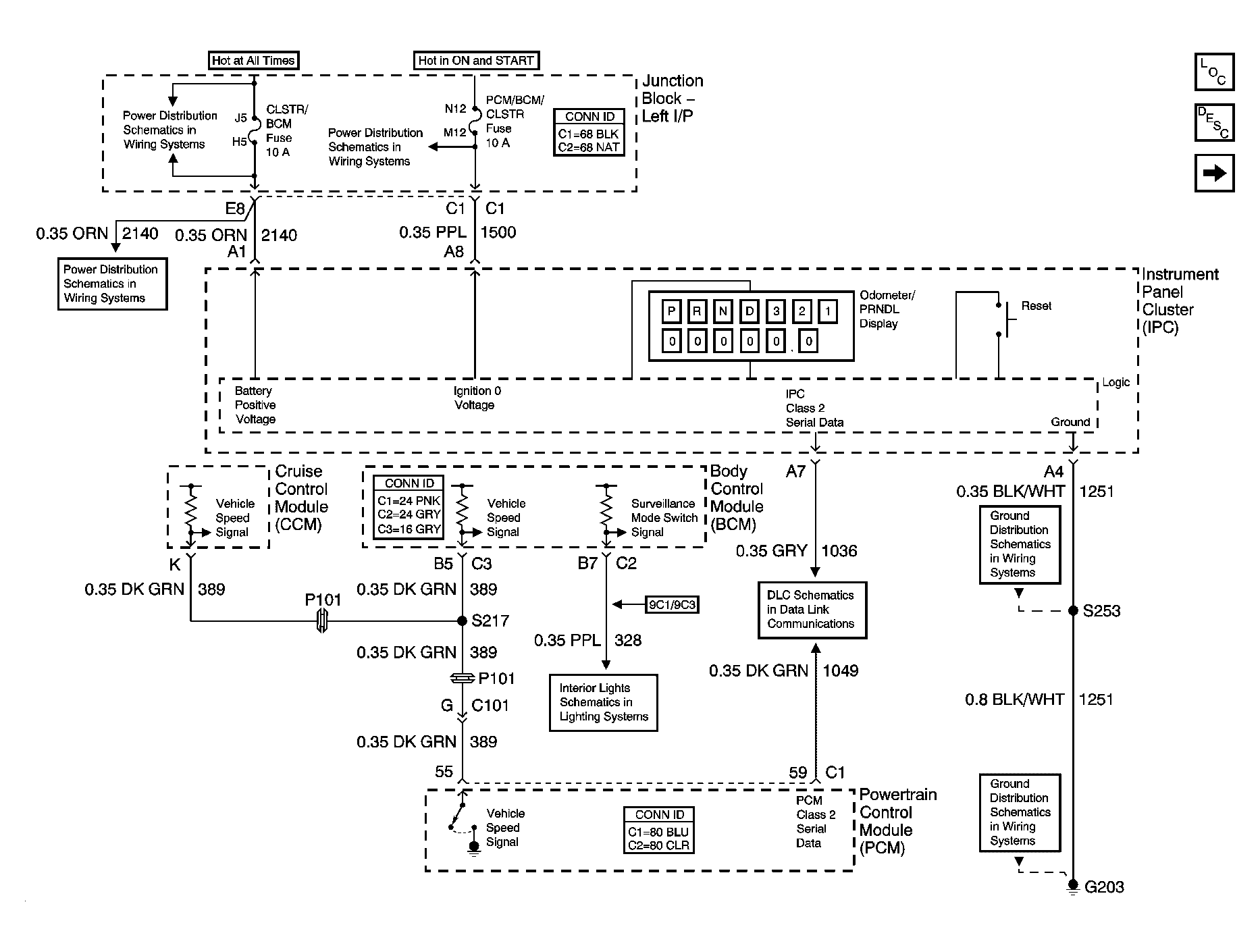

Fig 1: Ground, Odometer/PRNDL, Power, and VSS Schematic
GM1316290Courtesy of GENERAL MOTORS CORP.

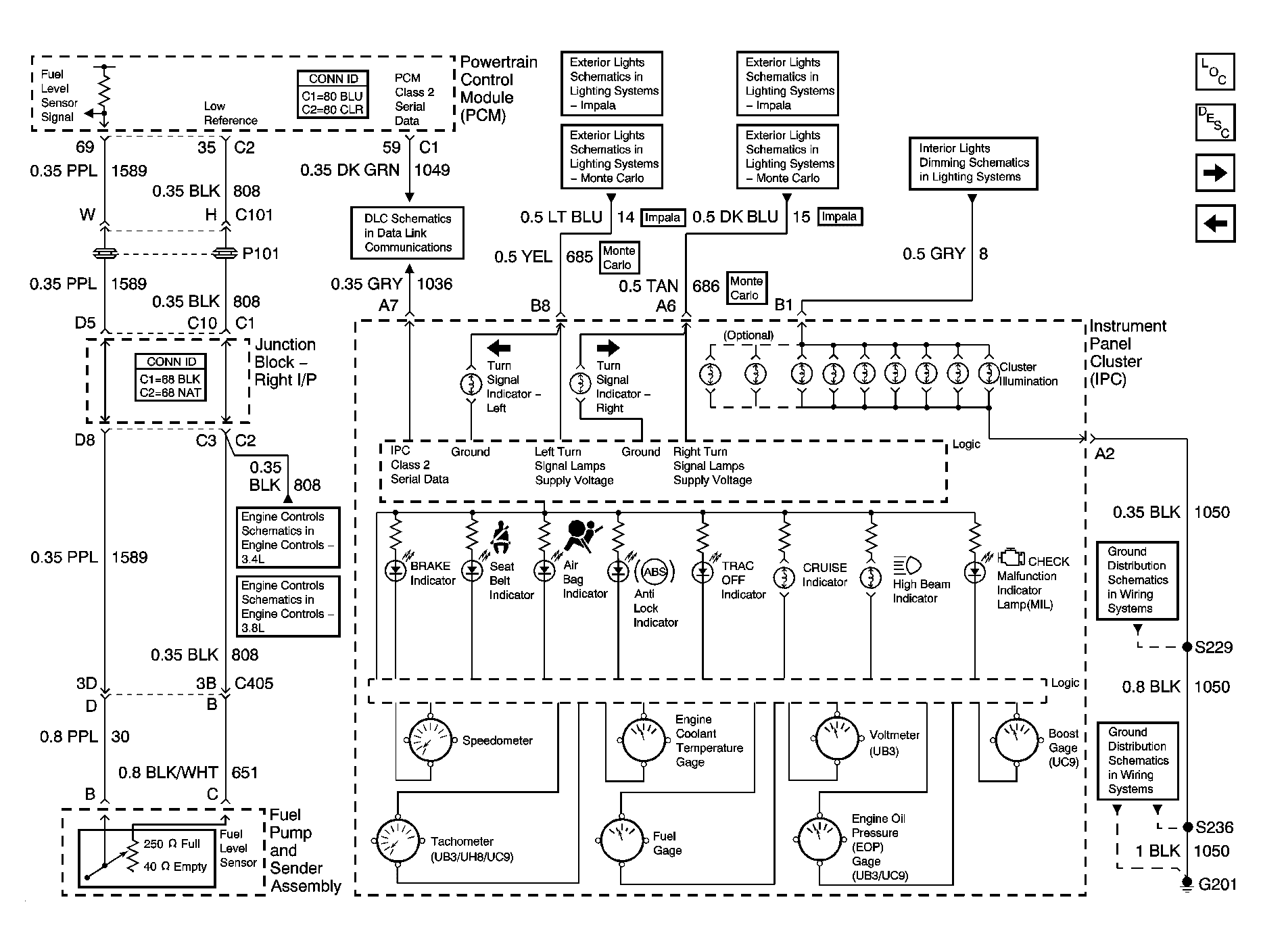

Fig 2: Gages, Illumination, and Indicators Schematic
GM1316286Courtesy of GENERAL MOTORS CORP.

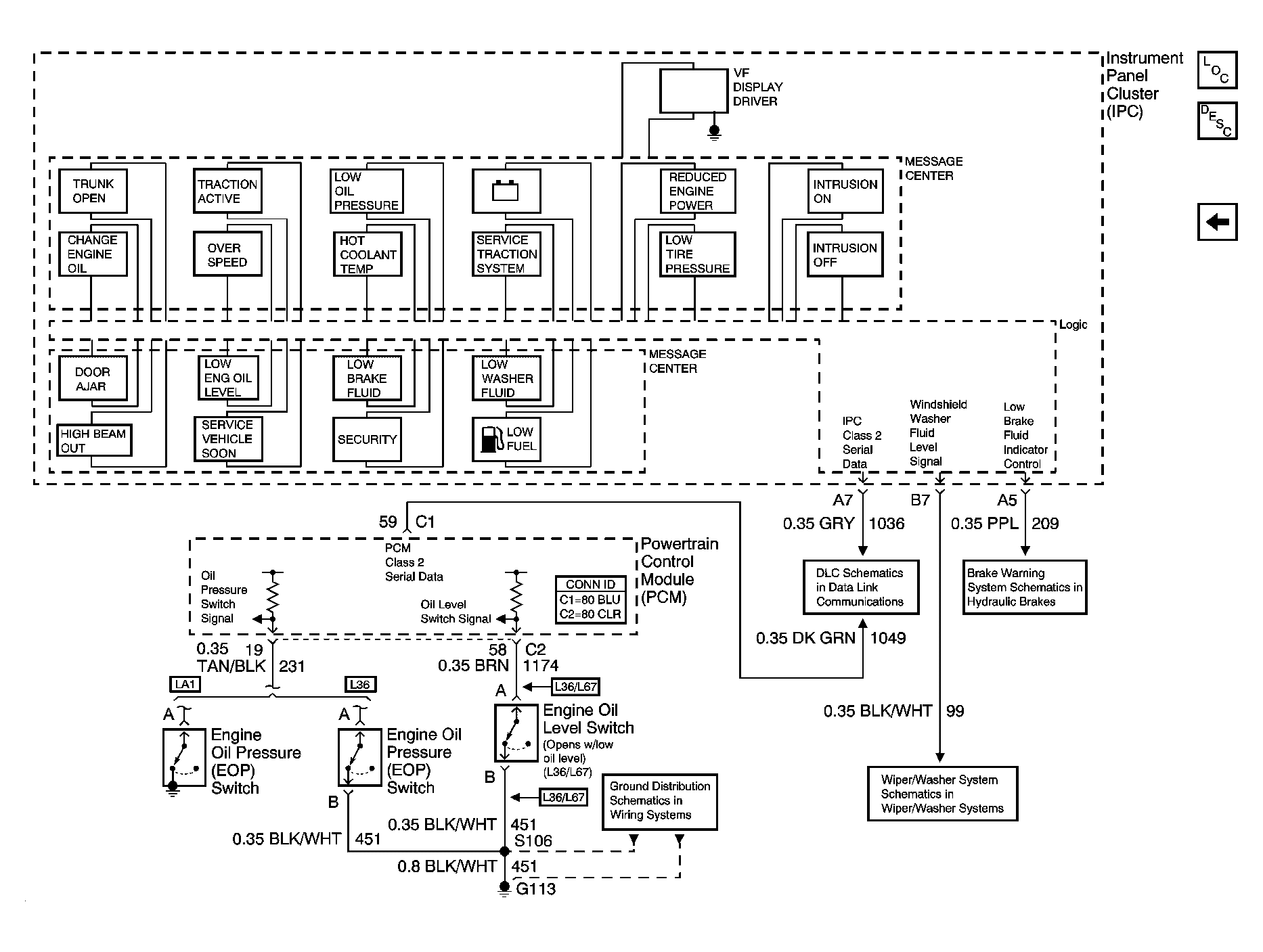

Fig 3: Message Center Schematic
GM1247006Courtesy of GENERAL MOTORS CORP.
