Instrument Cluster Schematics

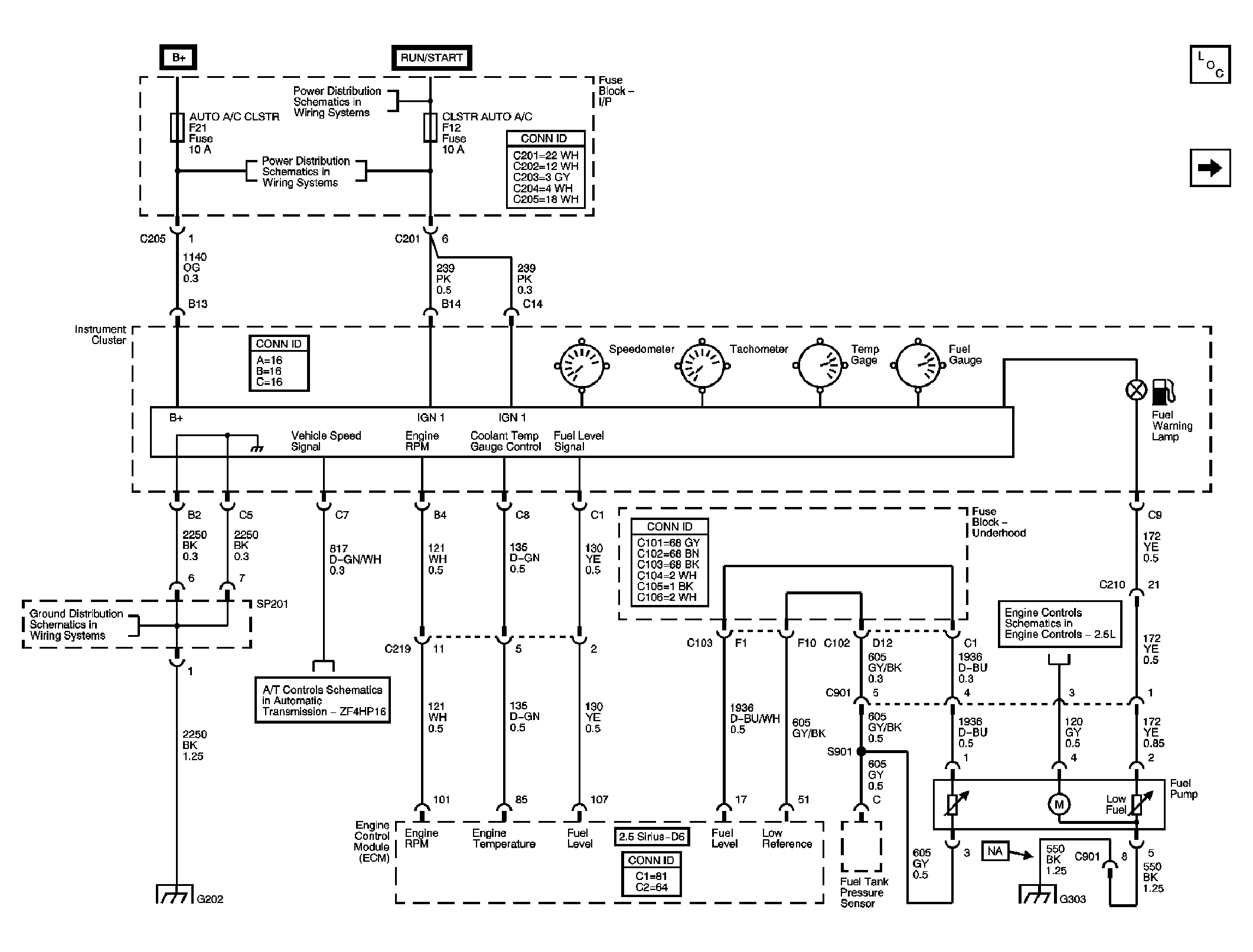

Fig 1: Power, Ground And Gages Schematic (2.5L Sirius D6)

Courtesy of GENERAL MOTORS CORP.

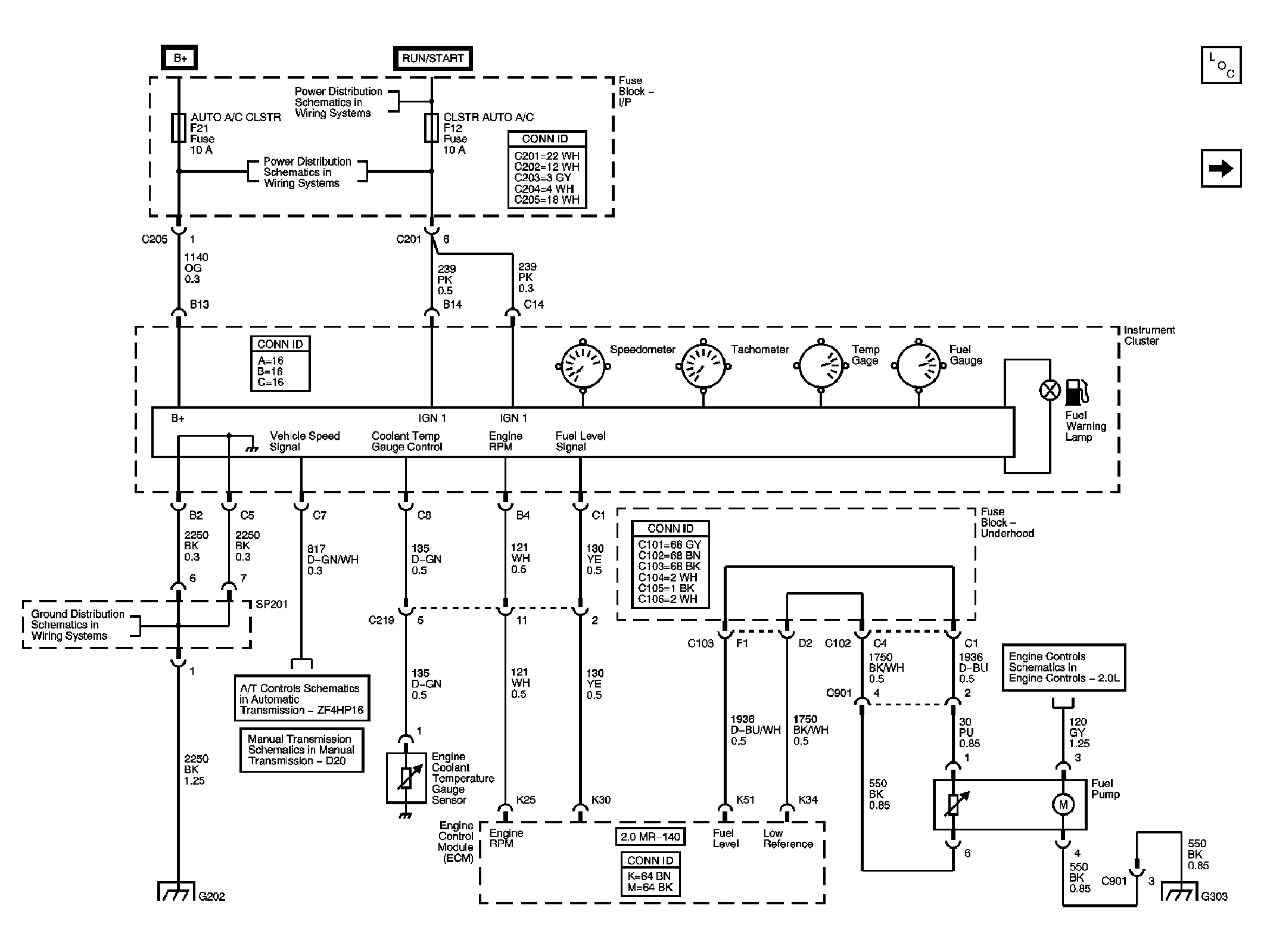

Fig 2: Power, Ground And Gages Schematic (2.0L MR-140)

Courtesy of GENERAL MOTORS CORP.

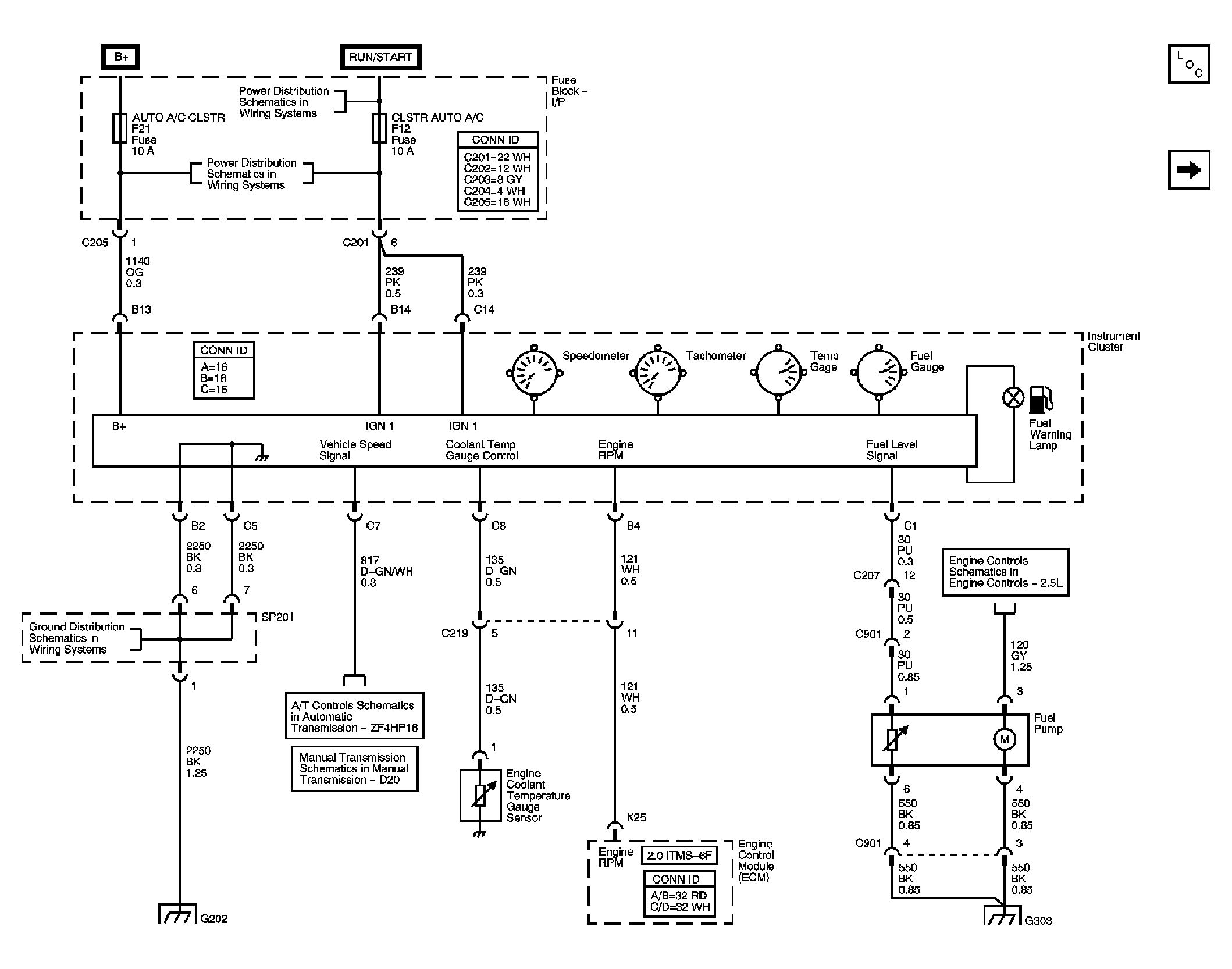

Fig 3: Power, Ground And Gages Schematic (2.0L ITMS-6F)

Courtesy of GENERAL MOTORS CORP.

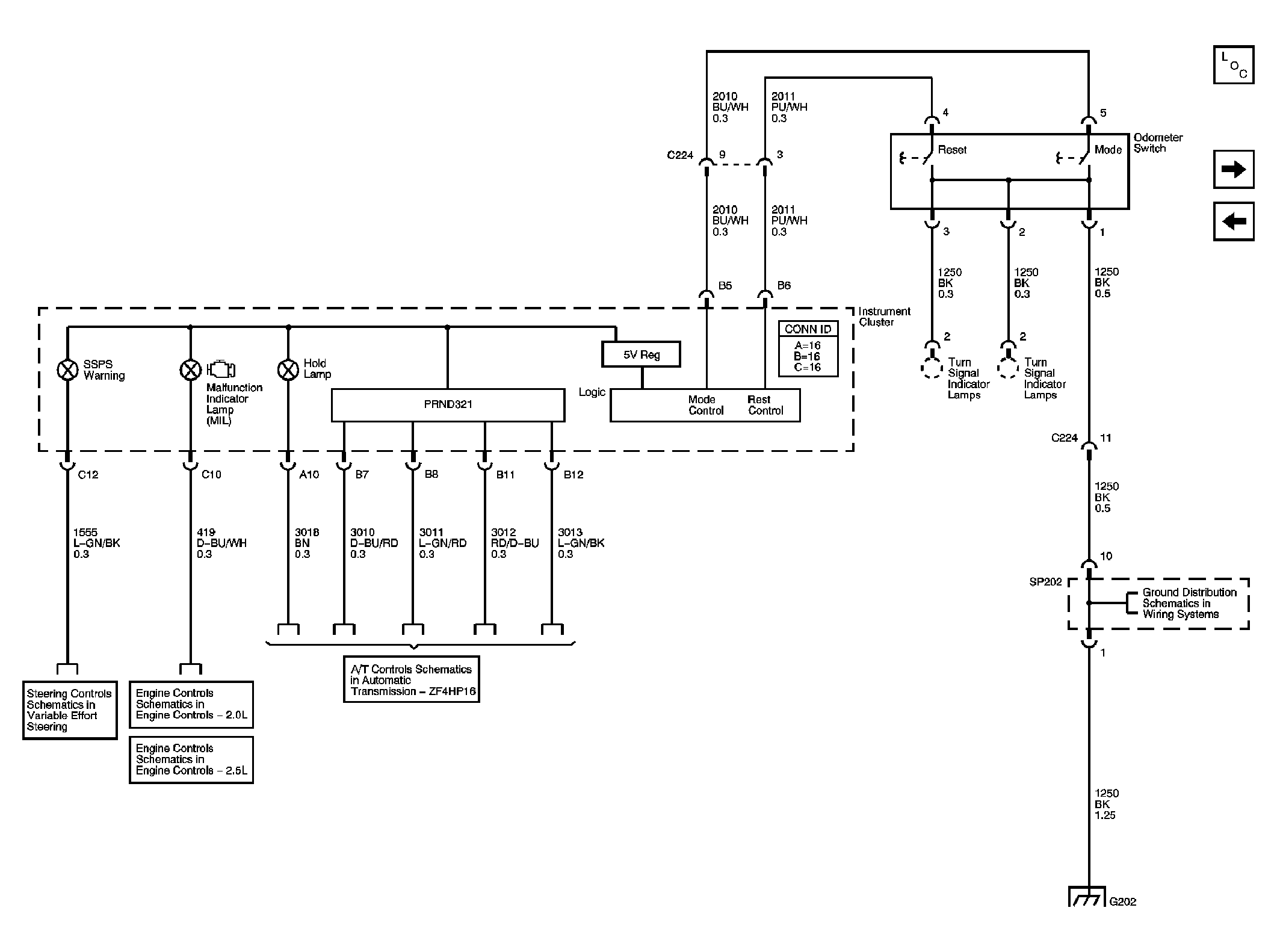

Fig 4: Malfunction Indicator Lamp (MIL), Speed Sensitive Schematic

Courtesy of GENERAL MOTORS CORP.

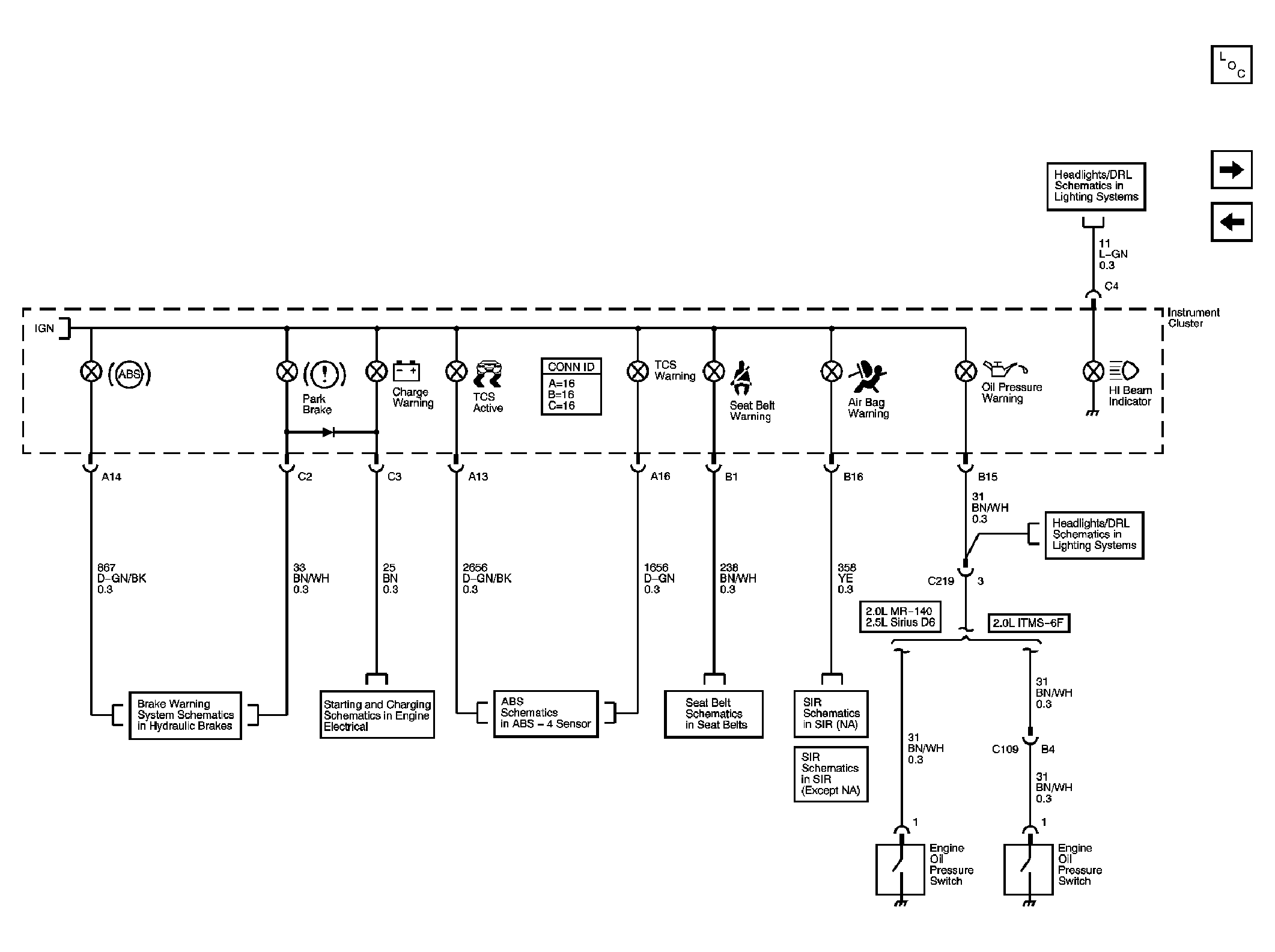

Fig 5: Warning Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

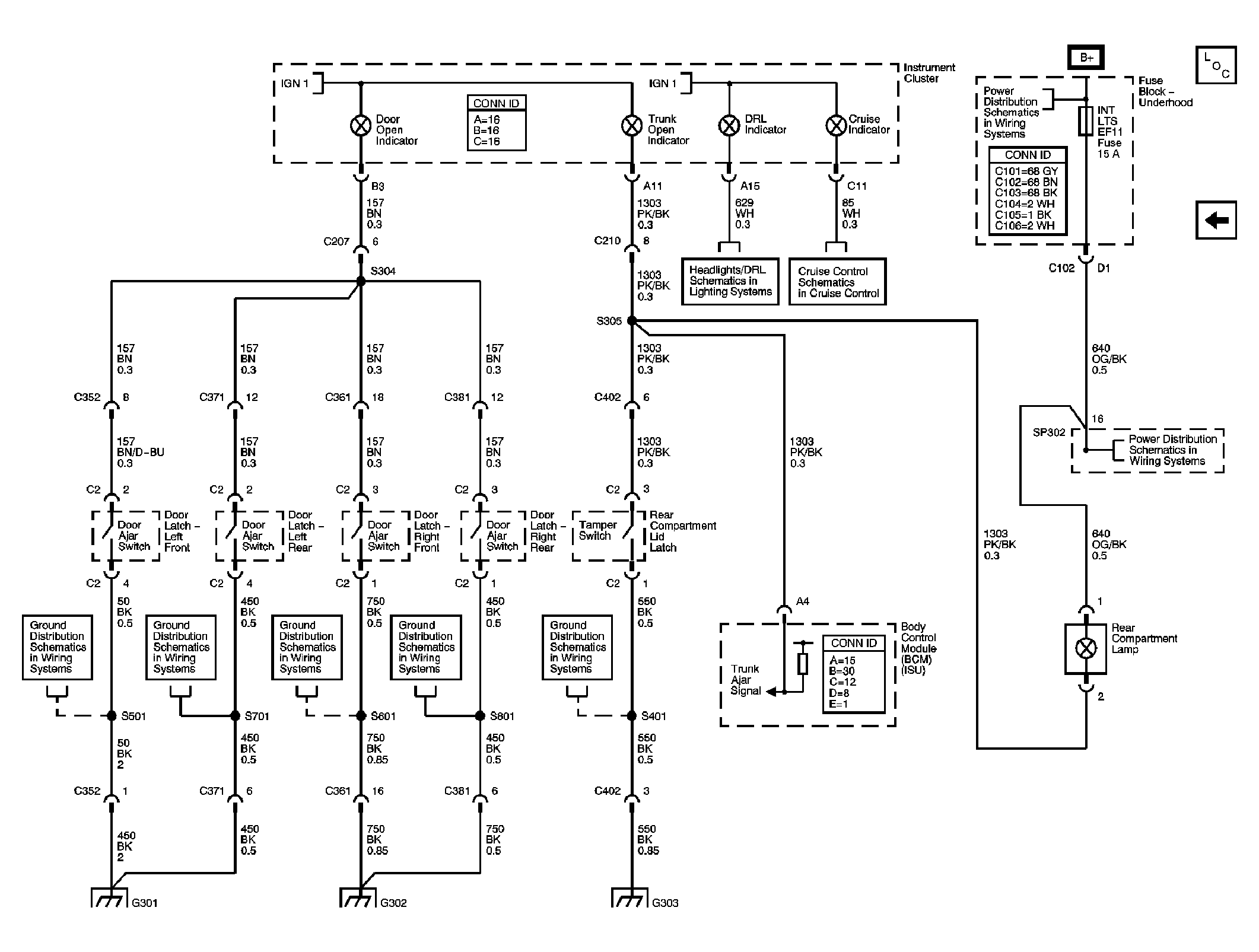

Fig 6: Door Open/Trunk Open Indicator Schematic

Courtesy of GENERAL MOTORS CORP.
